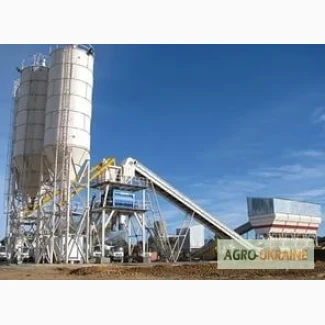

Concrete plant SUMAB T-80 m3/h, Stationary, Sweden, Kyiv

Main advantages of Stationary concrete plant of Shvedskoy kompanii Sumab, T-80:

Concrete plants have established themselves as reliable and high-quality equipment for the production of any type of concrete and concrete mixtures, ensuring the high quality of the concrete produced.

Compact transportation of the plant saves the client's money.

Installation of a concrete plant is possible on any site.

Special painting is a guarantee of the plant's durability.

The concrete plant is capable of producing more than 100 grades of concrete with a recipe change for each subsequent batch.

Automatic plant management, computer SIEMENS (GERMANY)

TECHNICAL CHARACTERISTICS AND COMPONENTS OF THE SUMAB T-80 CONCRETE PLANT:

Quick-cast concrete plant 80-100 m3 / h.
The structure is made of stainless galvanized steel.

Sumab T-80 is a quick-mix concrete plant that is ideal for construction companies and (or) building materials production companies that want to get not only high plant productivity, but, first of all, a high quality level of concrete produced.

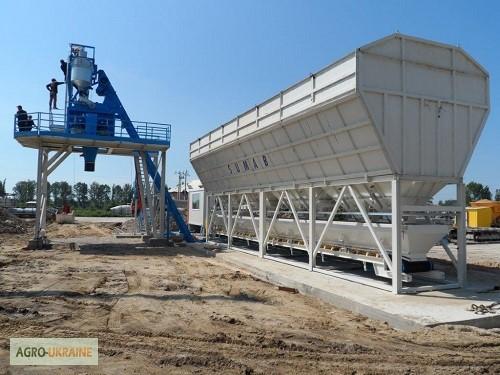

6 components of inert materials. Each bunker is 20 m.
Dosing system 1500\300 kg weighing sensors. The inert materials supply conveyor is located under warehouses and has dimensions of 11,000 mm in length and 800 mm in width. Supply of inert due to the opening of pneumatic valves of inert compounds.

The total volume of inert with additional sides is more than 180 m3. Humidity determination devices are installed.

Skip system.
Inert materials are delivered from storage warehouses to Skip 3000 liters.

Two-wave horizontal mixer MR 3000/2000 liters.
The system of arrangement of the blades allows covering all parts of the mixer, thereby ensuring high quality concrete that meets international standards. At the client's request, a hydraulic system for concrete sampling during mixing can be installed. The mixer is installed on a special platform on supports of 5 meters. Convenient access to the mixer allows maintenance and service. The security system automatically registers and sends signals to the computer in all non-standard situations (falling into the interior of non-standard objects, when trying to open the mixer during operation (there is a special viewing window for inspection), in the event of an interruption of electricity, water or cement supply.

At the request of the client, a planetary mixer can be supplied.(//tractor-service.com)

Cement collection capacity.
A cement container of 0.5 m3, 800 kg is placed above the mixer.

Water supply.
At the concrete plant, a calibrated water supply system of 600 liters/min is installed. Water is used from the central city system with a pressure of 5 liters per second. At the client's request, a water purification and recycling system can be installed.

Stationary computer Siemens.
RS allows automated control of all concrete preparation processes.

Produce more than 1000 concrete recipes. A Windows desktop computer is installed at the request of the Client. It has multiple security systems. At the client's request, video surveillance systems can also be installed. Surveillance cameras showing everything on a computer monitor.

Insulated office cabin with computer and electrical panel. Dimensions 4 x 215 x 2.25 m.

At the request of the client, an air conditioner or a heater can be installed.

Pump of chemical additives, 3 pcs.

Selectors 200 kg. 3 vibrators were installed at inert and cement silo warehouses.

Block of automatic control.

The board shows all the processes of preparing and unloading concrete.

The security system signals all non-standard and emergency situations. Siemens fuses are installed on all units and control units.

Thanks to the use of European technologies, our equipment has a high level of durability and reliability.
Delivery of the equipment is carried out exactly on time.
More than 20 years of reliable partnership.
The equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with various capacities and components were delivered.

To receive a commercial offer, please send an application to our email address.
