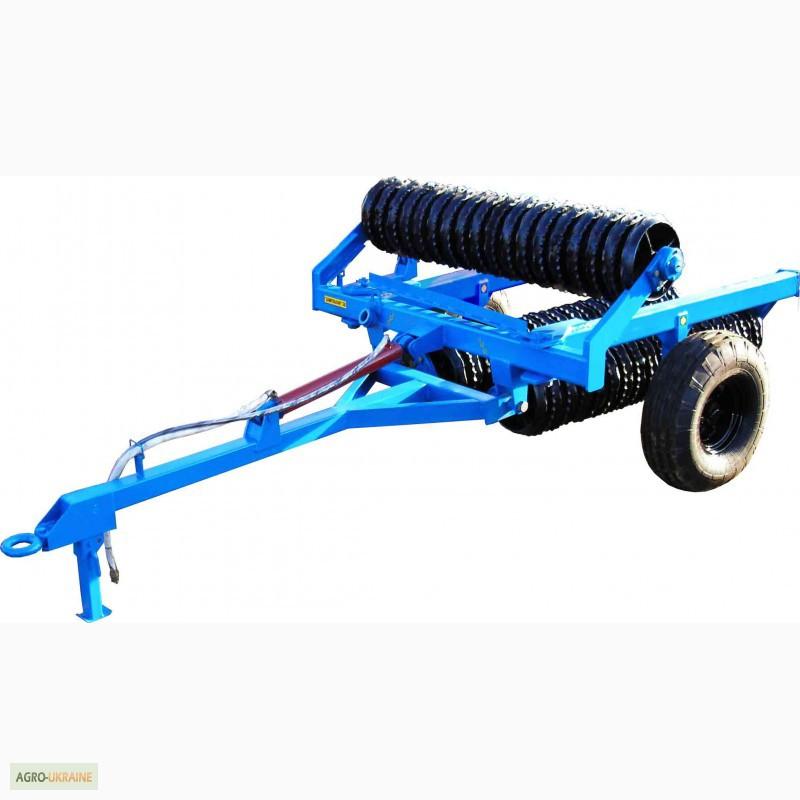

Cog-and-ring rink KZK-6-01, Dnipropetrovsk region.

Rinks KZK-6-01 are intended for pre-sowing and post-sowing soil rolling, grinding of the surface soil crust and partial leveling of the plowed field. The roller works at a humidity of 12-25%, the hardness of the soil in the treated layer is from 0.25 to 0.6 MPa. The frame is made of a square fully stretched tube.
Distinguishing features:
- due to its own transportwheels allows you to quickly move from field to field and over considerable distances;
- reliable bearing units.
Technical characteristics of the skating rink KZK-6-01

KZK-6-01
It is aggregated with tractors of traction class 1.4
Semi-trailer type
Gripping width, m 6
Productivity, ha/time 3.54
Working speed, km/h 6 - 10
Transport speed, km/h 20(//tractor-service.com)
The outer diameter of the ring, mm:
wedge-shaped 460
toothed 470
Dimensions in working condition, m:
length 3.58
width 6.00
height 0.97
Overall dimensions in transport condition, m:
length 4.93
width 2.32
height 1.57
Average service life, years, not less than 7
Total mass, kg 2740
