Gear-ring rink KZK-GOLTA 6, Dnipropetrovsk region.

Gear-ring rink KZK-GOLTA 6 - New!!!

The rollers have passed field tests, are certified, patented, and successfully work in the fields both as a separate machine and in a hitch with disc harrows,seeders andcultivators.

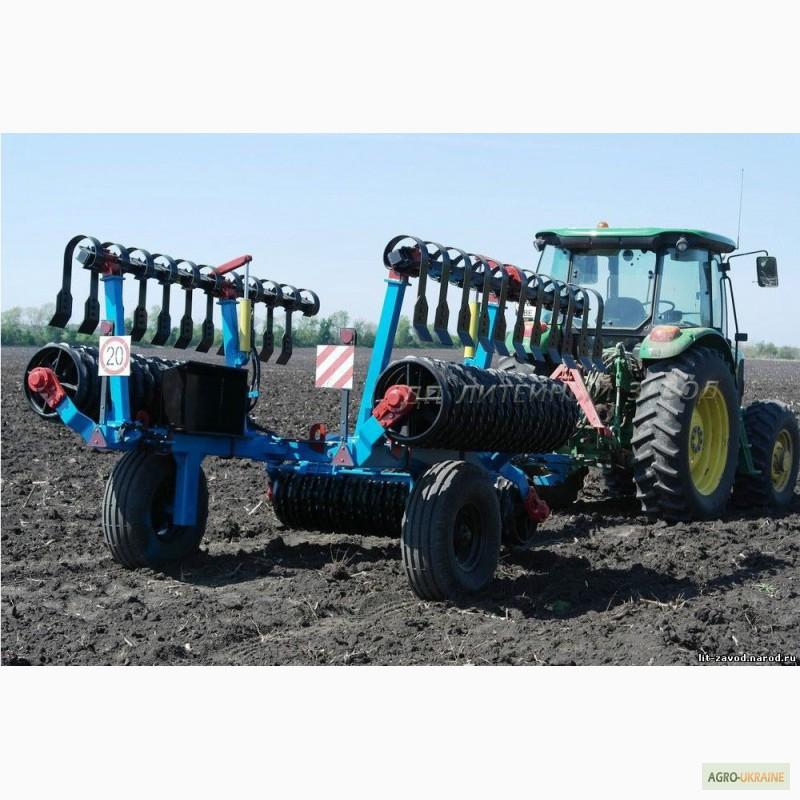

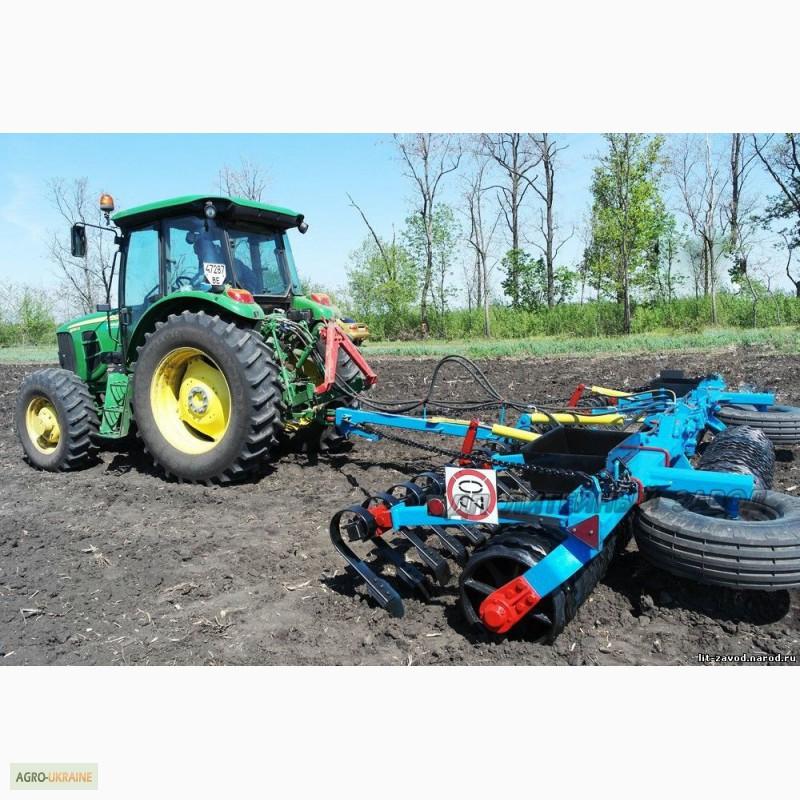

The last development of the enterprise was the ring-tooth roller "Golta-6". This is a long-proven ring-tooth roller for pre-sowing and post-sowing soil treatment with a distinctive feature - the use of leveling strips (boards) as an additional option.

Gripping width, m 6.0
Diameter of the working disc, mm 520
Shaft diameter, mm 60
Mass, kg 3800
Overall dimensions:
in transport position:
length, mm 5800(//tractor-service.com)
width, mm 3200
height, mm 2300
in working position:
length, mm 4100
width, mm 6380
height, mm 900

The use of leveling bars allows you to reduce the amount of tillage to create a favorable seed bed for sowing, especially on heavy, overdried, stony soils, where additional leveling gives a rather high effect. The maximum desired result can be obtained by using various types of roller working bodies, which can be equipped with rollers at the request of the customer.
Leveling bars consist of S-shaped racks made of special high-elastic spring steel measuring 80x10 and replaceable wearing parts made of wear-resistant boron-containing steel and are intended for crushing clods, filling furrows and leveling the surface.
Installation of various types of replaceable wearing parts (ploughshare, cork breaker, chisel) at the request of the customer, allows to achieve the desired result of proper crushing of clods and leveling of the soil surface.
The control of the leveling board (moving it into the working and transport position, setting the depth of processing by changing the angle of impact on the surface layer of the field) is performed by the tractor driver with the help of hydraulic cylinders from the cabtractor.
To collect stones in the field or to increase the weight of the roller, there are boxes that are easily released at the end of the work.
An original tracking mechanism is additionally installed in the design of the rink, which ensures perfect copying of the field surface relief.
