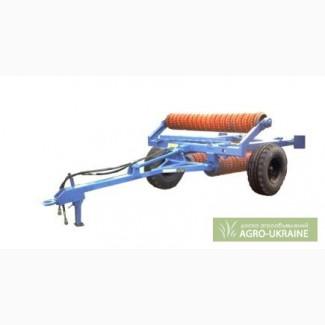

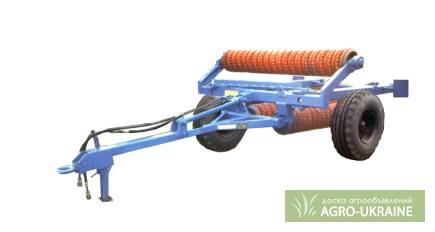

KZK gear and ring rinks - 6A, KZK - 9.2 KZK - 10, KZK-12.5, Dnipropetrovsk region.

Intended for pre-sowing and post-sowing soil rolling, grinding of the surface soil crust and partial leveling of the plowed field.The skating rink works at a humidity of 12-25%, the hardness of the soil in the treated layer is from 0.25 to 0.6 MPa. The frame is made of a square fully tensioned pipe.
Mark KZK-6-01
It is aggregated with tractors of traction class 1.4
Semi-trailer type
Gripping width, m 6
Productivity, ha/time 6.6
Working speed, km/h up to 12
outer diameter of the wedge ring, mm 460(//tractor-service.com)
outer diameter of the gear ring, mm 470
Total mass, kg 3100
length 3580
width 6240
height 1025
length 4930
width 2290
height 1670
