Grain crusher - Straw shredder "Vyhr -2" 2, 2 kW, 100Kg/hour, Mykolaivska region.

Universal grinder "Whirlwind -2" is used for grinding dry grass, straw, alfalfa, reeds, corn stalks, fresh greens, crushing grains... for subsequent granulations.

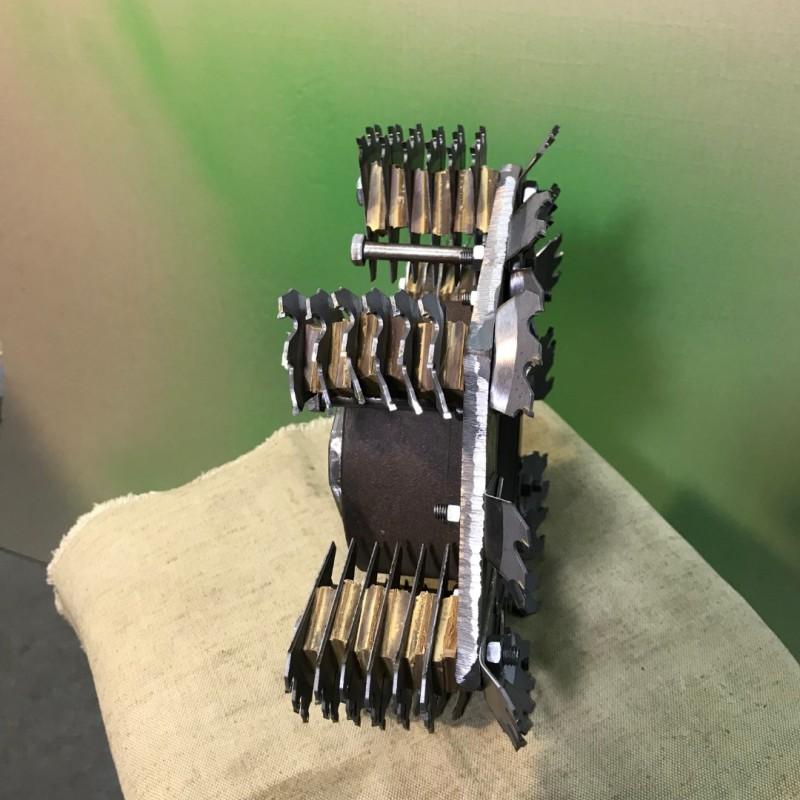

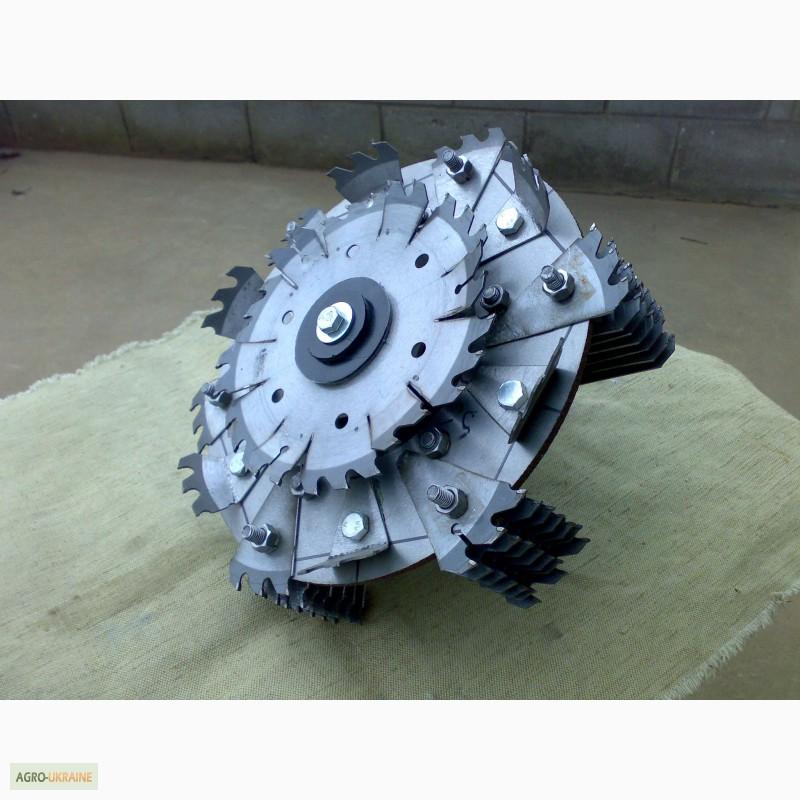

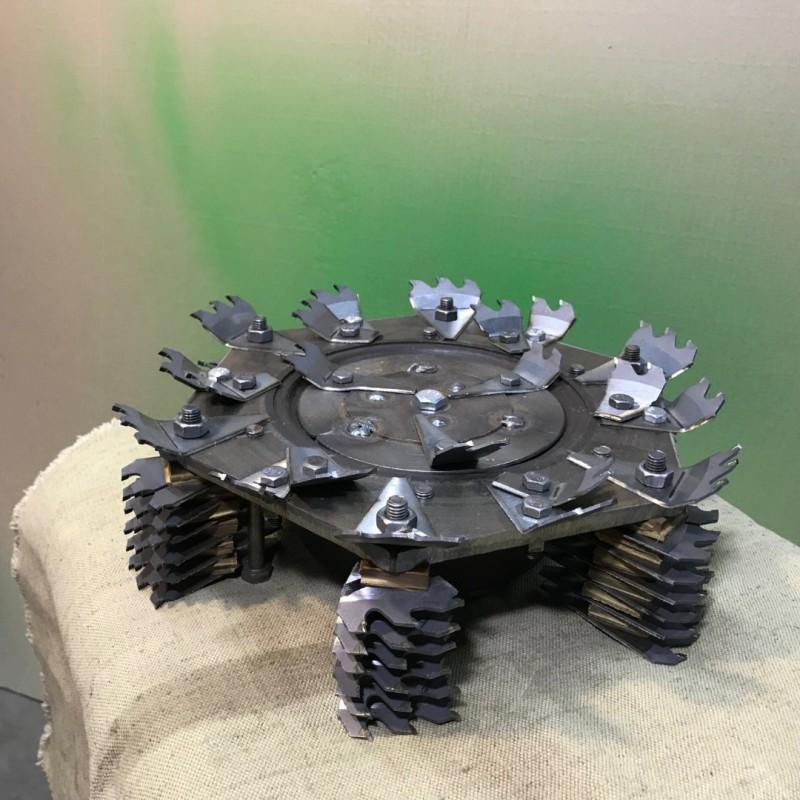

The long-term, high productivity of the chopper is achieved due to the design of the three-dimensional knife, which includes 180 cutters with sharp pobedite tips (this is not a piece of sharpened spring). The main part of them is assembled in 6 sections and distributed every 10 mm in height.
The remaining cutting segments are located on the upper plane of the knife - they provide initial grinding.

With a knife diameter of 290 mm and 2850 revolutions, we have a linear cutting speed of 44 m/sec - a good indicator for a household shredder (recommended 30-105 m/sec).

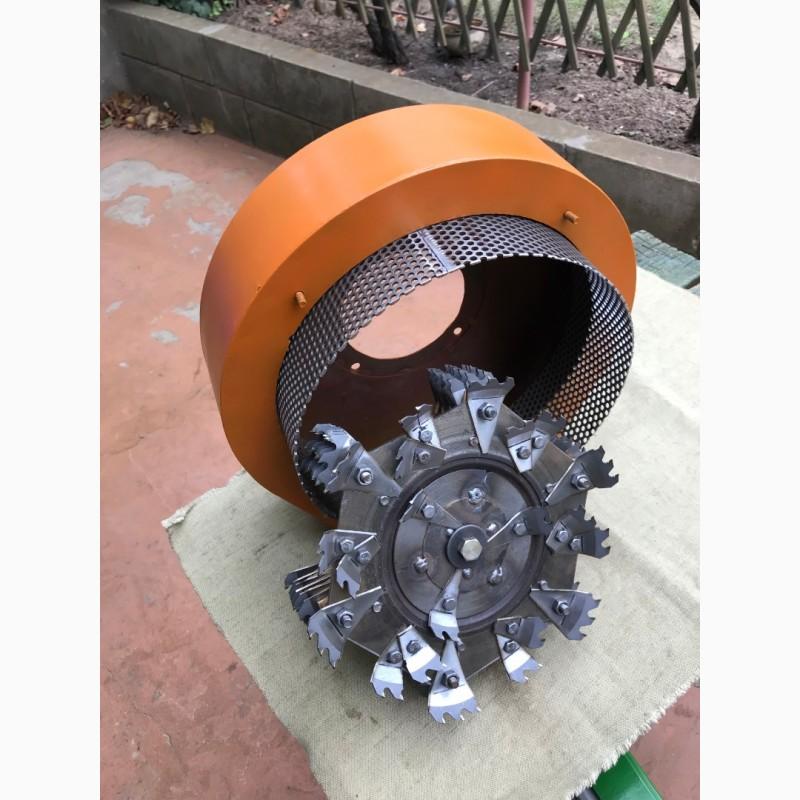

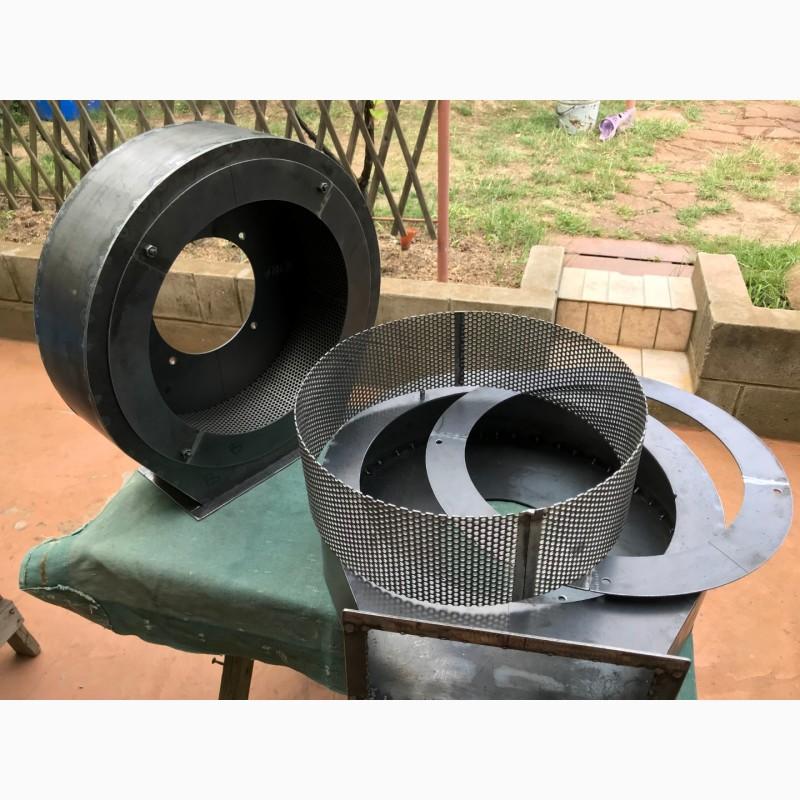

It is worth noting that it is the tips of the knife that have the specified speed and confidently cut, cutting not only hay, straw, but also tough alfalfa. A perforated steel sheet with a thickness of 2 mm is used as a sieve. It provides the necessary rigidity and durability during intensive use of the unit. Perforation of 5 mm ensures the declared performance and the possibility of using the obtained sieve for granulation.

Technical characteristics "Whirlwind - 2" :

-- electric power two – 2.2 kW /2850rpm ;
-- productivity* up to 100 kg/dry straw per time with a 5 mm sieve;
-- revolutions of the working shaft - 2850 rpm;:
-- sieve - 5 mm, perforated steel sheet 2 mm thick;
-- diameter of receiving hopper - 300 mm, depth 470 mm;
-- mass – 38 kg; dimensions - 65/65/110 cm.
(//tractor-service.com)
The unit can be equipped with electric with 2.2 kW engines for both single-phase - 220V and 3-phase networks.

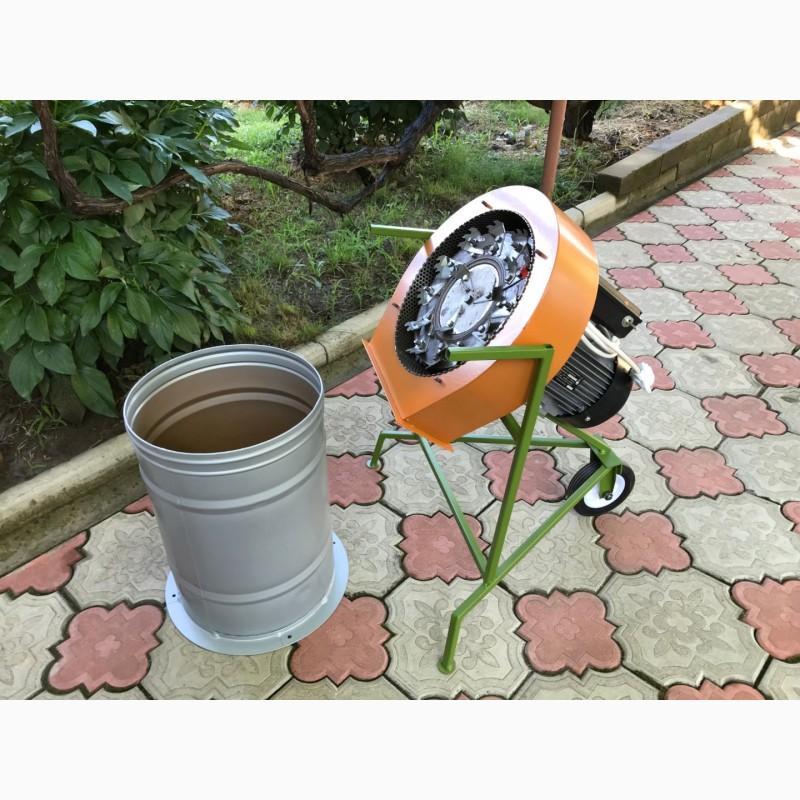

The output of the cutting unit has a flange on which a polyethylene sleeve is put on to collect cuttings. When working with greens and vegetables, the sieve is removed, because it is filled with wet, crushed mass. See the resulting fractions in photo 3.

- Alexander, Kirovohrad region. "Vyhrem" cut more than 10 tons of straw in half a year. Over time, I got the hang of it and now I cut up to 10 bales of dry straw at a time. Productivity drops if the straw is wet.

- Viktor, Odesa region I bought Vykhr2 on 220V in 2016. I rarely use a sieve. Every day I grind more than 150 kg of fodder - zucchini, pumpkin, corn, hay, alfalfa... I pass everything through it. Eating 100%. Cows, sheep, piglets are kept.

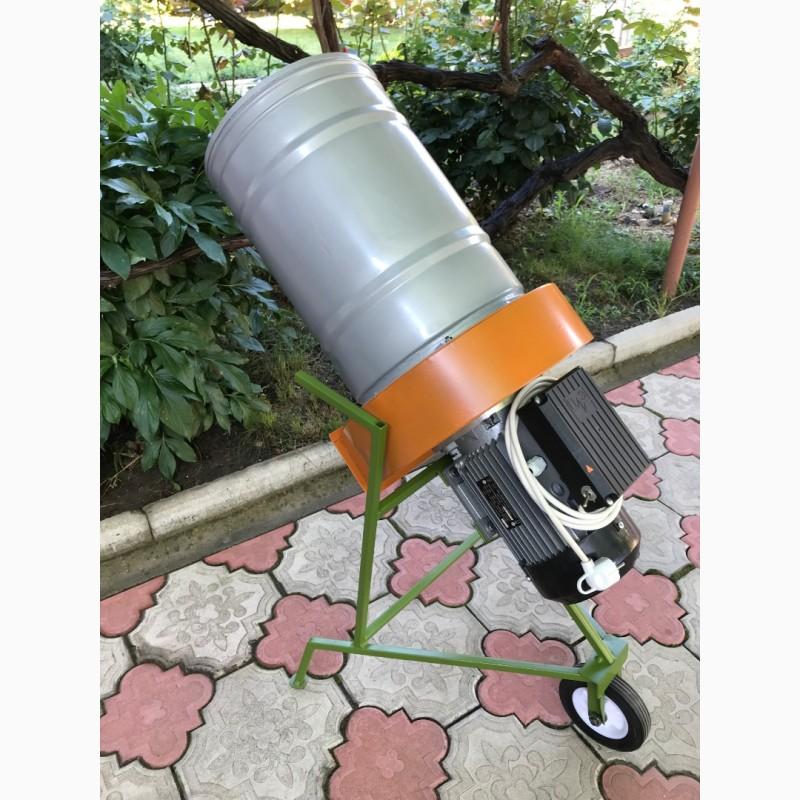

The compact, mobile unit "Whirlwind-2" will help prepare fodder mixture, get mulch for the garden, a substrate for growing mushrooms... It is a good addition to "Appetite" fodder processors.** Straw, grass clippings added to fodder porridges, which are prepared by "Appetite", will enrich them with the necessary fiber and minerals...

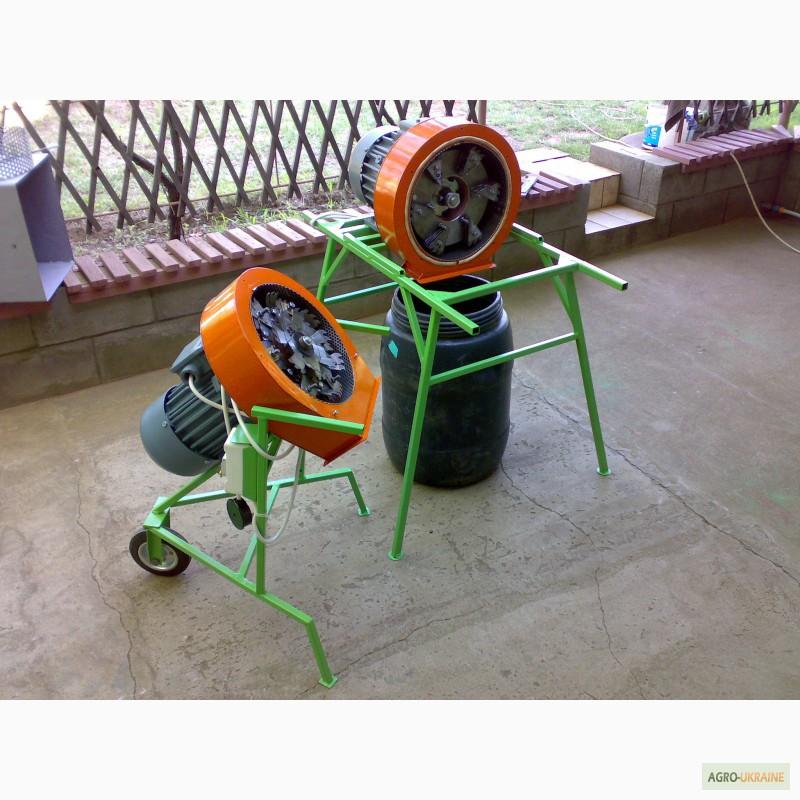

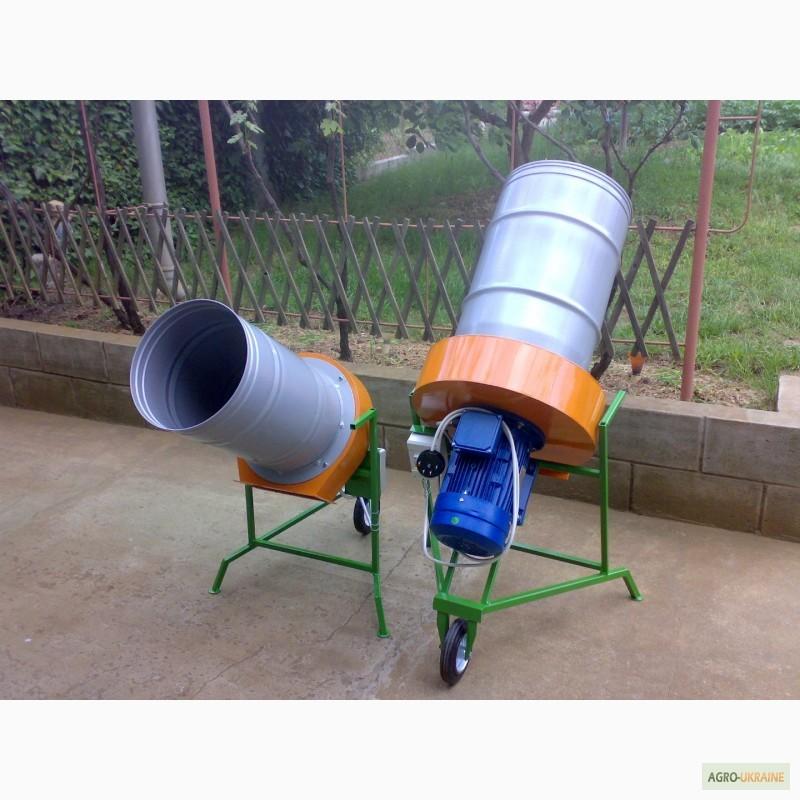

For those who have their own flange electric. we can offer the engine a knife block in a set (in the pictures it is orange), package sizes (40/42/12), weight 15 kg.

Thank you for your interest. Any questions about the use of the unit, purchase, payment, delivery - voka1953@gmail.com tel: +38 067 2825117; +38 095 3505197 Viber, WhatsApp; Skype: voka531

* Productivity depends on the speed of the operator, the preparation of the workplace, the humidity of the material.

** Feed processors "Appetite" (see the description on the website) - units of different performance for economical fattening and maintenance of pigs, cattle, domestic animals and birds. Prepare hot fodder porridge from water and any grain. The consumption of which is halved. When fattening 50 piglets, the unit allows you to save up to 20 tons of grain compared to dry fattening (crushed grain +drinker with water)! Completely abandon premixes. At the same time, a daily weight gain of 1 kg is normal even for non-bred piglets.
