Chopper - straw cutter - grass cutter - grain crusher "Whirlwind -5" 5.5 kW/250 kg/hour, Mykolaiv region.

Universal grinder "Whirlwind-5" is used for grinding dry grass, straw, alfalfa, reed, green grass and for crushing grains....

The long-term, high productivity of the chopper is achieved due to the design of the three-dimensional knife, which includes 220 cutters with sharp pobeditovy on solders (this is not a piece of sharpened spring) rotating on the el shaft. engine With a knife diameter of 370 mm and shaft revolutions of 2850, we have a linear cutting speed of 56 m/sec (recommended 30-105 m/sec), which provides the declared productivity* of 250 kg/hour of dry straw. A perforated steel sheet with a thickness of 2 mm is used as a sieve. It provides the necessary rigidity and durability, with intensive use of the unit. Perforation of the sieve is 5 mm and the area is 1500 square meters. sm. provides good productivity and the possibility of using the obtained mesh for granulation.

Technical characteristics of "Vykhr-5"

-- electric power two – 5.5 kW /2850rpm;
-- productivity* up to 250 kg/dry straw per time with a 5 mm sieve;
-- revolutions of the working shaft - 2850 rpm;
-- sieve - 5 mm - perforated steel sheet 2 mm thick;
-- sieve area - 1500 sq. cm. (diameter 39 X 12 cm.)
-- diameter/length of the receiving hopper - 38/58 cm;
-- total weight – 60 kg; dimensions - 72/102/120 cm.
(//tractor-service.com)
The mobile (on a wheel frame) unit "Whirl-5" will help prepare feed mixture, get mulch for the garden, a substrate for growing mushrooms... It is a good addition to "Appetite" feed processors.** Straw, grass clippings added to fodder porridges prepared by "Appetite" will enrich them with the necessary fiber and minerals...

The output of the cutting block has a flange on which a polyethylene sleeve is put for collecting cuttings. When working with greens, the sieve is removed. Productivity drops if the straw is wet. In this case, it is better to dry it or freeze it.

Attention! We offer for purchase the basis of the shredder - a knife block (it is orange in the pictures) consisting of: a body, a knife, a sieve, a washer for fastening the receiving hopper. The dimensions of the block in the package (53/53/16), the weight of 25 kg will allow you to send it to any address more economically than the unit with a frame and a hopper. Arranged shipment to Russia, Kazakhstan, Belarus.

Thank you for your interest. Any questions about the use of the unit, purchase, payment, delivery -[email protected] tel: +38 067 2825117;
+38 095 3505197 Viber Skype: voka531

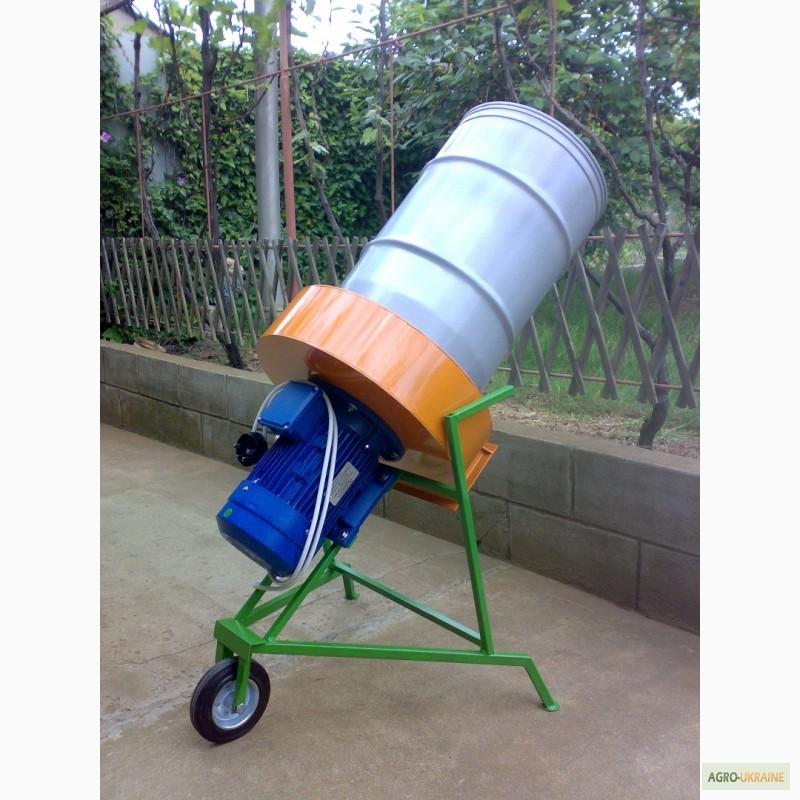

Main photo - straw cutter "Vyhr-5". In the second pictures, "Whirlwind-5" and "Whirlwind-2" are similar in design, but differ in dimensions, power, and productivity. The video shows "Whirlwind-2".

* Productivity depends on the agility of the operator and the preparation of the workplace - a bale on the table (no need to bend down), the humidity of the material - preferably dry....

** Feed processors "Appetite" on the basis of hydromills prepare hot fodder porridges from water and any grain. Significantly facilitates the work of the breeder. When fattening 50 piglets, the unit saves up to 20 tons of grain compared to dry fattening (shredded grain +drinker with water)! See the website for details. https://youtu.be/0k2UhLdbpDY - AP100 video.
