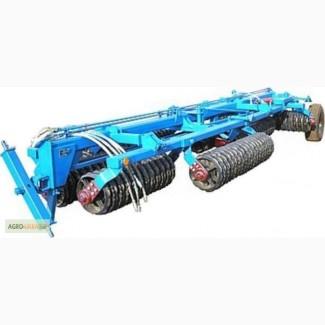

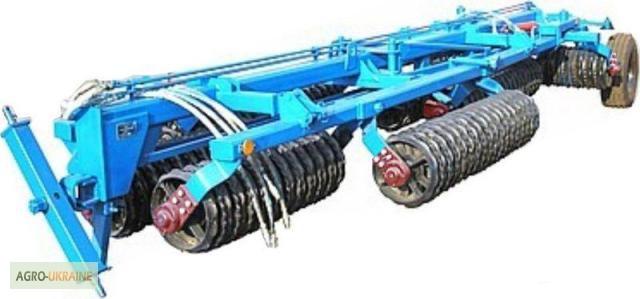

Ring-toothed hydro-treated roller KZK-10P, Dnipropetrovsk region.

Ring-tooth rink
KZK-10P Ring F460, cast iron, base 3609
KZK-10P-01 Ring F360, cast iron, base 3609. with wedge rings, which significantly increases the reliability, durability and maintainability of the roller.
The use of the KZK F520 wedge ring with the KZK F530 toothed rings made it possible to make the rink a highly efficient unit due to:
- elimination of the effect of the "comb" of the earth due to the increase in the diameter of the working bodies;
- more dense rolling of the soil. The weight of the roller is increased compared toroller KZK-10P by 600 kg;
- more complete grinding of heavy lumps of earth.(//tractor-service.com)
Constructive changes aimed at increasing reliability and durability were implemented during the production of the rink:
- adjustment of the axial clearances of the working bodies without disassembling the bearing assembly;
-strengthening of the frame in highly loaded nodes;
-increasing the stiffness of the rink structure due to stretching;
- use of quick-release connections;
`-application of the improved design of the hinged assembly of the frame.
Poch tillage this roller improves the flow of moisture to the seeds, reduces its evaporation, improves the contact of the seeds with the soil and accelerates their germination, which leads to optimal emergence of seedlings and sustainable development of the crop.
Working width of 10 m, mass 5750 kg, aggregated with tractors of class 3.
