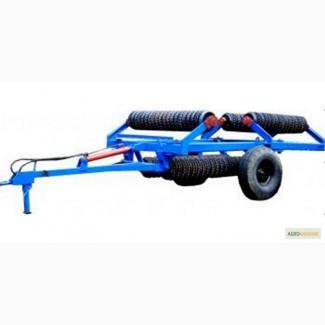

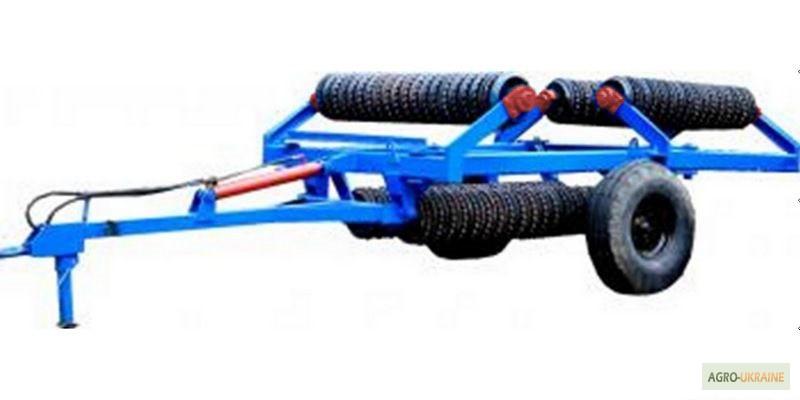

KZK-9.2P ring-toothed rink, Dnipropetrovsk region.

Rink ring-toothed KZK-9.2P hydrofed
KZK-9,2P Ring F460, cast iron KZK-9,2P-01 Ring F360, cast iron The distinctive feature of the roller is the use of a ring of wedge-shaped KZK with a diameter of F460 with freely moving intermediate toothed rings of KZK F470, which rotate freely on the bushings installed between the wedge rings, which significantly increases reliability, durability and repairability of the rink.
The working width of the grip is 10 m, the mass is 4350 kg, it is aggregated with tractors with a power of 100-110 hp.
The use of a wedge-shaped KZK F460 ring with KZK F470 toothed rings inrollers with a grip width of 9.2 m made it possible to make the rink a highly efficient unit due to:
- elimination of the effect of the "comb" of the earth due to the increase in the diameter of the working bodies;
- more dense rolling of the soil. The mass of the roller is increased by 850 kg compared to the roller KZK-9,2P-01;
- more complete grinding of heavy lumps of earth.(//tractor-service.com)
Constructive changes aimed at increasing reliability and durability were implemented during the production of the rink:
- adjustment of the axial clearances of the working bodies without disassembling the bearing assembly;
-strengthening of the frame in highly loaded nodes;
-increasing the rigidity of the rink structure due to stretching;
- use of quick-release connections;
- the use of an improved design of the hinged assembly of the frame.
Poch tillage this roller improves the flow of moisture to the seeds, reduces its evaporation, improves the contact of the seeds with the soil and accelerates their germination, which leads to optimal emergence of seedlings and sustainable development of the culture.
