Equipment for the production of concrete wells, pipes, rings and manhole bases, Afinitas.

Formwork designed for a long service life

Forming by vibrocasting.
Straight base
Extended base

Rugged steel construction for strength, durability and performance.

Afinitas is known for bringing together the industry's leading engineers and manufacturing experts to create best-in-class precast formwork systems. Our wide range of high quality products is supported by experienced and responsive sales and production staff who are ready to assist you throughout the life of your formwork. And this ensures that our shuttering forms are durable. We combine strong steel with an innovative approach to production, which guarantees the ability to develop your business in the desired direction.

Products for wells are the key specialization of the Afinitas team.

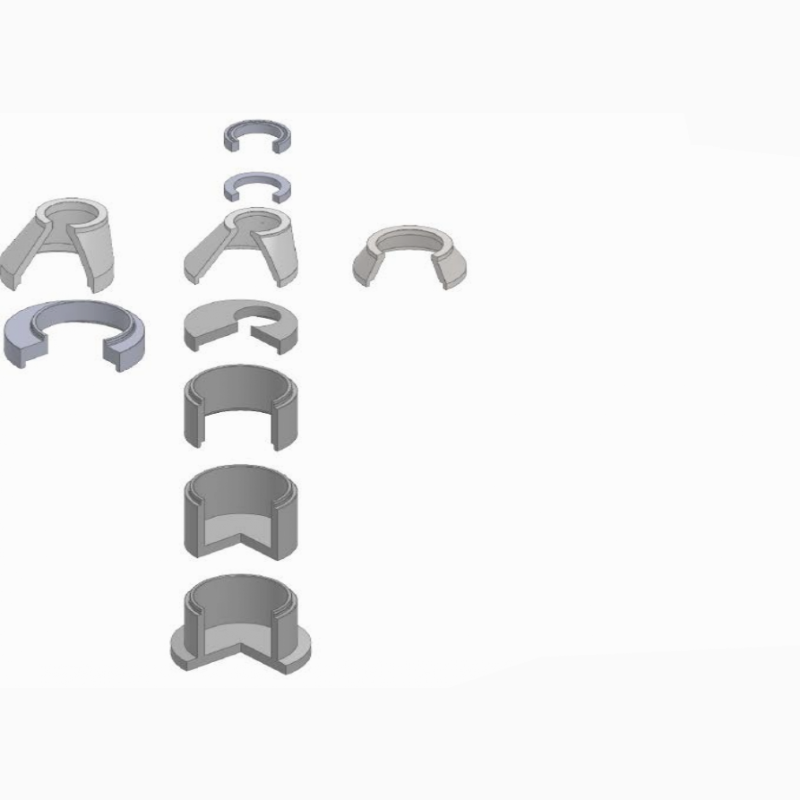

For decades we have been trusted to design molds for a wide variety of wells including:

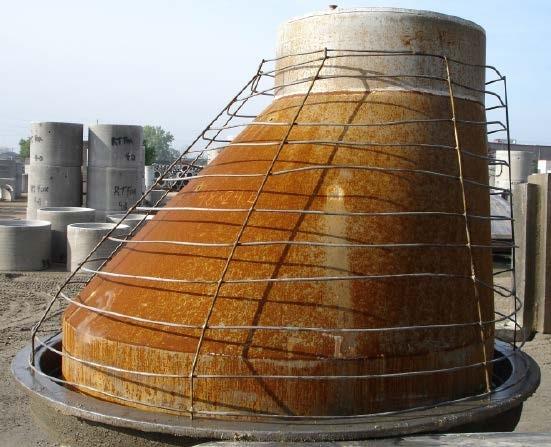

Forms with an eccentric cone

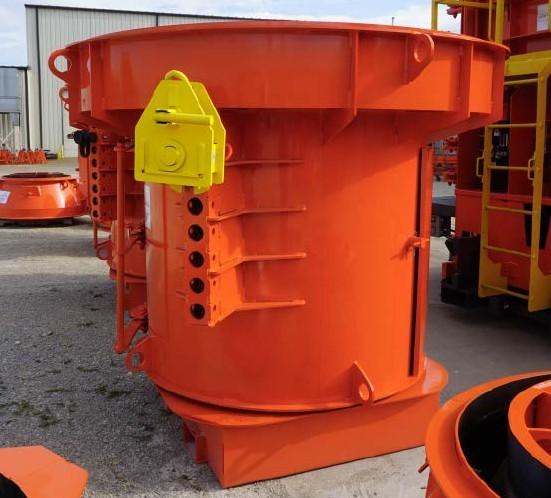

Forms with a concentric cone
Forms for upper, transitional and basement slabs
Forms with an elongated and straight base
Forms for risers
Forms for a shortened base and a shortened riser.
Forms for single type rings
Forms for battery-type rings
Rings for well joints

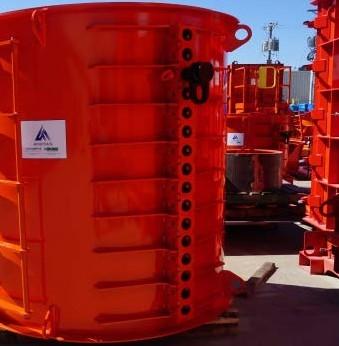

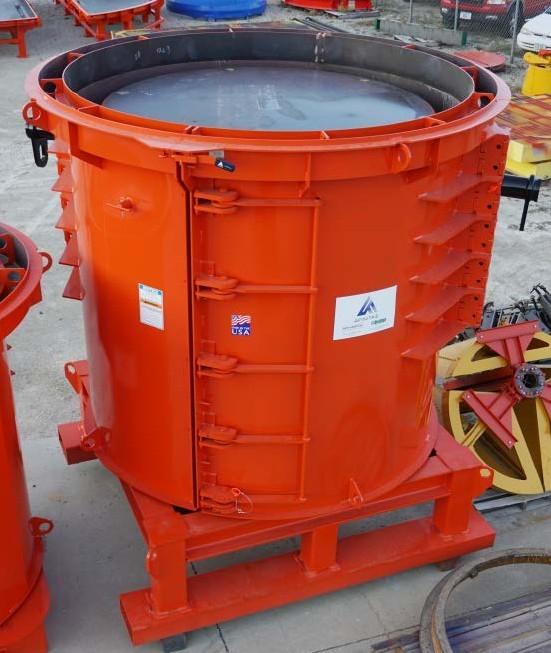

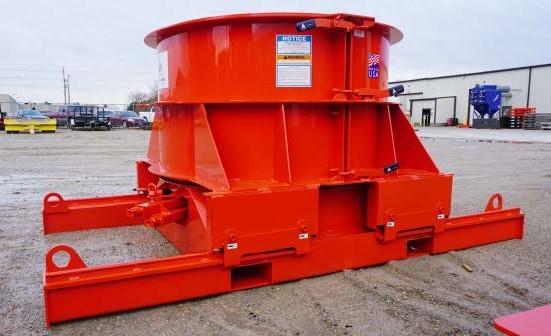

Two-section formwork

In general, two-section formwork with a straight base is a versatile and safe way to create precast concrete manholes with simple shapes and characteristics, such as those used for pavements, driveways, storm drains and utility access. Formwork is easy to use and we manufacture it to the exact dimensions and specifications required for a specific project. Two-section formwork is ideal for using block formwork to create inlet and outlet drainage holes.

Advantage Afinitas

The diameter of the base of the well: from 60 to 350 cm.
Two-section construction with hinged clamps, gusset strips and leveling pins.
Quick release pins, swivel hinges for overturning.
The inner core, which is mechanically destroyed,

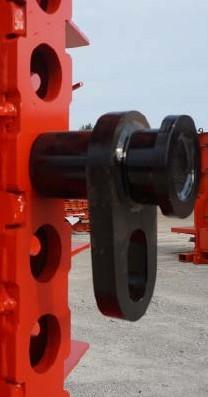

Option: full-size formwork trunnions (only for straight monolithic tipping formwork!)
(//tractor-service.com)

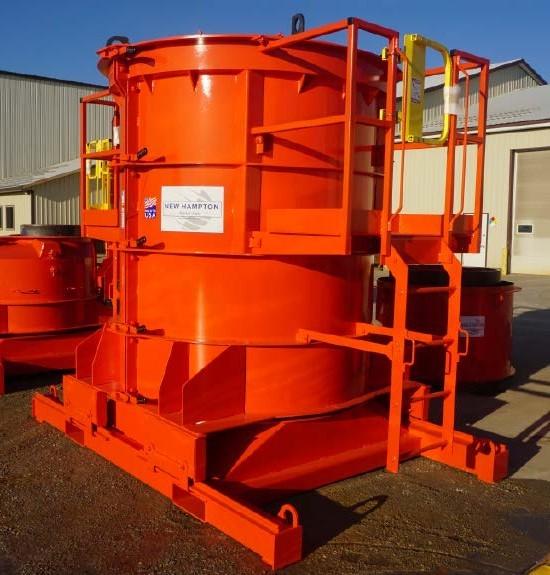

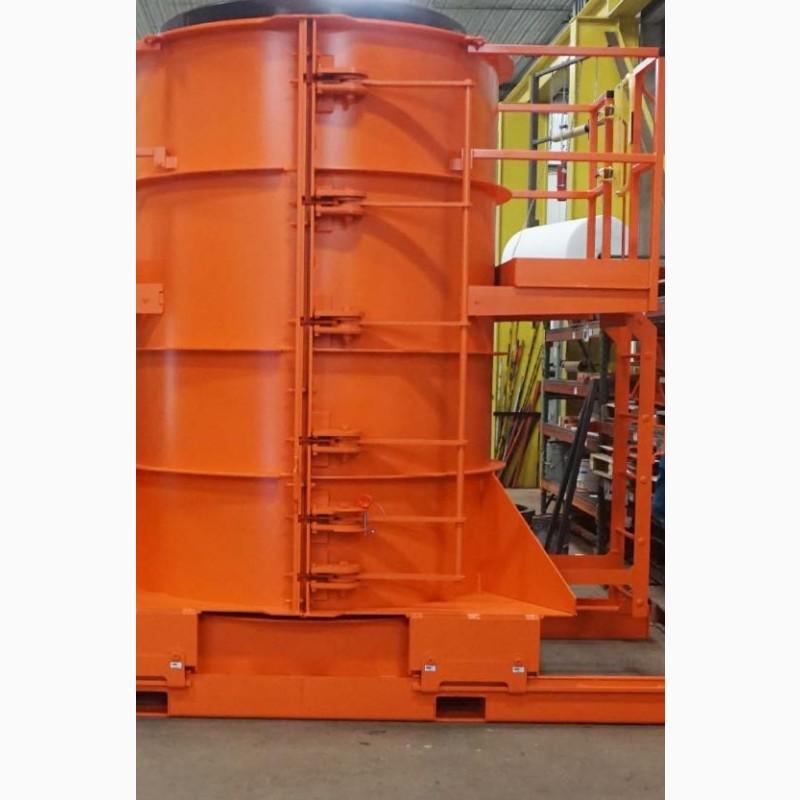

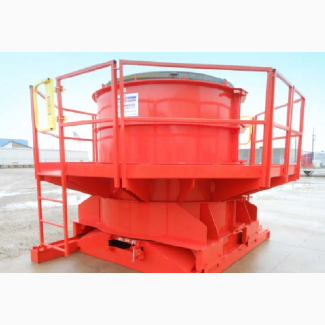

Two-section formwork

Two-section formwork with an extended base is used for larger and more complex projects to provide greater stability and support. They are ideal for the production of products that withstand heavy loads, such as the construction of highways, bridges and underground communications. Integral formwork is ideal for drilling holes for inlet/outlet drainage holes.

Advantages of Afinitas

The diameter of the well cone: from 0.60 m to 3.65 m
Two-component construction with hinged clamps, seam strips and centering pins.
Quick release pin, swivel eye for overturning.

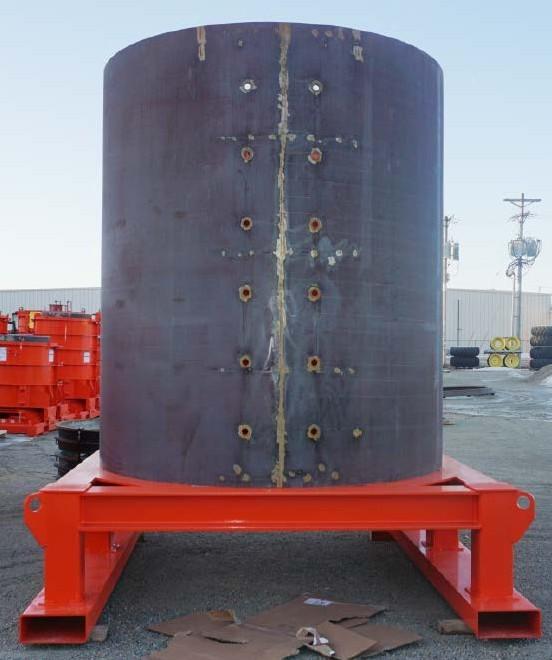

The inner core is mechanically folded.

The straight and elongated base is available in one-piece or two-fold design.

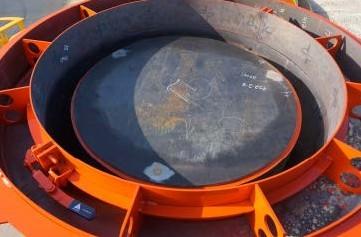

Why should you choose the Quick Strip option?

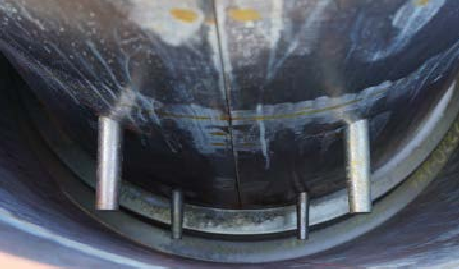

By manually moving the Quick Strip levers from right to left located at the bottom of the base, the inner core flips over and the step pins (if needed) are retracted.

Looking for a way to automate the production of well foundations - this is our automated system for the production of monolithic well foundations.

Why should you choose the Quick Strip - Roll Back option?

Thanks to the Quick Strip system, there is no need to work with the inside of the frame or the additional bolted top part of the frame. Instead, the inner part of the frame and the step pins (if necessary) are folded and removed by simply moving the Quick Strip levers from right to left at the bottom of the base. This simple, convenient and safe process reduces the need for crane lifting, saving time and money on the construction site.

When using the Roll Back system, the doors are opened and closed manually. The production crew does not need to lift the outer part of the frame with a suspended lift. This simplifies and makes the process safer.

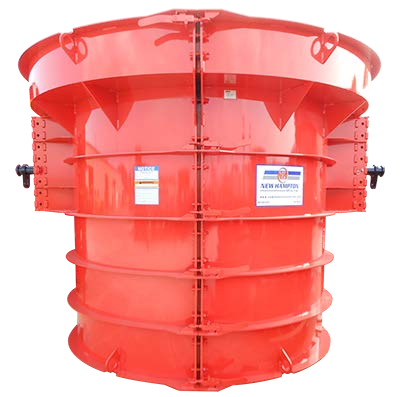

We offer large-format formwork with a diameter of over 211.5 cm, as well as formwork with a lining strip.

Available for both single-section and two-section formwork.

Advantages of formwork strips

With this option, you can manually fold the inner core from the underside of the backing without touching or turning the inner core or the top of the core. (The top of the core is bolted to the top of the core).

Reducing the number of crane lifts, which saves time and money.
Easier and more convenient: Move the Quick Strip lever located below, right to left, to manually fold the core, and step pins (if needed) are manually retracted.
Safer: The lining strip option is safer than traditional formwork removal methods. There is no need to lift heavy objects and the risk of accidents is lower.

With years of experience in the pipe industry and the precast concrete market, we supply manufacturers around the world with gold-standard precast equipment, high-tech dry and wet casting molds, and a wide range of concrete accessories.

Our combined strengths are extensive concrete equipment engineering resources, manufacturing knowledge and experience in the pipe and precast industries to help you create the perfect production systems for your infrastructure concrete product needs.
