Equipment for manufacturing concrete pipes, JUMBO R, BFS.

JUMBO R is a guarantor of the quality of products of any size.

A classic high-performance machine for reinforced concrete and non-reinforced concrete pipes - strong, reliable and versatile.

Concrete products for your success - BFS is the technology leader.

Products:

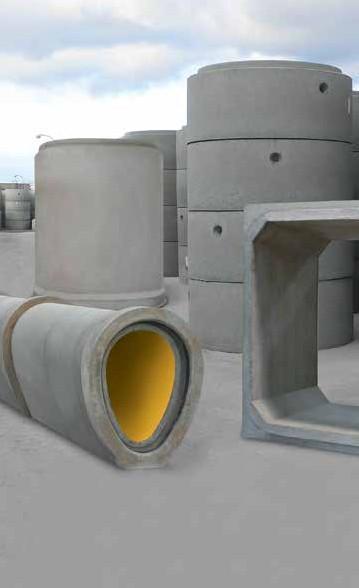

Concrete pipes, Well rings and well cones, with and without elements, Special inspection blocks, angular or non-round - JUMBO is capable of almost everything.

The bases of the wells, manufactured in an inverted form using the patented GONIO system, ensure exceptionally accurate sockets.

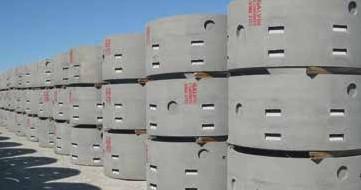

Multi-chamber rings for septic tanks, compacted by a central vibrator in each chamber.

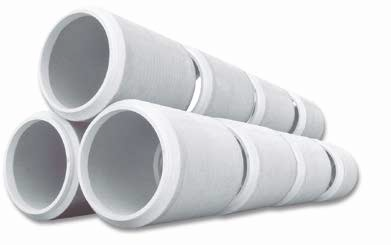

Pipes made of reinforced concrete and non-reinforced concrete according to international standards of any size.

With the help of special equipment, reinforced and unreinforced concrete pipes, well foundations, rectangular well blocks and similar products can be professionally manufactured.

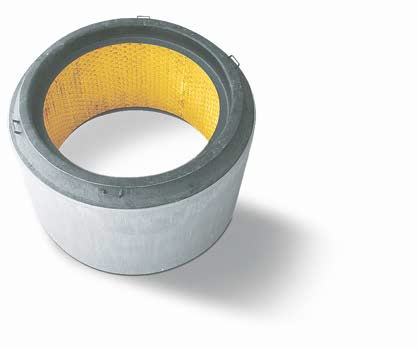

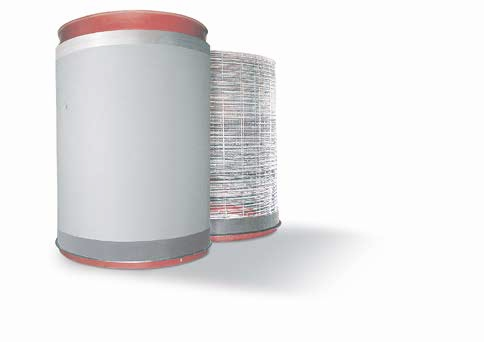

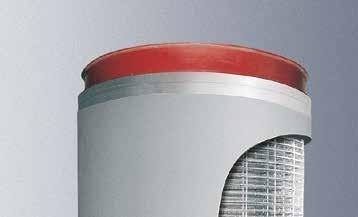

Reinforced and non-reinforced concrete pipes with lining.

Draft pipes from JUMBO R: High quality and precise dimensional tolerances, including with double reinforcement.

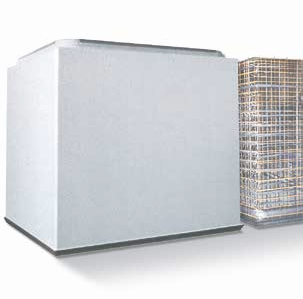

Housing culverts and rectangular pipes.

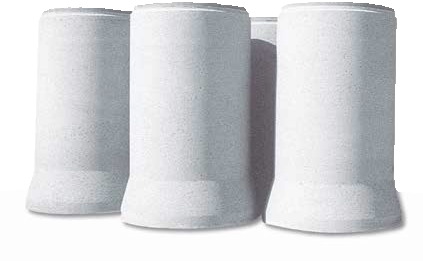

Small-diameter concrete pipes with a bell or large-diameter concrete pipes with a straight wall - Reinforced and unreinforced.

A variety of possibilities: examples of pipe sections made with the JUMBO R and the proven central vibration system.

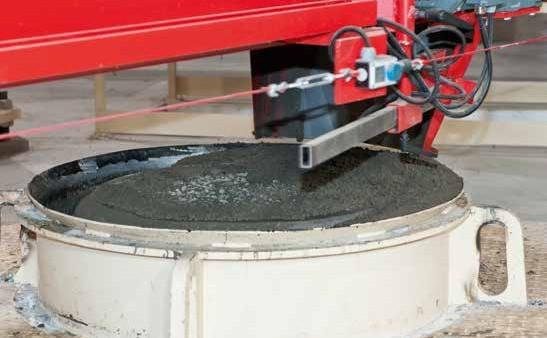

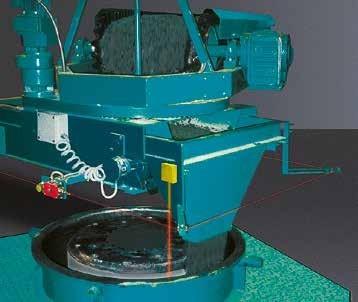

The rotating JUMBO R concrete feed unit, together with the rotating distribution conveyor, ensures precise feeding of concrete into the form. The frequency-controlled drive ensures a smooth and controlled delivery of concrete, ensuring optimal adaptation to each product.

JUMBO R types, product sizes:

The maximum length is 2500 - 3500 mm.

Maximum DN 1500 - 3600 mm

JUMBO R - VIBRATION SYSTEMS:

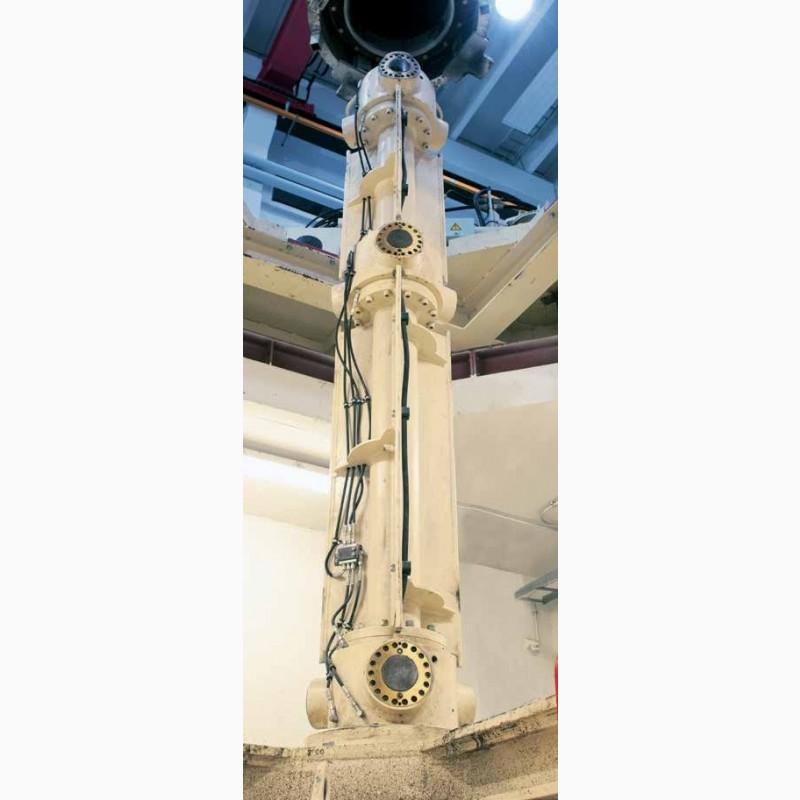

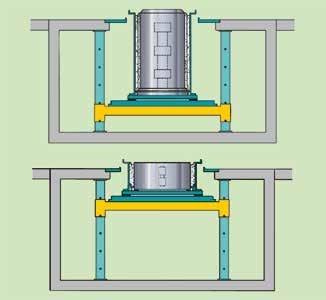

One central vibrator with several vibrating blocks – depending on the length of the pipe – ensures intensive and continuous compaction.

Advantages of central vibrators V230 and V506:

Hydraulic quick-clamp system in each vibrator for quick readjustment

Modular construction of vibrating blocks

Different lengths and optimal adaptation to products.

The calculated vibration forces and standard rotation frequency of 4200 rpm guarantee intensive compaction(//tractor-service.com)

Additionally equipped with a frequency converter or a frequency regulator to optimize the quality of concrete

Ease of maintenance thanks to lubrication: simplicity, reliability and no problems.

Vibrocross: rigid, with quick clamping system

JUMBO R - VIBRATION:

A central vibrator with several vibrating heads depending on the length of the pipe - for intensive and uniform compaction.

Advantages of central vibrators V230 and V506:

Hydraulic quick release in each vibrator for quick readjustment.

A modular system of vibrating heads for the production of products of different lengths and optimal adaptation to the products being manufactured.

High vibration force and standard speed of 4200 rpm ensure intensive compaction

Additional equipment with frequency converter or frequency control unit to optimize concrete quality

Convenient maintenancelubrication system: simplicity, reliability and lack of problems.

Vibro rammer: rigid, with quick-clamp fastening

JUMBO – flexible and efficient production of concrete pipes and wells, as well as various special elements with a diameter of up to 3600 mm.

Appendix: "Jumboliner" version for production of PVC/PVC and HDPE/HDPE coated products.

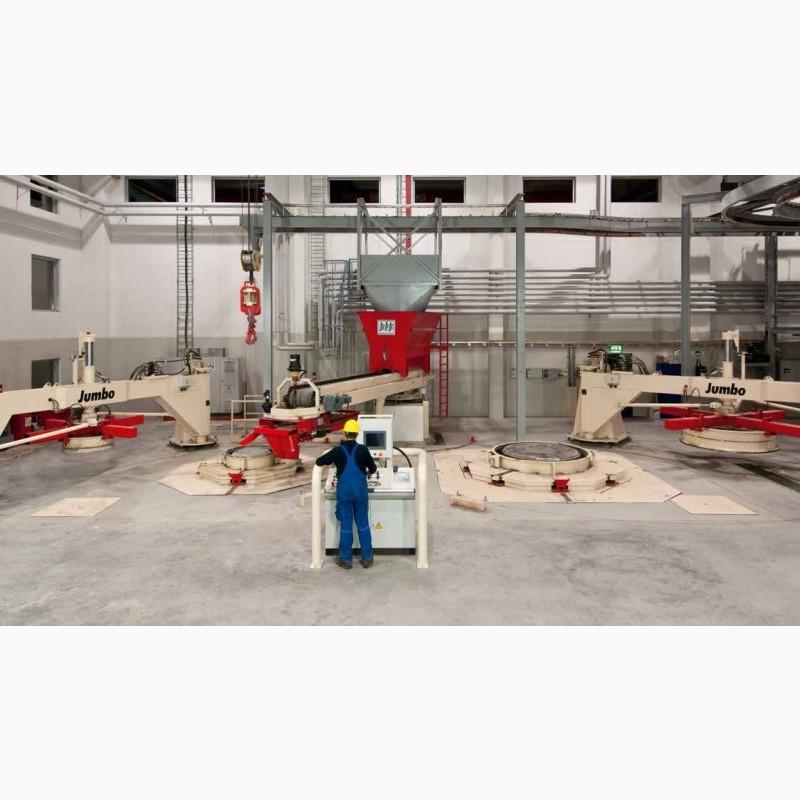

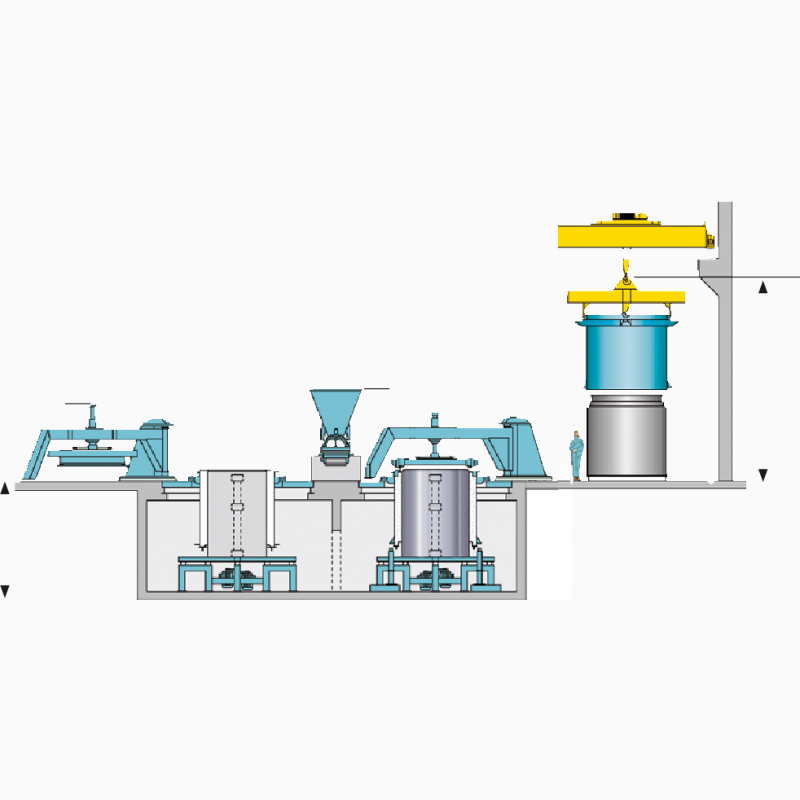

JUMBO R DUO – Two Jumbos in one for maximum production flexibility and productivity (two molds are produced simultaneously).

Alternative production on 2 installations of different sizes.

Parallel production increases daily productivity.

Production capacity of JUMBO JR Mono and JUMBO JR DUO for reinforced concrete pipes 2.5 m long per 8-hour shift, in linear meters, maximum:

Pipe Mono Diameter 300 mm – 140 m / Duo – 280 m

Pipe Mono Diameter 600 mm - 120 m / Duo - 230 m

Pipe Mono Diameter 800 mm - 110 m / Duo - 210 m

Pipe Mono Diameter 1200 mm – 100 m / Duo – 180 m

Pipe Mono Diameter 1600 mm – 80 m / Duo – 150 m

Ring Mono Diameter 1800 mm - 80 m / Duo - 150 m

Ring Mono Diameter 2000 mm - 70 m / Duo - 120 m

Ring Mono Diameter 2500 mm - 50 m / Duo - 90 m
