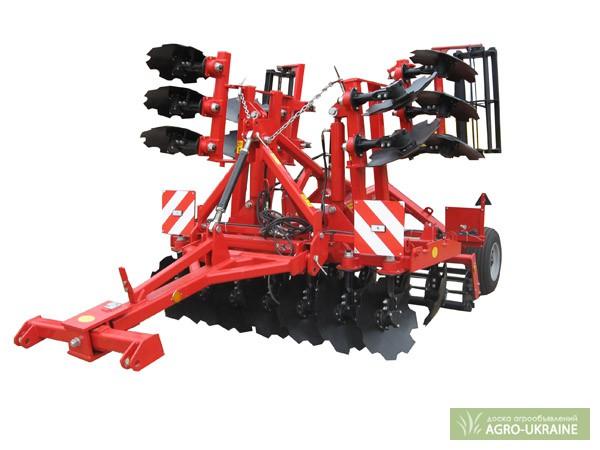

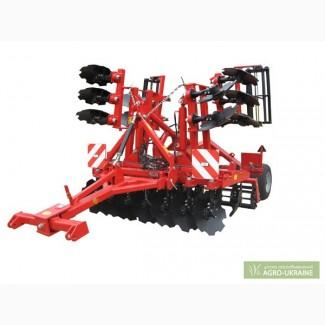

Disk harrow AGM-4.2

This unit is intended for the main and pre-sowing soil treatment for grain and technical crops, not clogged with slate and other obstacles, with soil resistivity up to 0.9 kgf/cm2, hardness 35 kgf/cm2 (3.5 MPa) and humidity up to 27%. In one pass, the unit grinds and compacts plant residues, crumbles and levels the field surface, and compacts applied fertilizers.

The main design features of the plow are an adjustable track, maintenance-free bearing housing of the working body and wear-resistantdisks made of boron-containing steel.

Technical characteristics Наименование Значение

Estimated productivity, hectares per time 3.4-4.2

Gripping width, m 4.2

Weight of the plow, kg 3270
(//tractor-service.com)
Processing depth, cm 8-20

Working speed of movement km/h 8-10

Number of working bodies, pcs. 24

Disc diameter, mm, 640 ± 10

Overall dimensions, mm: length 5000

width 2800

height 3000

Maximum power of the tractor, hp 170-220
