Equipment for the production of concrete rings Ø800 mm - Ø1200 mm, Kyiv

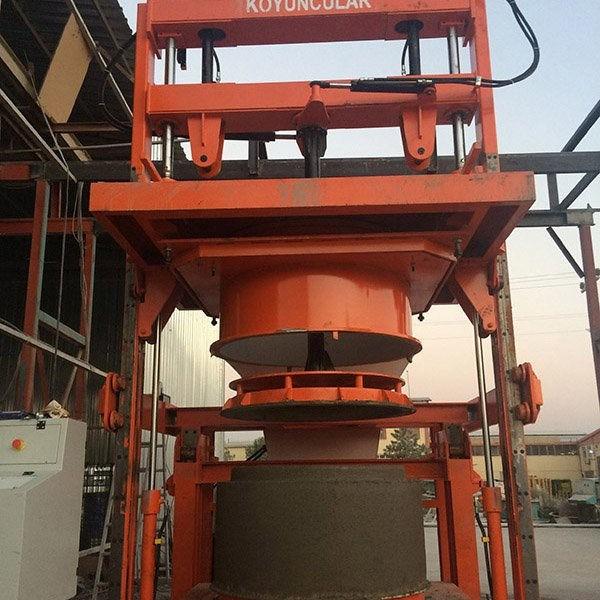

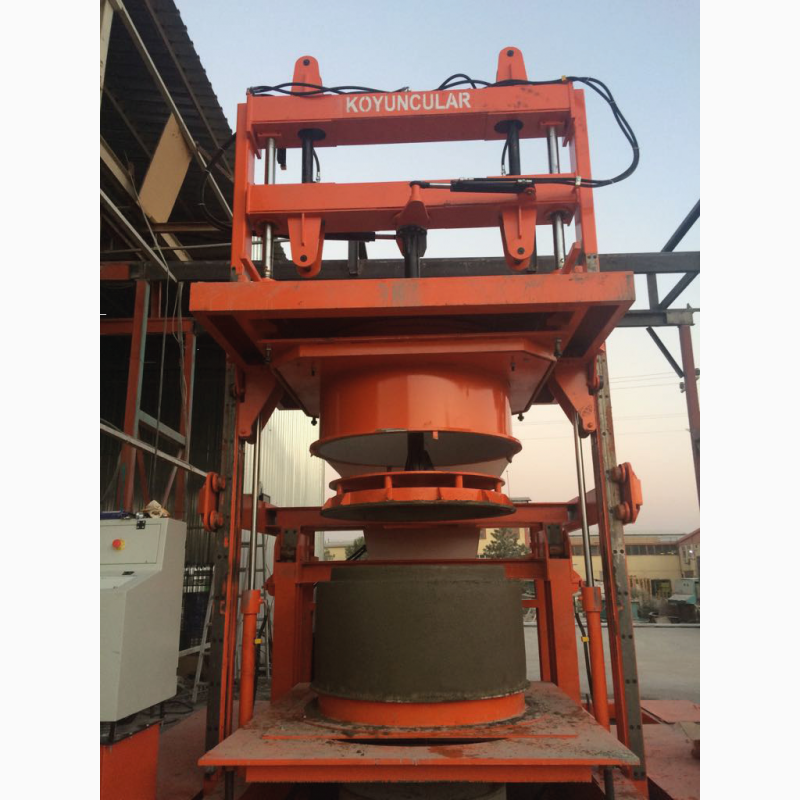

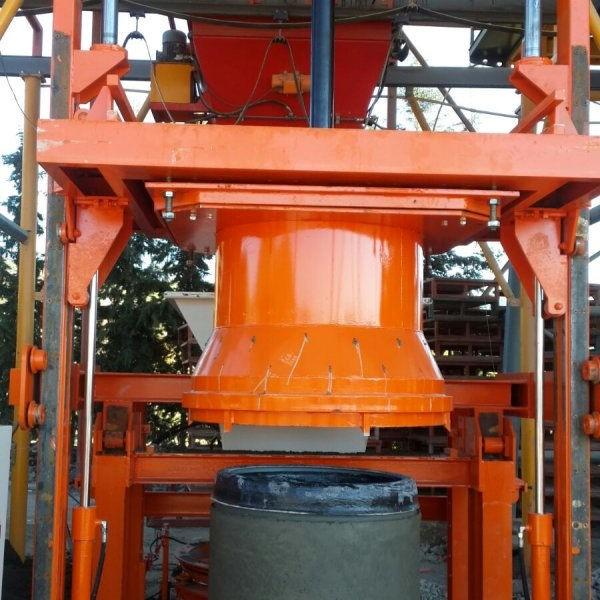

Machine for the production of concrete rings Ø800 mm - Ø1200 mm/
Our concrete ring making equipment produces Ø800 rings, Ø620, Ø1000 and Ø1200 inspection chamber rings, Ø620/1000-Ø620/1200 mm. The top (top of the cone) of the chimney.

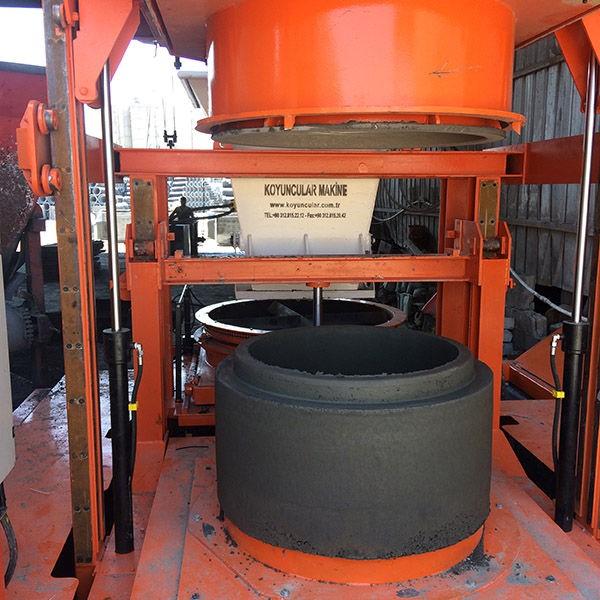

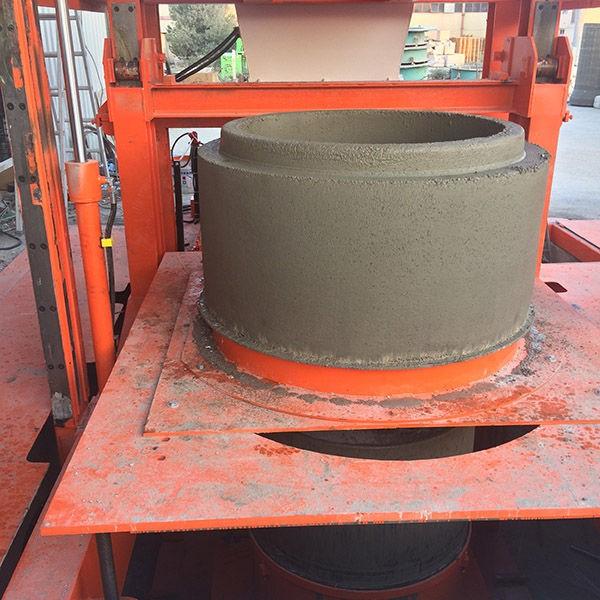

Manufactured concrete products are delivered to the ground level and transported to the site using a new generation elevator.

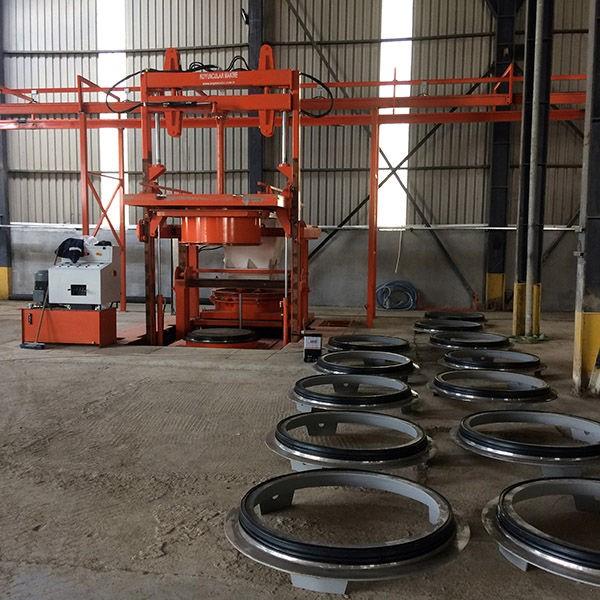

Production system.

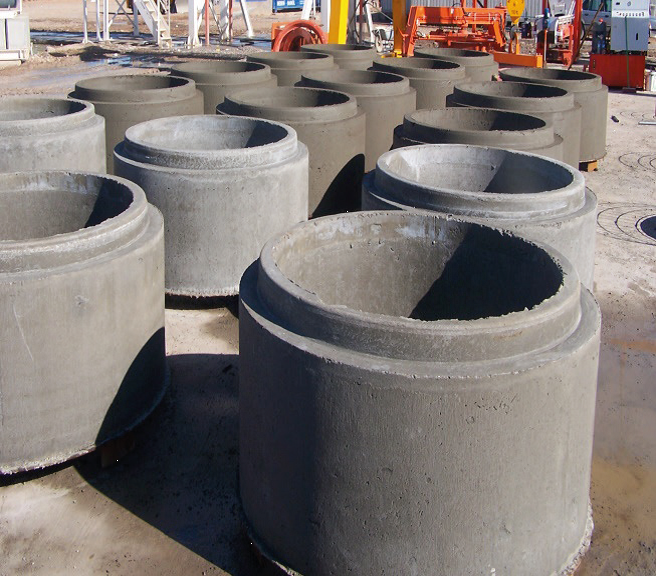

Manufactured chimney elements are transported by forklift to the drying area.
Thanks to the elevator system of the new generation, the speed of production has doubled.

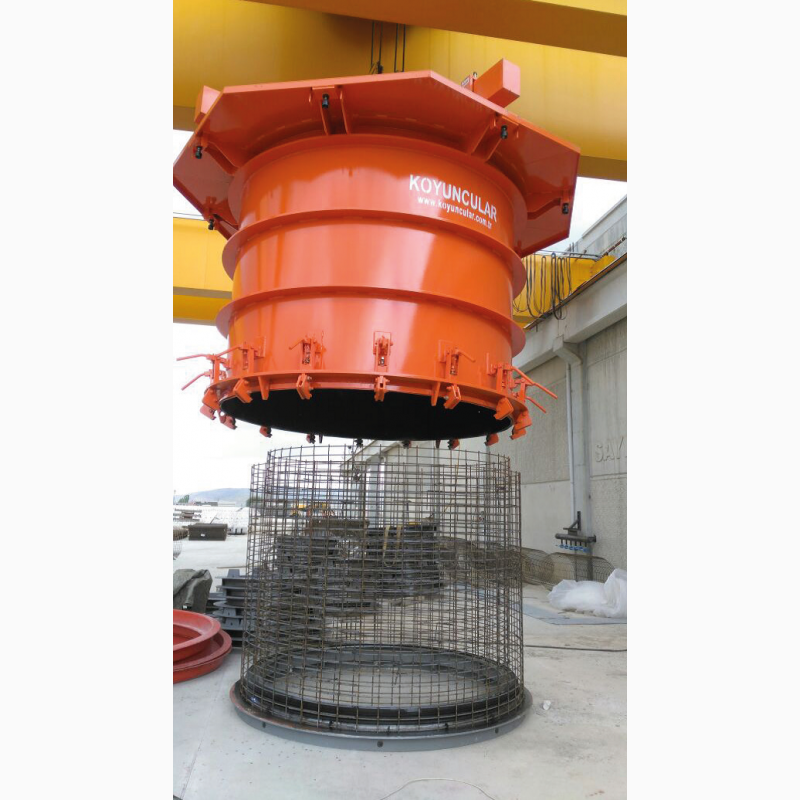

Machine mold connections are designed to be easier and faster to change. It is made using an oil vibrator of tubular type or centrifugal type.
Type adjustable vibrator connected to internal mold.

Our machines, manufactured as a result of the KMS quality and trust policy, have been working without problems for many years.
The biggest feature of KMS which increases the awareness of its industry is that it responds to all kinds of queries and provides technical support to the needs of our esteemed customers immediately after installation and maintains two-way relationship at any time.

Production volumes Height mm Production per shift of 8 hours in one print
in one print(//tractor-service.com)

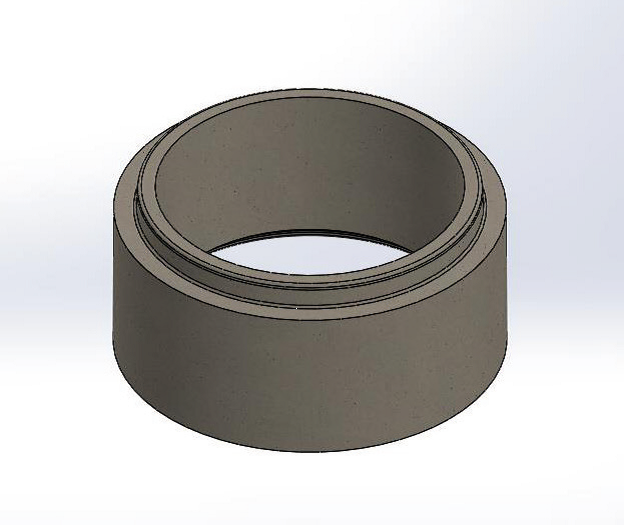

Ø800 1 pc. 250*1000 mm 80 pieces Ring-bracelet
Ø620 1 pc. 250*1000 mm 90 pieces Inspection chamber collar
Ø1000 1 pc. 250*1000 mm 70 pieces Inspection chamber collar
Ø1200 1 pc. 1000/2000 mm 60 pieces Inspection chamber collar

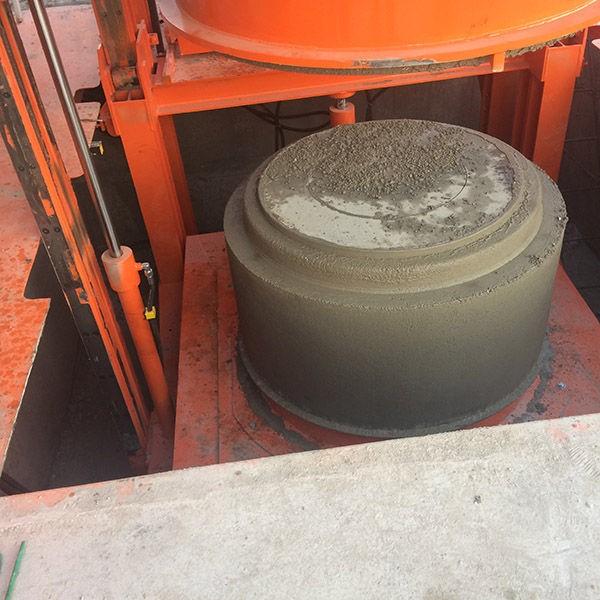

Ø620/1000 1 pc. 650/1000 mm 60 pieces Conical upper part of the chimney
Ø620/1200 1 pc. 650/1000 mm 60 pieces Conical upper part of the chimney

Technical characteristics
Operating system Manual/semi-automatic
Engine power 30 kW
Hydraulic pressure 120 bar
Ladle for mortar 1.5 m3

Products:

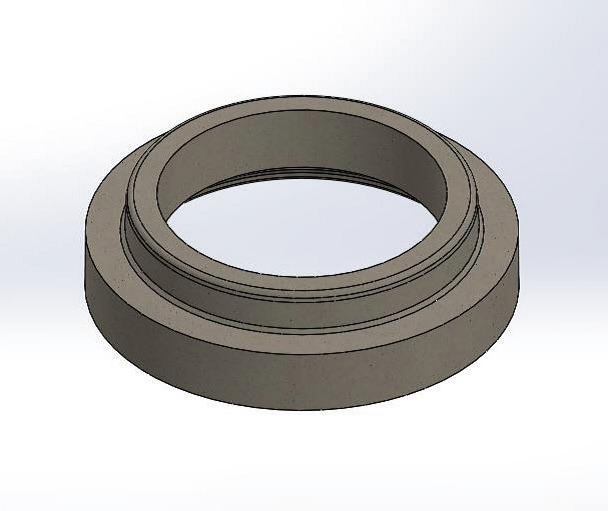

- Ø620/1000-1200 mm Integrated
Conical chimney element
- Chimney casing element Ø800
- Ø620 Built-in ring
- Ø1000/1200 Integrated chimney ring
