Autoclave stainless steel 24 cans for canning, Kharkiv region.

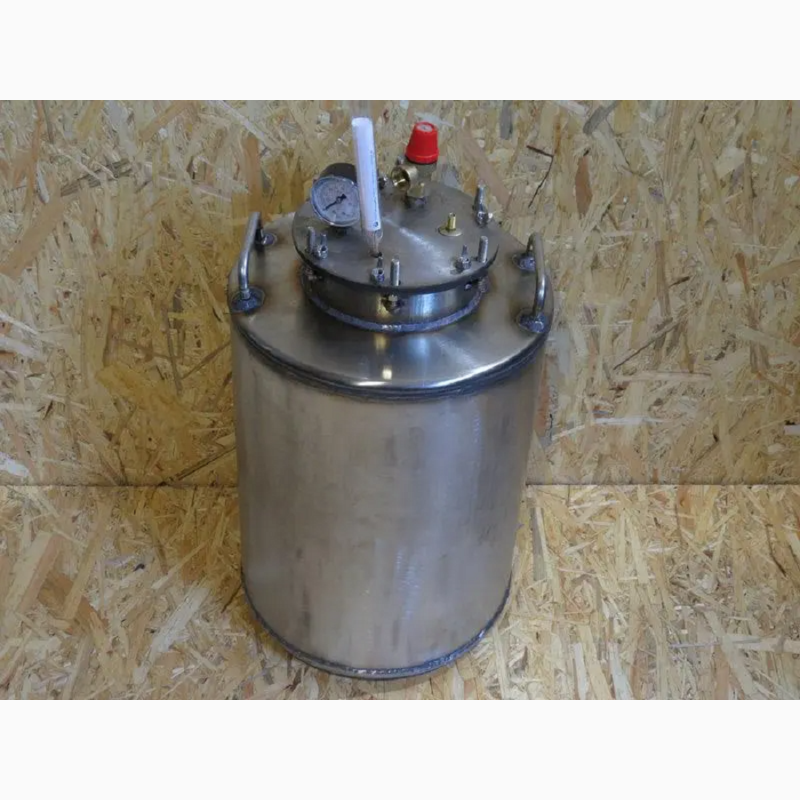

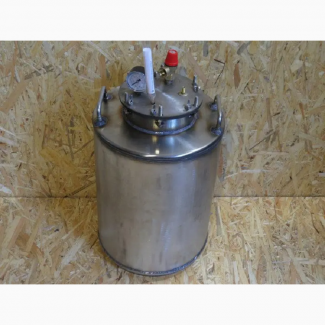

Autoclave stainless steel 24 cans household for canning

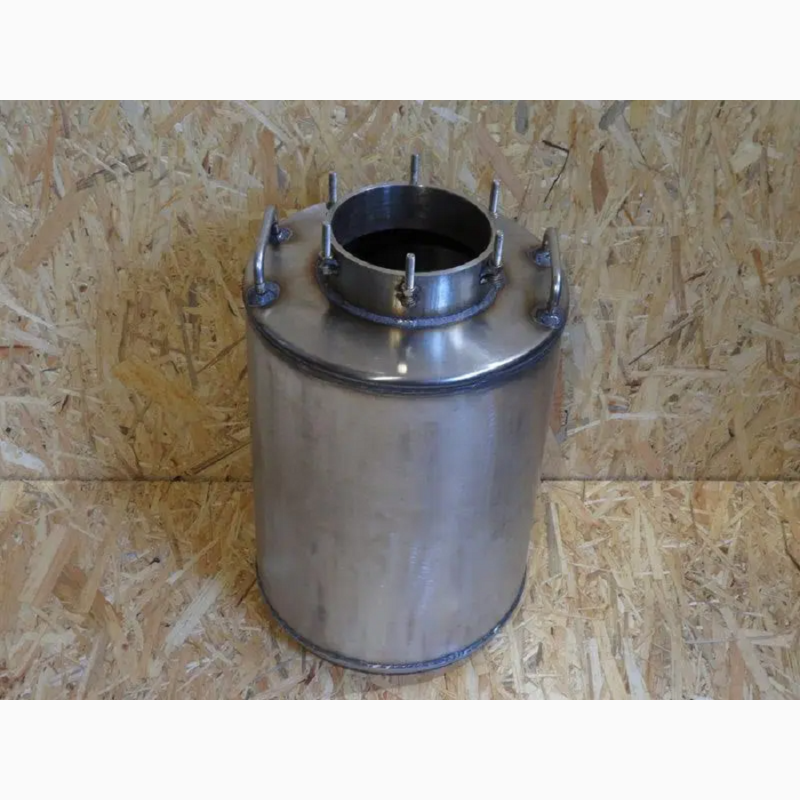

Detailsautoclave body stainless steel cut on a plasma cutting machine
Welded seams are made by argon arc welding by professional welders, the bottom and top of the autoclave are spherical, as in all pressure vessels.

working pressure inAutoclave stainless steel up to 6 bar
the working temperature of the liquid in the autoclave is up to 125°
body metal - 1.5mm.
autoclave lid metal - 8mm.
neck metal - 4mm.
(//tractor-service.com)
Overall dimensions:
Diameter - 300 mm.
the height of the autoclave is 620 mm (with a thermometer).

Complete set:

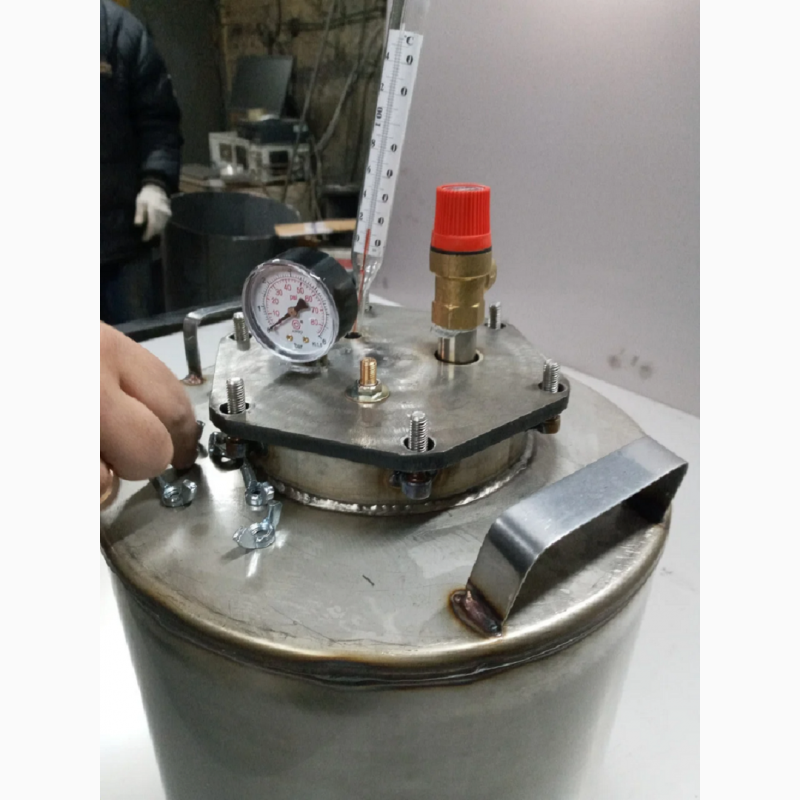

Safety valve 6 bar - 1 pc. (one of the most reliable)
Manometer 6 bar - 1 pc.
Thermometer - 1 pc.
Galvanized nuts (nuts) M8 - 6 pcs.
Grids for the bottom - 2 pcs. (lattice to the bottom with 2 halves).
Instructions - 1 pc.
Sealing ring - 2 pcs.
