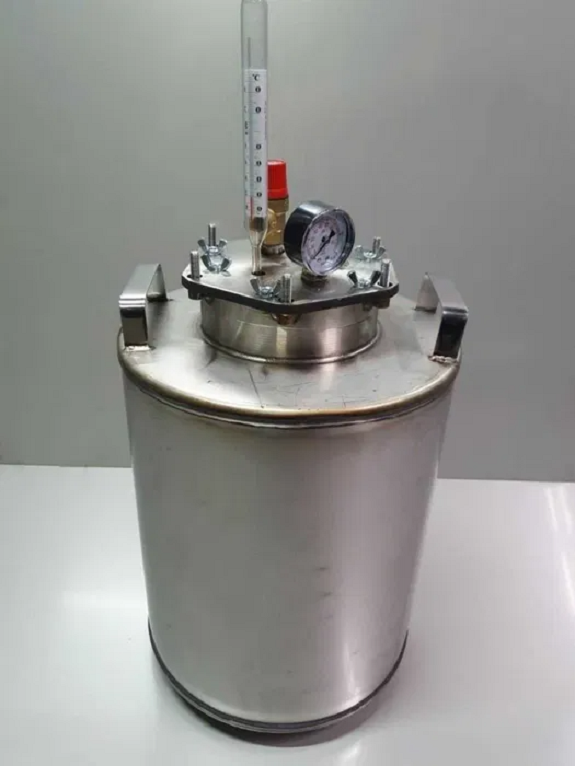

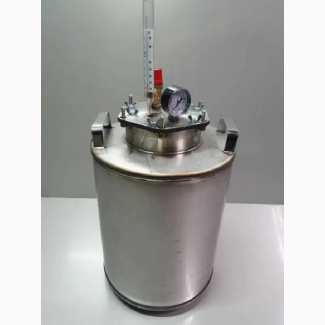

Autoclave stainless steel 16 cans for canning, Kyiv

Autoclave stainless steel 16 cans household for canning

Body detailsAutoclave stainless steel cut on a plasma cutting machine
Welded seams are made by argon arc welding by professional welders, the bottom and top of the autoclave are spherical, as in all pressure vessels.

working pressure inAutoclave stainless steel up to 6 bar
the working temperature of the liquid in the autoclave is up to 125°
body metal - 1.5mm.
autoclave lid metal - 8mm.
neck metal - 4mm.
(//tractor-service.com)
Overall dimensions:
Diameter - 300 mm.
autoclave height - 520 mm (with thermometer)

Complete set: 175
Клапан предохранительный 6 bar - 1 шт. (один из самых надежный)
Manometer 6 bar - 1 pc.
Thermometer - 1 pc.
Zinc-plated nuts (nuts) M8 - 6 pcs.
Grids for the bottom - 2 pcs. (lattice on the bottom with 2 halves).
Instructions - 1 pc.
Sealing ring - 2 pcs.
