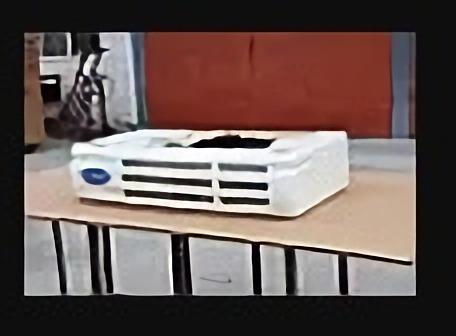

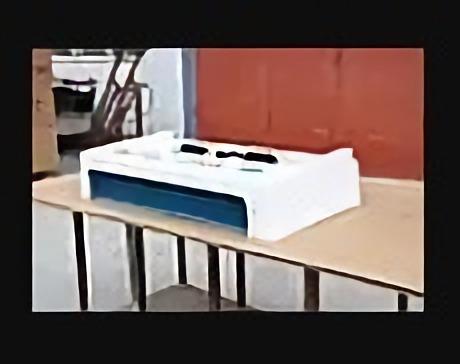

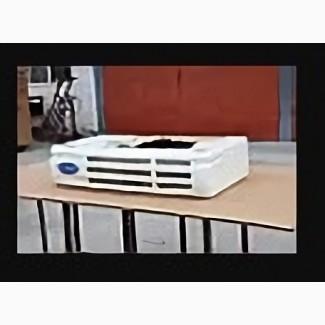

Roof refrigerator HT-350 installation for a van with a volume of 12-20 m³, Kharkiv region.

Type of drive: Refrigerator unit with a direct drive for a van
Installation type: Split-system on the roof.
Compressor: 5S14, 138 cm3/rev
Application: refrigerated vans with an internal volume of 12-20 m³
Refrigerant: R404a
"Huabonthermo HT-350" is specially designed for the transportation of fresh and frozen goods in refrigerators with a cargo container with a volume of 10 ~ 16 m³, driven by a car engine. HT-350 is an excellent choice for those who value strength, reliability and high performance at low maintenance and operating costs.
Design features
• Condenser on the roof; it is used for medium and large vans.• Direct drive from the car engine; fast cooling, high reliability and low failure rate.
• Smart design with large coils and a strong frame. Modern and rational design of the installation - elegant and durable fiberglass housing. Ultra-thin evaporators with a thickness of 150 mm, which save space for loading.
• Ultra-thin capacitor only 200 mm thick.
• Ease of installation, ease of maintenance, low operating costs.
• Digital and multifunctional control panel, accurate temperature control and ease of use, with electronic diagnostics and error notification.
• Additional CPR heating and STANDBY MODE.
Technical data
Model ХТ-350Т
Cooling capacity
(+38℃/100℉) Temperature Watts Btu
0℃ 3100 10577
-18℃ 1750 5971
Temp. Range -18℃~+30℃
Voltage 12V/24V DC
Defrosting Thawing with hot gas(//tractor-service.com)
Air flow volume 1750 m³/h
Refrigerant and volume R404a/1.4 kg
Compressor Brand GUANYU
Model 5С14
displacement 138 cm3/rev
Capacitor Coil Parallel capacitor
Fan No. 1 piece.
Overall dimensions 1010*540*250mm
Weight 28.5 kg
Evaporator Coil Inner corrugated copper tube and aluminum fan
Fan number 2 pcs.
Overall dimensions 980*570*210mm
Mass 20 kg
The recommended internal volume of the van is 12~20m³.
Why we choose the HT-350 refrigerating unit • Cooling options -18°C frozen or -5°C cold with GREAT REFRIGERATION PRODUCTIVITY.
• Environmentally safe refrigerant R404a, cooling to -18°C ~+25°C for various customer requirements for temperature control solutions.
• The smallest thickness of the capacitor, the minimum height of the vehicle.
• Sturdy frame with a well-designed metal plate and reinforced fiberglass shell.
• Increased size of the condenser coil to meet the customer's requirements for high cooling capacity and fast cooling.
• Competitive prices and reliable cooling for clients and users around the world.　
• Continuous cooling on the road (charged from the car battery) and when the engine is turned off when connected to the outlet.
• Contemporary design.
Receiving goods from our ownwarehouse in Kharkov. Call! We will answer all questions. Delivery throughout Ukraine. Order!
