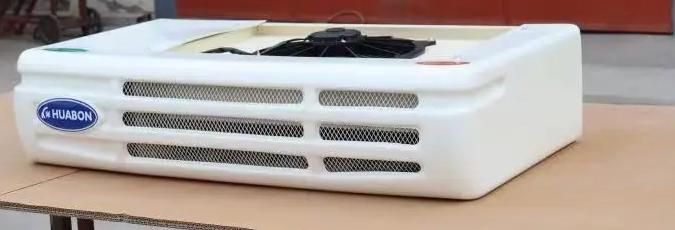

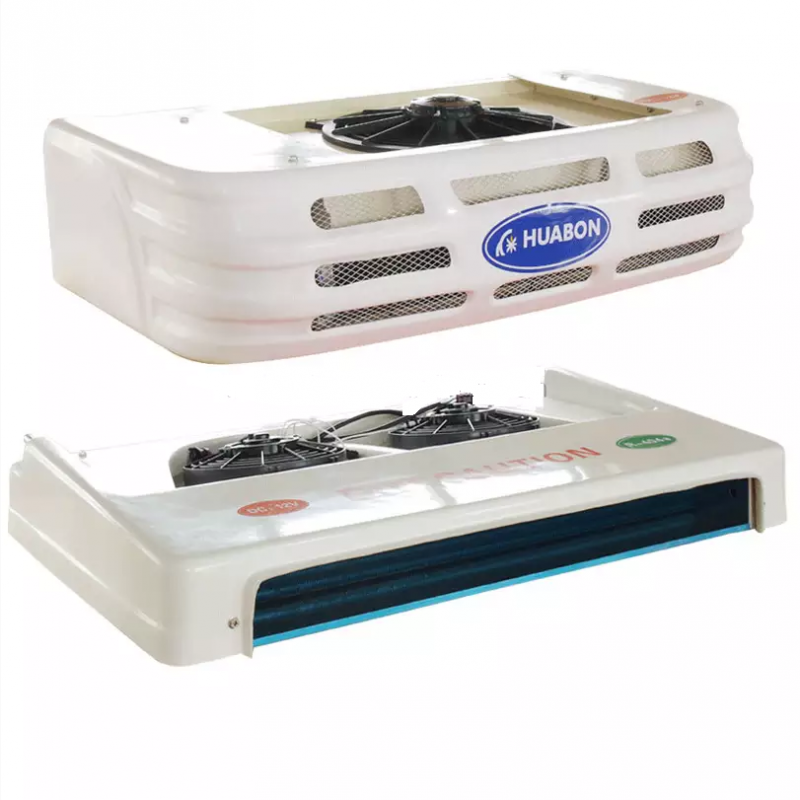

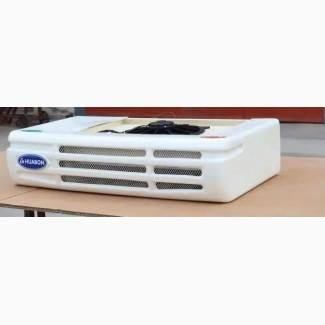

Refrigerating unit HT-280 for small vans, 8-15 m³, Kharkiv region.

Type of drive: Small refrigeration unit with direct drive from the engine
Installation type: Split-system on the roof.
Compressor: 5S14, 138 cm3/rev.
Application: vans with an internal volume of 8~15 m³
Refrigerant: R404a.
"Huabonthermo HT-280" is specially designed for the transportation of fresh and frozen goods in refrigerators with a cargo container with a volume of 8 ~ 15m³, driven by a car engine. HT-280 is an excellent choice for those who value strength, reliability and high performance at low maintenance and operating costs. Features of NT-280
• Direct drive from the car engine; fast cooling, high reliability and low failure rate.
• Smart design with large coils and a strong frame. Modern and rational design of the installation - elegant and durable fiberglass housing. Ultra-thin vaporizers that save space for loading.
• Ultra-thin condenser with a thickness of only 200 mm, suitable for all types of small and medium-sized refrigerators. The thickness of the ultra-thin two-fan evaporator = 150 mm.
• Ease of installation, ease of maintenance, low operating costs.
• Digital and multifunctional control panel, accurate temperature control and ease of use, with electronic diagnostics and error notification.
• Additional CPR heating and STANDBY MODE.
Technical data

Model NT-280
Cooling capacity
(+38℃/100℉) Temperature Watts Btu
0℃ 2650 9042
-18℃ 1430 4879
Temp. Range -18℃~+30℃
Voltage 12V/24V DC
Defrosting Thawing with hot gas
Heating Heating with hot gas(//tractor-service.com)
The volume of air flow is 1750 m³/h
Refrigerant and filling volume R404a/1.0 kg
Compressor Brand GUANYU
Model 5S14
displacement 138 cm3/rev
Capacitor Coil Parallel capacitor
Number of fans 1 pc.
Overall dimensions 870*520*270 mm
Weight 25 kg
Evaporator Coil Inner corrugated copper tube and aluminum finning
Number of fans 2 pcs.
Overall dimensions 1010*570*150mm
Weight 15 kg
Recommend the internal volume of the van 8~15m³
Why we choose the HT-280 refrigeration unit
Cooling options up to -18°C during freezing or up to -5°C during cooling
• Environmentally safe refrigerant R404a, cooling down to -18°C ~+25°C for various customer requirements for temperature control solutions.
• The smallest thickness of the capacitor, the minimum height of the vehicle.
• Sturdy frame with a well-designed metal plate and reinforced fiberglass shell.
• Increased size of the condenser coil to meet the customer's requirements for high cooling capacity and fast cooling.
• Competitive prices and reliable cooling for clients and users around the world.　
• Continuous cooling on the road (charged from the car battery) and when the engine is turned off when connected to the outlet.
• Beautiful appearance.
The product is in our own warehouse in Kharkiv. Call! We will answer all questions. Delivery throughout Ukraine. Order!
