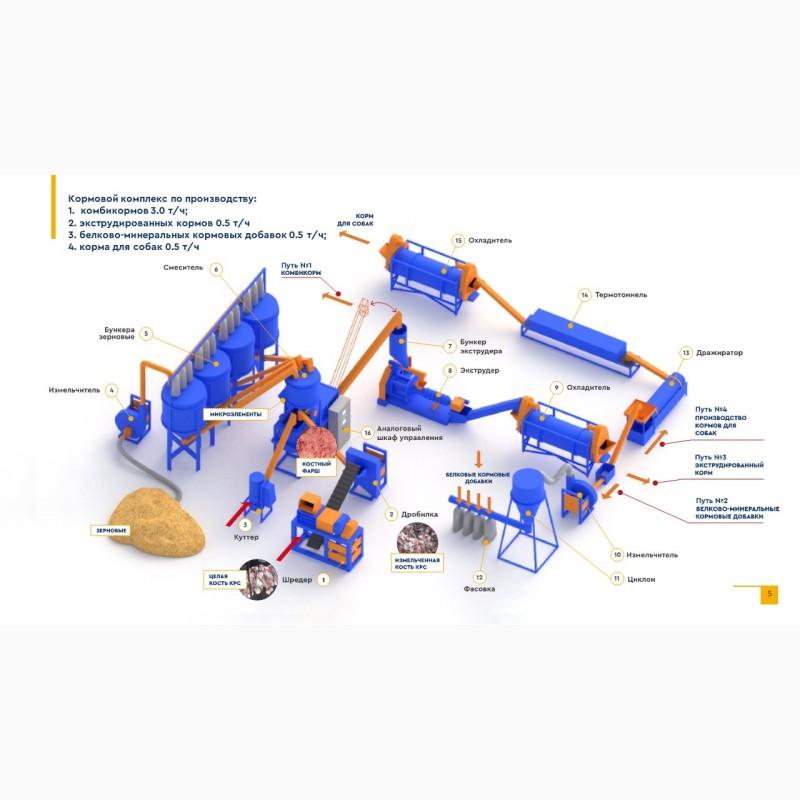

Bone processing. Multi-functional feed complex, Zaporizhia region.

Brief technical characteristics of the main equipment

Shredder shk1-03-05/15 for preliminary crushing of cattle bones.
● Nominal productivity is about 700 kg/h, maximum – 3000 kg/h
● Grinding fraction about 50 mm
● Power consumption – 15 kW
● The gearbox is driven by a 15 kW, 1500 rpm engine through a belt drive.
● Configuration: single, the presence of fixed knives. Выгрузка нижняя. Geared drive. Loading window 500x300 mm.

Crusher shk600/30 bones for minced meat fraction.
● Productivity about 1500 kg/hour
● the size of the driving bone is about 50 mm.
● grinding fraction up to 3 mm
● consumed power – 30 kW.

Mixer horizontal smk 1.0/11
● Total volume 1.0 m³ (1.5)
● Working volume 0.7 (1.5 m³ (1.2)
● The maximum weight of a single load is 0.7 t
● Mixing time is 4-6 minutes.
● Mixing coefficient 92-98%
● Two-blade ribbon stirrer, pen thickness 6.0 mm
● The cover is conditionally airtight, the hatch (lattice), pneumatic shock absorbers, the opening block.
● Выгрузка at the end (in the center) of the mixer
● Weighing storage aspiration bunker
● System of supply and spraying of oil (second liquid)
● Weighing premix dispenser
● Product material - common steel
● Drive power 11 kW.

Hopper dispenserextruder
● Volume 0.6 m³
● Vertical stirrer
● Horizontal dispenser for feeding the material to the extruder
● Power consumption 3 kW

Extruder ps 250
● Productivity about 500 kg/h
● The power of the drive is 37 kW.(//tractor-service.com)

Belt (drum) cooler
● Geared drive
● BP fan
● Cooling in a "boiling" layer.
● Power consumption 4 kW

Crusher extruded product
● Power consumption 7.5 kW
● The fraction of the crushed product is 100-300 µm
● Productivity 700 kg/h

Cyclone

Packaging conveyor
● Power consumption 2.2 kW
● Packing according to the volumetric dispenser principle

Drazirator
● Drum type, inclined, auger
● Oil bath
● Introduction of vitamin supplements
● Operation mode – continuous
● Power 5 kW

Thermotunnel
● Tape, multi-stage
● Electric heating medium
● The drying temperature is about 40°C.
● Operation mode – continuous
● Power 15 kW

Belt (drum) cooler
● Geared drive
● VR fan
● Cooling in a "boiling" layer
● Power consumption 4 kW

The line can be supplied in different configurations, as well as its separate elements.
