Mines combined feed plant "GNOM" 4000 kg, Poltava region.

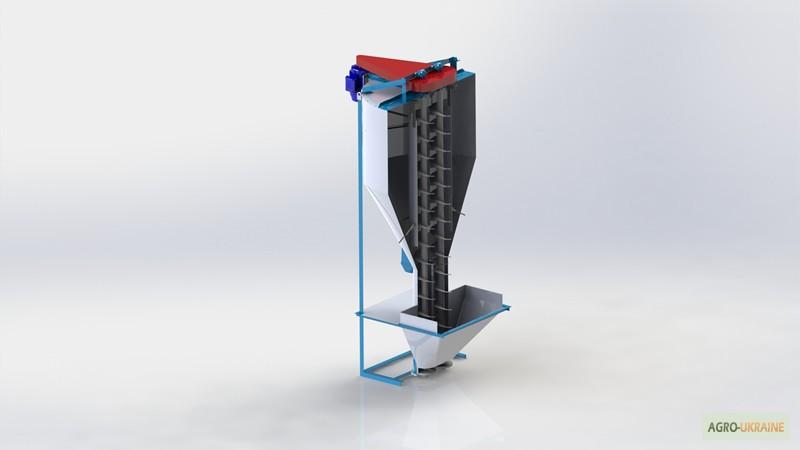

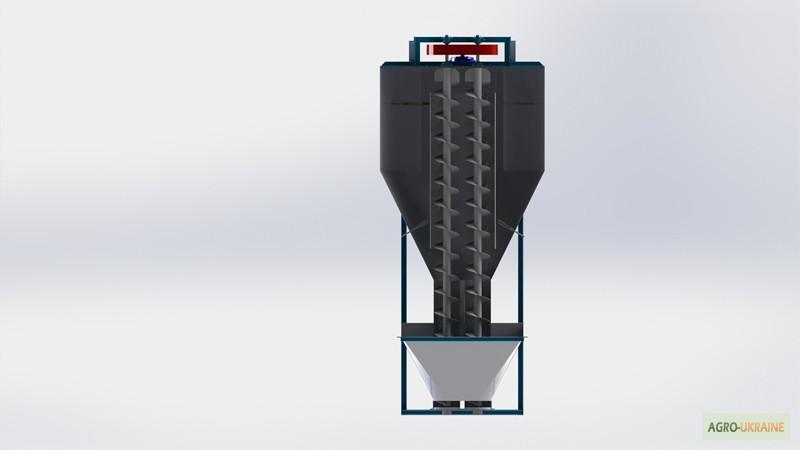

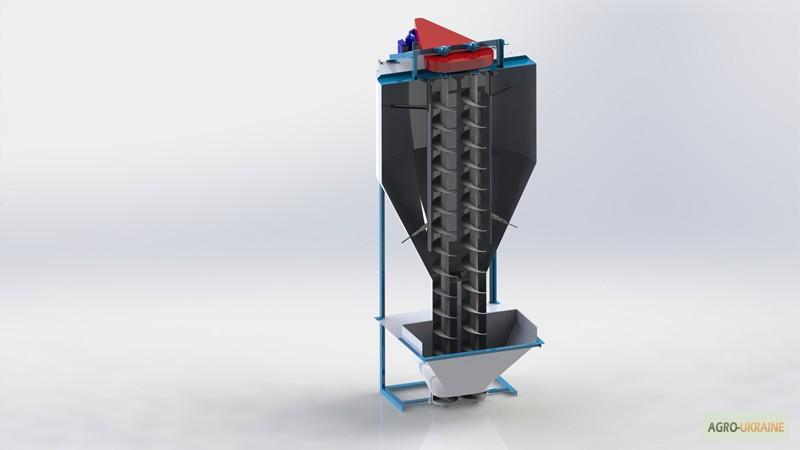

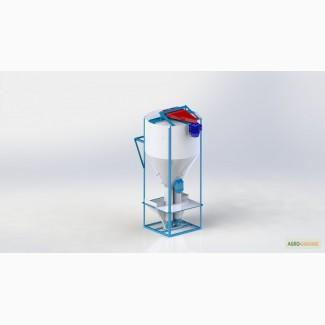

The compound feed plant consists of a vertical mixer and a self-priming hammer crushershredder with a suction hose up to 15 meters long and the ability to simultaneously use up to 5 hoses are working in turn, as well as their full automation.

The crusher is used to grind all types of grain crops, such ascorn, barley, soybeans, wheat, etc. into the required fraction, and then the prepared crushed materials enter the mixer hopper, where they are mixed with other ingredients in powder form.

　This equipment is a product of Bioecoprom Group with a unique design and technical solutions. The mixer has a strictly balanced central shaft, the bearings are protected by an industrial sealant to ensure a long service life. The mixer can mix homogeneous mixtures from 15 minutes, thanks to the double mixing system.

Features and advantages:

1) High efficiency with low costs of grinding and mixing at the same time.

2) Removable materials are easy to replace, durable, convenient to use and maintain.

3) Economical and environmentally friendly, with a low level of noise and dust.

4) Short mixing time (about 15 minutes), stable and reliable in operation.

5) Compact structure.(//tractor-service.com)

Upon request, an addition can be made to the mixer's hopper, which allows mixing seed materials for grain treatment before sowing. Many advantages make this equipment universal and practical, which is necessary for any farm.

Technical characteristics of a verticalfeed mixer:

Capacity (kg) 4000
Capacity (l) 8550
Height mm 3000
Outer diameter (mm) 1900
Engine power kW 5
Mixing time for 98% 25
Двигатель (European certification) Belarus
Metal thickness mm. so 3
Automatic engine protection +
Bearings Japan
Screw revolutions rev. min. 700
Diameter of screw screws mm. 30
The price of the mixer includes: control unit, bags for dust collection (up to 2m).
