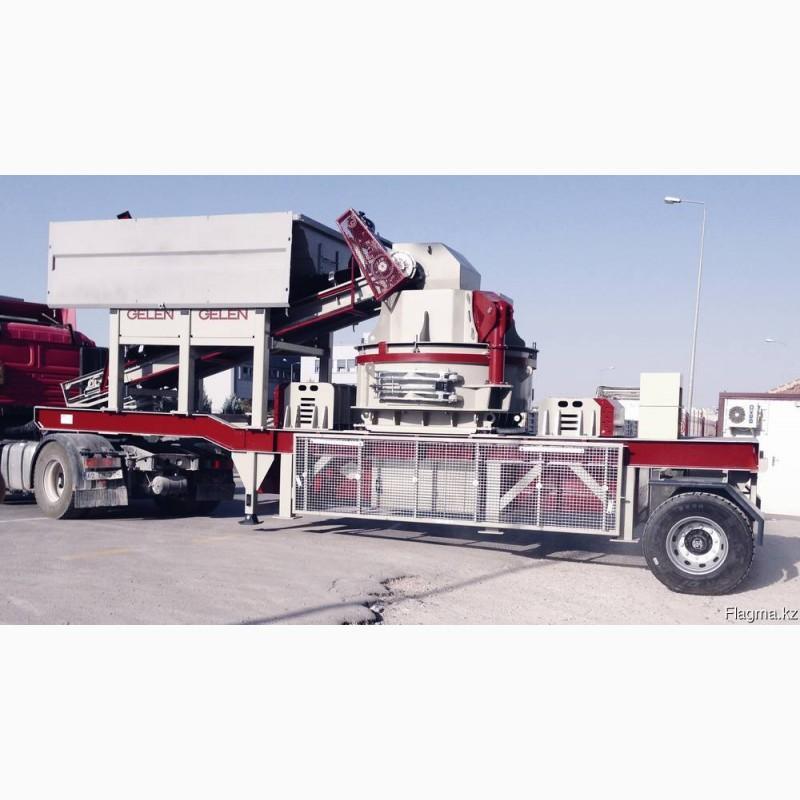

Mobile crusher Polygonmach V-90, 200-250 t/h, Turkey, Kyiv

Mobile crushing and sorting plant Polygonmach V-90 is also called MOBILE SAND MAKING MACHINE - this is an ideal solution for the production of very fine material, also known as sand, with a particle size from 0 to 5 mm and excellent cubic shape. The V-90 is the result of sophisticated engineering and advanced design, high-quality components with durable and amazing build quality.

In addition to materials that are provided by preliminary crushing with primary and secondary crushing operations, it is also possible to directly supply the system with natural stone that does not exceed 45 mm.

Any material with different degrees of hardness, such as limestone, basalt, granite, dolomite, gabbro, can be crushed by V-90 with satisfactory characteristics.

V-90 Production capacity varies from 200 to 250 t/h depending on the level of impact viscosity of crushed aggregates. In addition to sand (fine material), it is also possible to simultaneously produce 3 other finite fractions.

Loading hopper with vibrating feeder
Impact crusher with vertical shaft VSI 900 CR
The feeding conveyor between the hopper and the VSI crusher

Conveyor between the VSI crusher and the vibrating screen

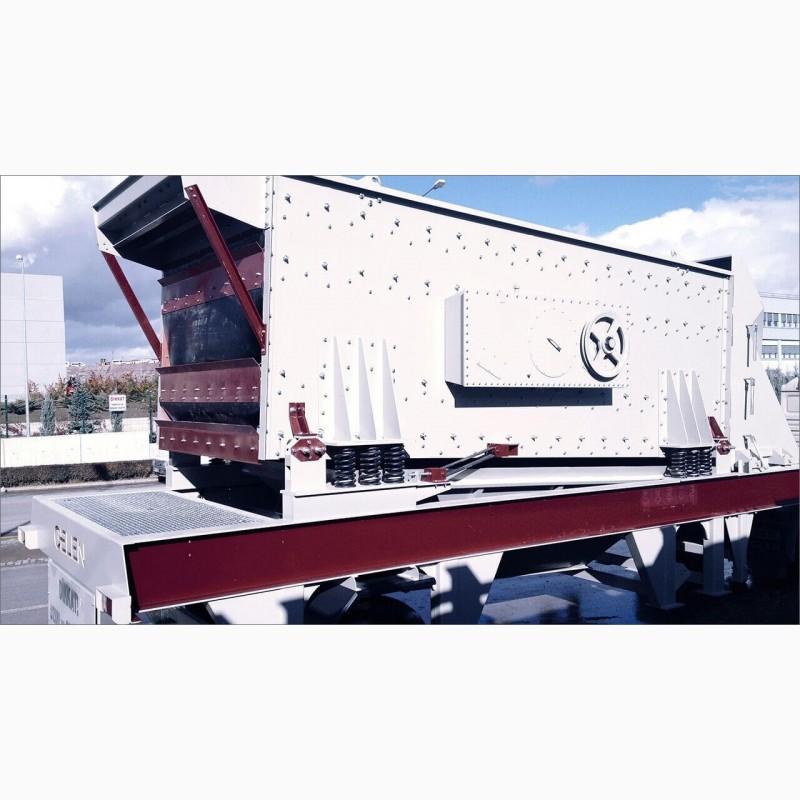

Dropped with 3 levels.

Feedback conveyor for oversized material
Warehouse conveyors

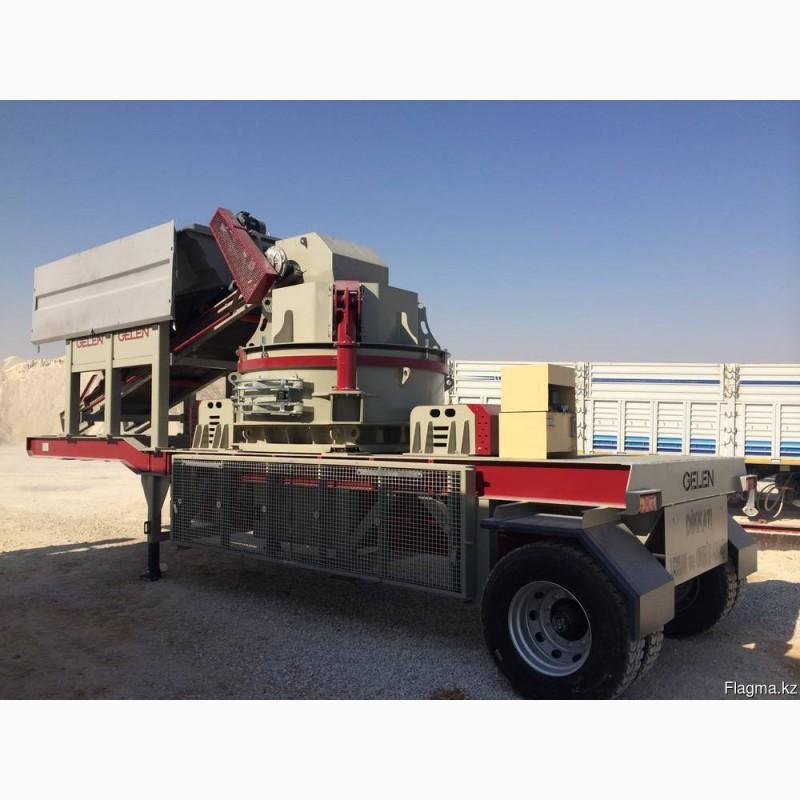

Wheeled mobile chassis with hydraulic supports

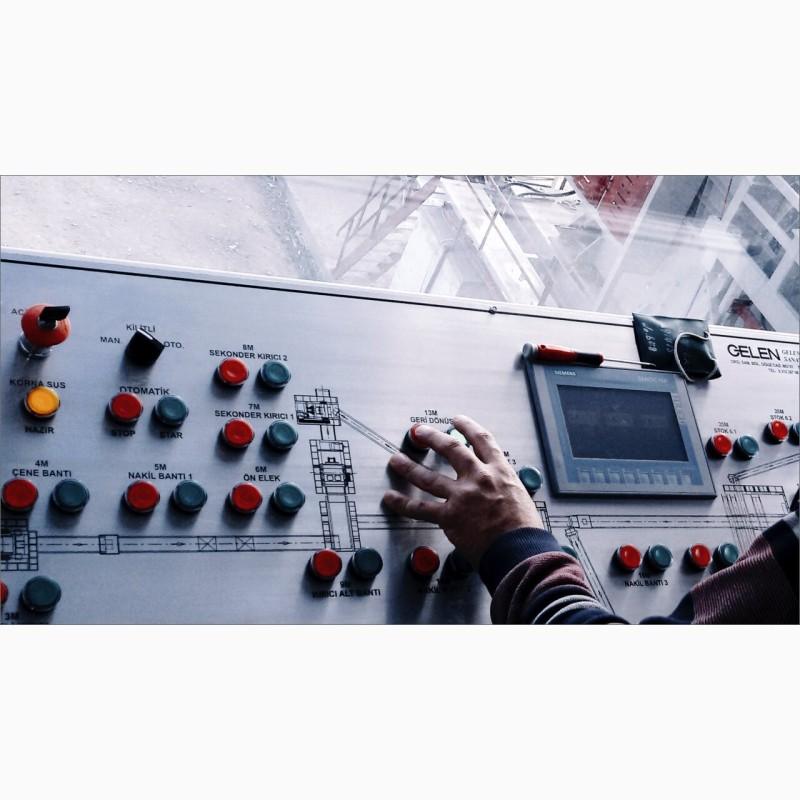

Automation system with PLC and remote control
Dust removal system

Diesel electric generator set (option)
If necessary, it is possible to adapt the electric generator to the installation chassis.

V-90 is a convenient combination that ensures ease of installation / assembly. The installation can be put into operation in a very short time. If necessary, it is possible to provide a loading hopper and conveyors with a hydraulic opening mechanism, and in this case the plant can be started without the need to use any external equipment, such as a crane,loader etc.

V-90 is equipped with a high-tech automation system, which includes electronic components and a high-class SIEMENS-SCHNEIDER PLC. V-90 is controlled only by the tablet controller.

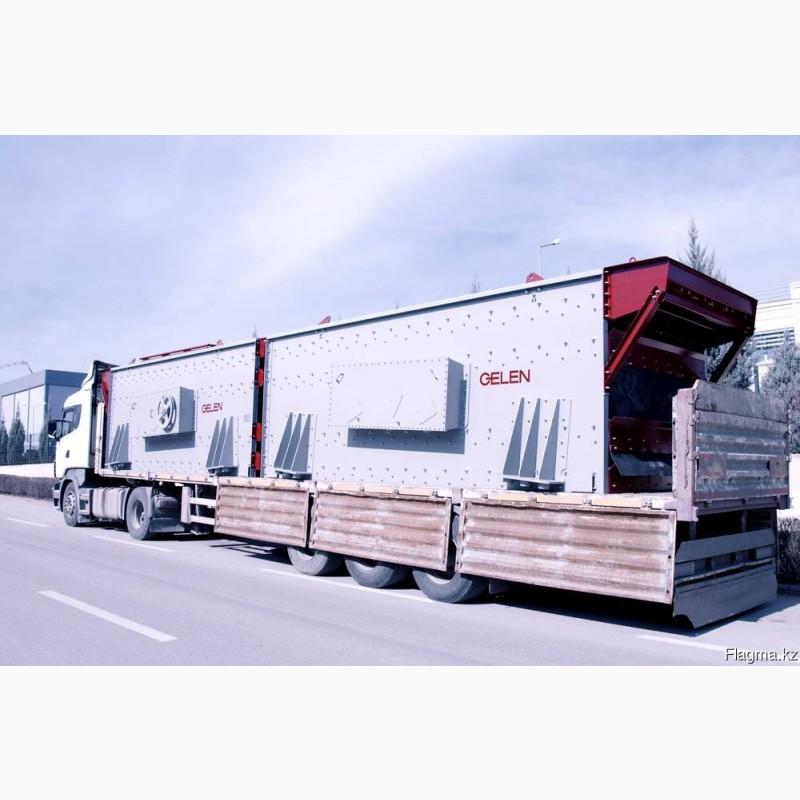

The overall dimensions of our mobile units are determined in accordance with international road transport regulations, and the V-90 is easily transported between workplaces with only one tractor.

Production capacity 200-250 t / h(//tractor-service.com)

The maximum loading size is 45 mm

Loading height  4.2 meters

Basic configuration

VSI Crusher + Vibration screen

The total power of the engine is 430 kW

Requirements forelectric generator 700 kVA

The weight of the plant is 35 tons

Plant dimensions 14 (L) x 3 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.
