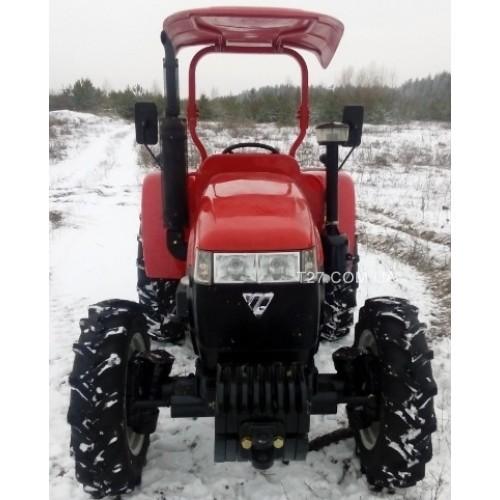

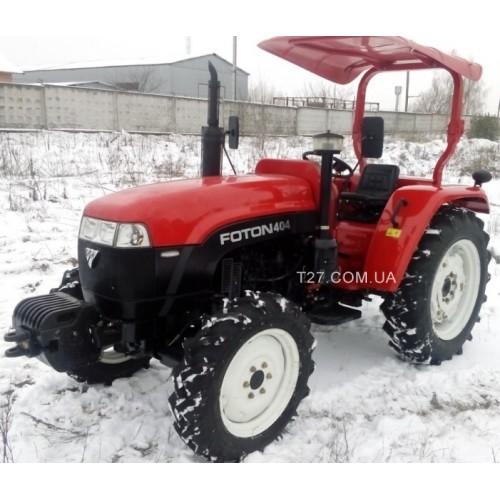

Lovol / Foton-404 tractor with visor, Kiev region.

Reverse. Front and rear loads. Front axle swinging portal type. Front and rear towing devices. Air filter of the inertia-oil type. A metal mesh in front of the radiator, a glow plug, two hydraulic pumps. Additional hydraulic distributor. Muffler with protective mesh.

Safety arc with sun visor. Rear-view mirrors, running boards, handles on the fenders Brake and clutch pedals have stops. Separate brake pedals. Tool box.

Suspended seat with two springs and a shock absorber. Combined instrument panel, emergency alarm, sound signal. Manual gas. Central screw with hook. Socket fortrailer. Two rear working lights.

Features:

Working volume (cm3) 2,672

Engine power (kW / hp) 32.4/40

Nominal rotation frequency (rpm) 2 400

Engine type four-stroke

Number of cylinders 4

Type of fuel diesel

Type of liquid cooling system

Specific fuel consumption (g / kW · h) 245

Type of gearbox (4+4)x2 reverse

Two-disc clutch type

Wheel formula 4 x 4

Design mass (kg) 2080

Front counterweights yes

Nominal traction force (kN) 12
(//tractor-service.com)
Maximum speed (km/h) 35

Length, including rear suspension (mm) 3,980

Width (mm) 1,650

Height (mm) 2 130

Wheelbase (mm) 1,990

Front trackwheels (mm) 1 250

Rear wheel track (mm) 1200-1500

Agricultural clearance (mm) 370

The rear differential is locked mechanically

The size of the fronttyres 8.3-20

The size of the rear tires is 12.4-28

Power steering yes

Number of hydraulic pumps 2

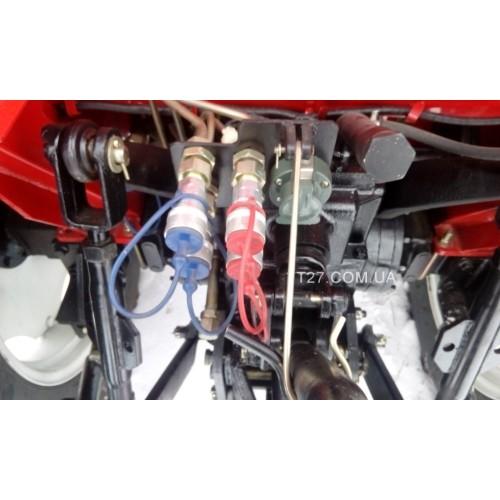

Additional distributor yes

Load capacity of the rear hitch (kg) 740

PTO rotation frequency (rpm) 540 / 1000

Fuel tank (l) 42

Radiator (l) 12

Hours counter yes
