Hydled generator from tractor PTO AV 22 (17, 6 kW, 3f~), Khmelnytskyi region.

Hinged tractor generator for 380 V for MTZ-80/82 tractor

The well-known European company FOGO manufactures high-quality AgroVolt generators at a factory in the city of Wylkowice (Poland).
A three-phase generator is needed when the light is turned off, and the work needs to be done urgently. The generator is needed where it is not possible to supply 380V. These are remote places such as: farms, field grain storages, field repair teams, water wells. And also milking parlors, refrigerators for milk coolers.
The tractor generator combines a low price and high power, excellent performance quality.
The tractor generator is purchased by those who already have an MTZ tractor, they hang it on the tractor hitch and connect it via the cardan and the generator works. In addition, the tractor rotates the generator at idle speed and does not spend much DT. Hanging generators are many times cheaper than stationary generators.
Use in farms:
For the repair of equipment in garages on tractor teams (tractors, combines, seed drills, disk units, trucks, etc.)
For on-site repairs in field conditions, when it is necessary to urgently repair a combine or tractor in the field (cut with a grinder, boil, or illuminate the equipment at night),
At the grain warehouse, clean and dry the grain, but there is no 380V, (under Heap cleaners (grain cleaning machines) OVS -25, ZN grain throwers 60
On a livestock farm in a cowshed - milk cows, connect a manure conveyor, etc. (for milking complexes and milking installations.)
Agrovolt spring-mounted generator from tractor PTO:

Characteristics of the generator:
Nominal power (3 phases) — 22000 V•A (17600 W);
Nominal power (1 phase) — 8800 V•A (8800 W);
Nominal current (3 phases) — 31.8 A;
Nominal current (1 phase) — 38.3 A;
Current frequency 50 Hz
Voltage — 400 V/230 V;
Gearbox:
Type — gear;
the generator is synchronous;
The level of protection is IR23
Transmission oil – SAE 80W-90
The volume of oil in the gearbox is 0.7 l.(//tractor-service.com)
Revolutions - 3000 rpm
Tractor parameters:
Tractor engine power - 60 hp. (45 kW)
Tractor PTO power - 33 l / s (25 kW)
PTO speed - 540 rpm.
Complete set:
4-pole automatic protection against various current drops;
Automatic protection against electrocution of people (RCD)
There is a thermal switch
2 sockets 16 A with protection IP44 230V 1 phase;
1 socket 32 A with protection IR44 400V 3 phases; 178
Розетка 1-фазная ~ МАХ мощности – опция,
The grounding kit is an option,
The display panel displays:
Voltage - U; current – ​​I, current – ​​P; current frequency - H; power;
A good engine hour counter is installed,
Additionally:
Manufacturer AgroVolt (Poland)
The frame of the generator is made of durable steel,
Size - 930 x 800 x 932 mm
Weight - 146 kg.

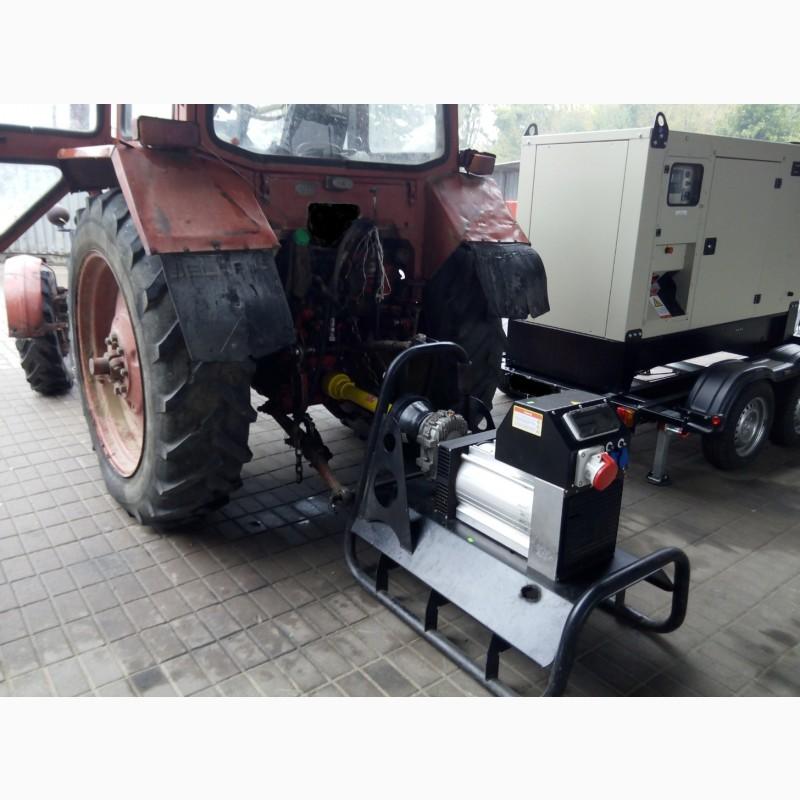

The generator is hung on the rear hitch of the tractor. The generator is driven from the power take-off shaft of the tractor through the cardan shaft (generator 6 splines/tractor 8 splines)
Warranty - 12 months
Generators can be aggregated with domestic and imported tractors, such as MTZ, YuMZ, KhTZ, Deutz-Fahr, John Deere, Case IH,Massey Ferguson,New Holland , Fendt, Claas and others.
