Disk unit of the new generation TAURUS 2.4 n, Vinnytsia region.

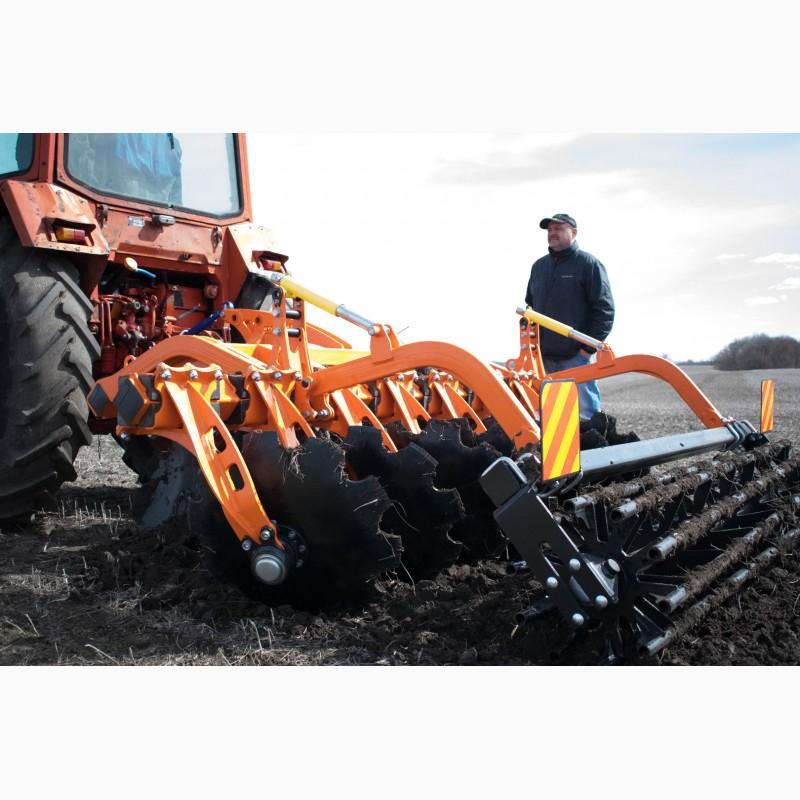

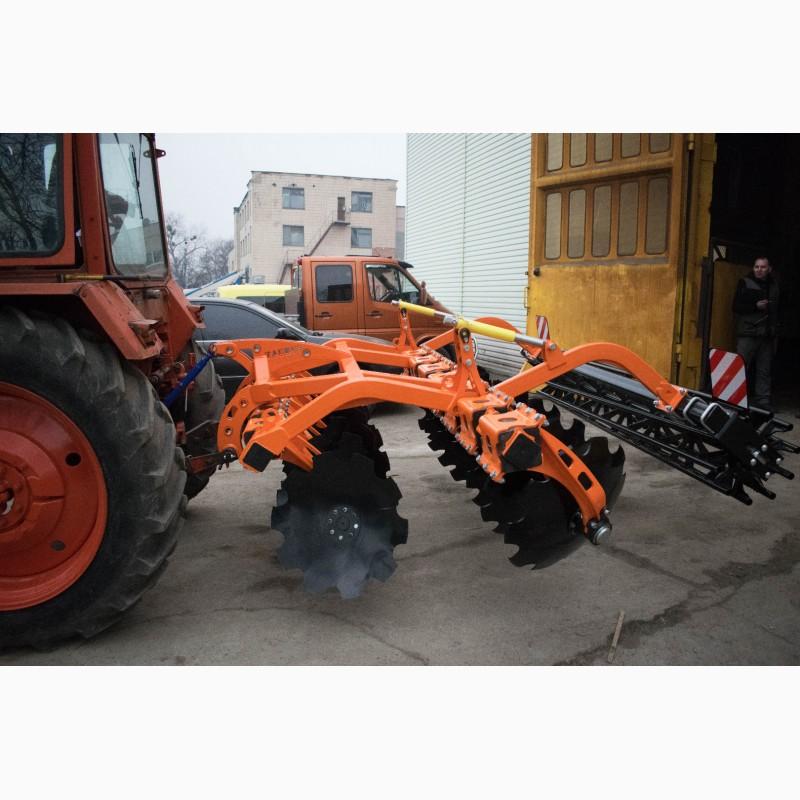

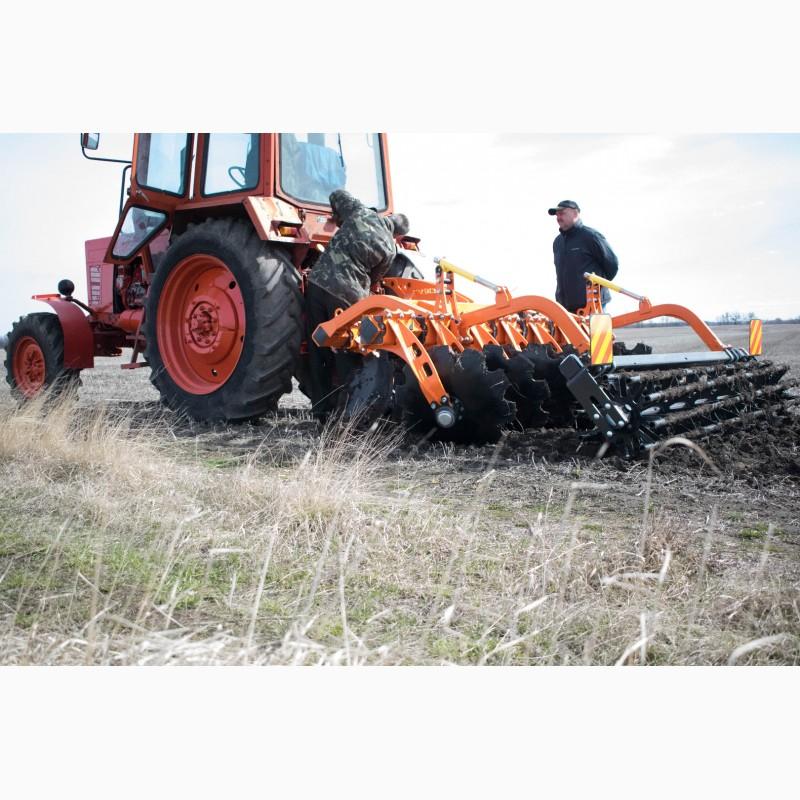

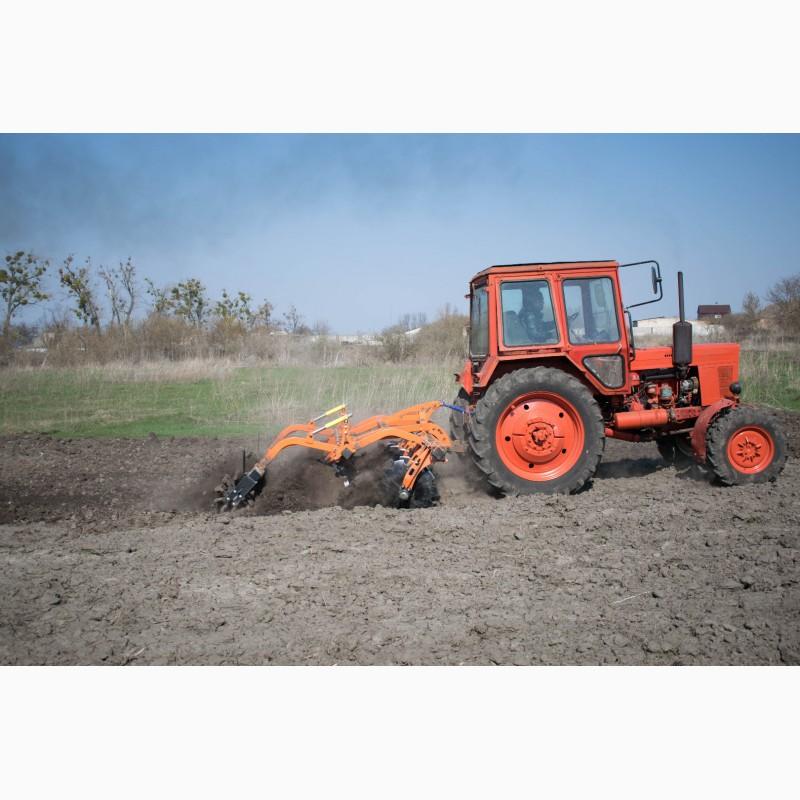

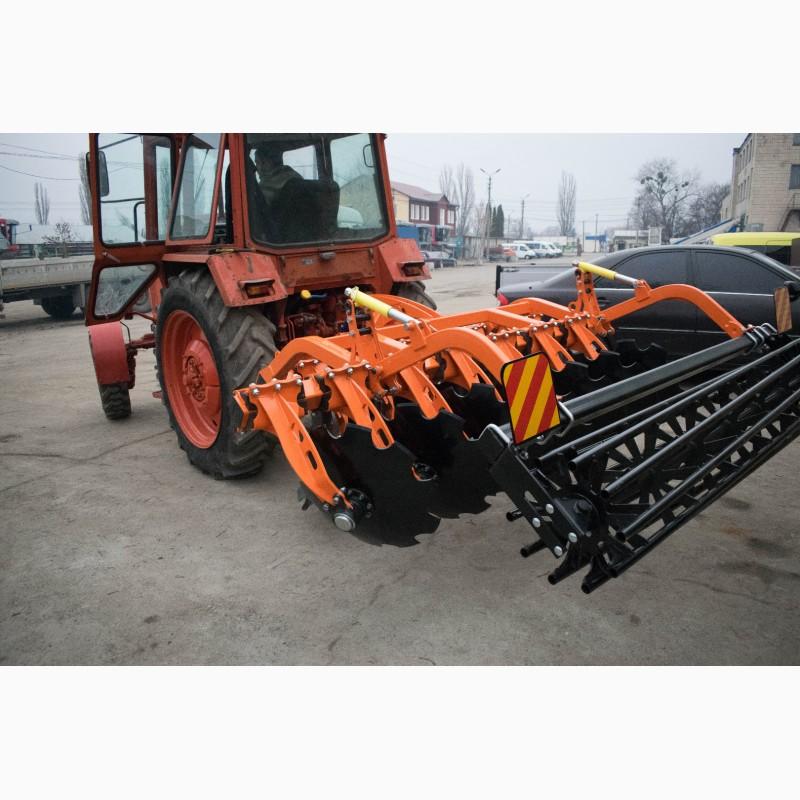

Taurus-2.4n

The harrow is intended for the cultivation of compacted soils of various mechanicalcomposition with crushing and wrapping of crop residues in the soil at humidity up to 20% and soil hardness up to 3.5 MPa.
The harrow is designed to work with tractors of the 14 kN (1.4 t·s) class, equipped with a three-point attachment system (MTZ-80/82, MTZ-100/102, MTZ-6 kl and others with a power of 80...110 hp).
Advantages over analogues:
- the bearing unit is located outside the active zone of movement of the processed soil, and has cassette protection filled with composite grease.
- The racks are attached to the frame on metal brackets between which and the main frame rubber torsion bars are installed, which in turn absorb the loads that occur during the processing of over-compacted soils, thereby extending the life of the unit.
- Fasteningdiscs on the outside of the bearing assembly ensures their quick replacement without disassembling the bearing assembly,
-Disks made
-The design of the roller, which is made of a thick-walled pipe, has an extended service life and prevents it from clogging during the cultivation of overmoistened soils.
-Innovative design of bearing assemblies installed on the rollers of this unit remove static and dynamic loads from the roller.

The harrow can be operated in all soil and climatic zones.
TECHNICAL CHARACTERISTICS(//tractor-service.com)
type Hinged
The width of the catchment is constructive, not less than 2.4 m
Productivity per hour of prime time, ha, no less than 1.8
The depth of tillage, cm 5-18
Operating speed, km/h 8-12
Transport speed, km/h 20
Product weight, kg 1080
Overall dimensions, mm: 173
Довжина 2600 ± 150
Width 3200 ± 150
Height 1150 ± 150
Ground clearance, mm, not less than 300
Term of service before write-off 7
Transfer to the transport and working position is hydraulic,
Service, person. 1
