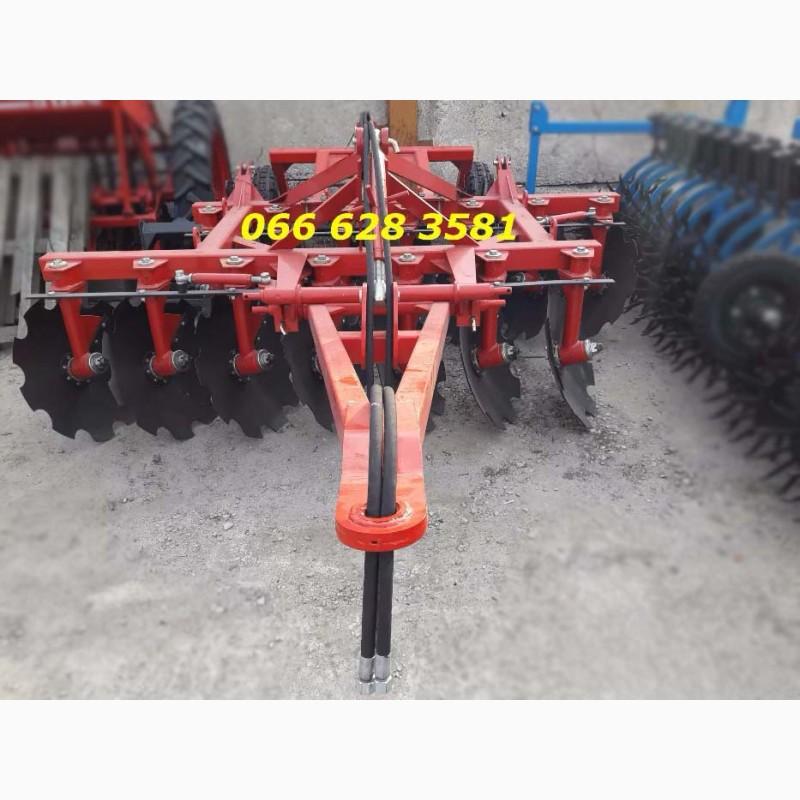

New trailer mounted disk unit BDN-2, 4P for MTZ-80/82 YuMZ, Kirovohrad region.

The unit is intended for processing soils of different mechanical composition, with crushing and introduction of plant residues into the soil under the conditions - are used for tillage-free soil treatment, to a depth of 8-18 cm, by the shuttle method with simultaneous loosening of blocks, leveling of the soil surface, and its rolling
The units work as follows - when moving across the field, the disc performs a rotational movement, the friction forces of the soil on the discminimum, which provides significantly lower energy consumption for plowing, high efficiency and, as a result, fuel economy, compared to plows. When in contact with the cleaning device, the soil is evenly removed from the concave side of the discs, providing a flat surface of the soil on the cultivated field, and plant residues are worked into the soil. The presence of two rows of discs ensures intensive grinding of the soil. Support rollersrollers, the position of which is regulated, with the help of screw devices, provide the necessary depth of soil processing and grinding of lumps in the upper layer of the soil. Also, in the design of the aggregates, it is possible to change the angle of attack of the disks, depending on the type and humidity of the soil
Soil hardness - no more than 3.5 MPa;
Soil moisture - no more than 27%;
The height of harvest and plant residues is up to 30 cm.

Technical characteristics
Type: spring;
The width of the grip is constructive, m: 2.4;
Fuel consumption, l/ha: 7.2 - 8.5;
Productivity during the main time, ha/h: 1.8 - 2.2;
Depth of soil cultivation, cm: 8 - 18;
Working speed of movement, km/h: 8.0 -12.0;
Transport speed, km/h, not more than: 20;
Weight of the product, kg: 820;
Length, mm: 2300;
Width, mm: 2800;(//tractor-service.com)
Height, mm: 1300;
Ground clearance, mm: 300;
Tractor, compatible with: MTZ-80/82/100/102;
Technical characteristics;
Type: trailed;
The width of the grip is constructive, m: 2.4;
Fuel consumption, l/ha: 7.2 - 8.5;
Productivity during the main time, ha/h: 1.8 - 2.2;
Depth of soil cultivation, cm: 8 - 18; 170
Рабочая скорость движения, км/ч: 8,0 -12,0;
Transport speed, km/h, not more than: 20;
Weight of the product, kg: 1050;
Length, mm: 4800;
Width, mm: 2800;
Height, mm: 1000;
Ground clearance, mm: 300;
Maintenance staff, people (tractor operator):1;
