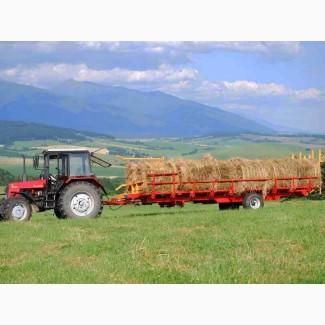

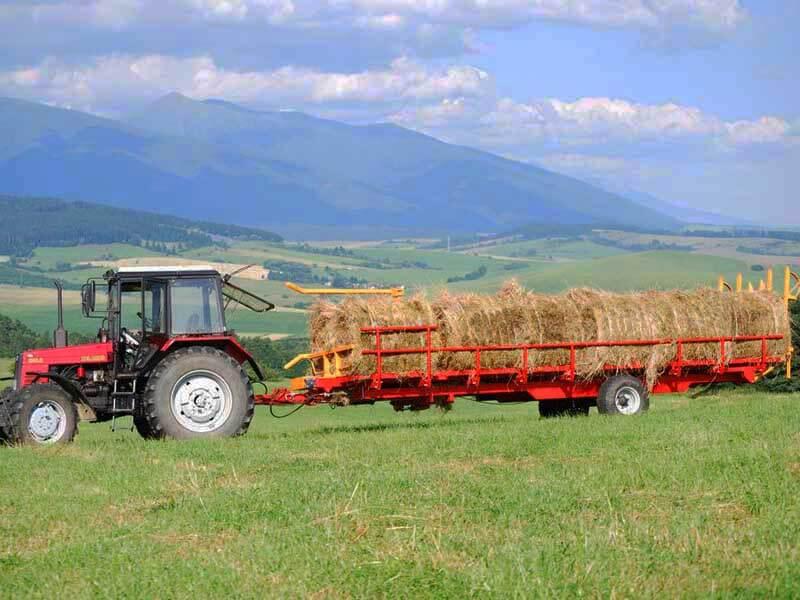

Self-loading PT-12 bale semi-trailer, Kharkiv region.

Principle of operation:

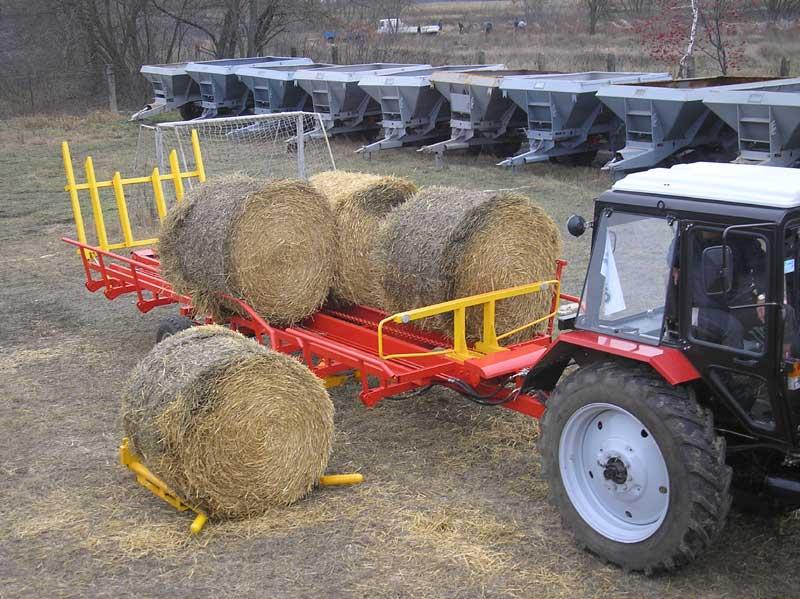

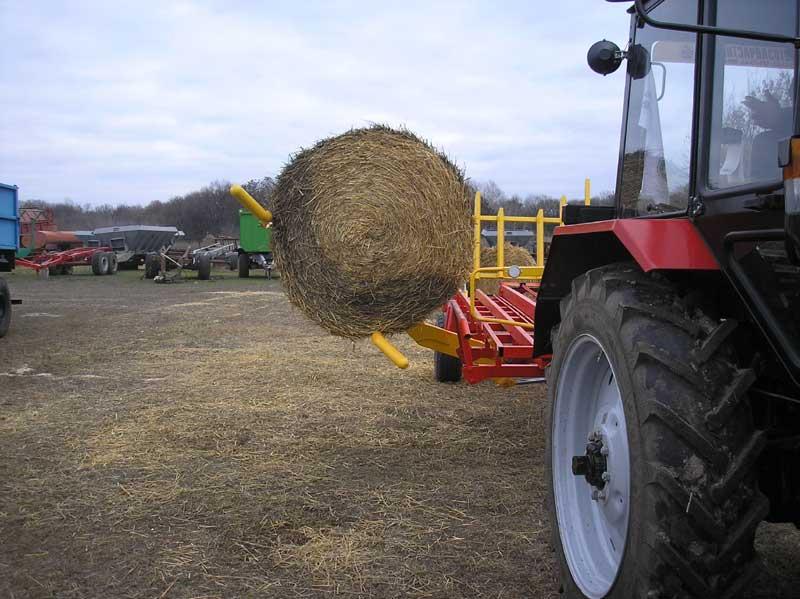

picking up and loading is carried out by a fork lifter, which, with the help of a hydraulic cylinder, lifts the bale onto the platform. The front wall moves the bale backwards. When transporting to the skirty, unloading is carried out by shifting the bales along the front wall, through the rear hydraulically opening board. The bales slide easily along the guides, keeping their shape and integrity.

The chain conveyor is located in a closed niche, which completely excludes contact of the chain with the bales and damage to the threads.

Aggregated with tractors: MTZ, YuMZ.

The semi-trailer bale loader is used for picking up, transporting and unloading bales.
Self-loading bale semi-trailer PT-12
Technical characteristics of the semi-trailer for transporting rolls(//tractor-service.com)
Uniaxial unit, without springs. It is characterized by high maneuverability, ease of movement and low landing of the semi-trailer;
Tyres size 400/60-15.5 (load 2900 kg, at a speed of 40 km/h);
Scharmuller towing loop (Austria);
Fork grab for bales, 1.2-1.5 m in diameter;
The movable front wall for unloading and loading is driven by a WR-375 hydraulic motor (Italy);
Mechanical drawbar support;
Rear hydraulic opening board;
Electrical system 12V;
The side panels are adjustable in width;
Pneumatic braking system;
