Piping machine for cherries Type "UniMasz", Kyiv

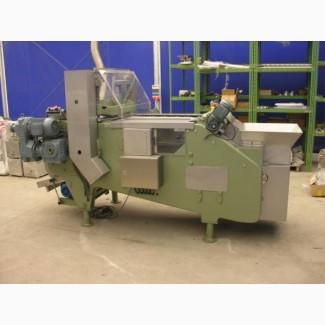

Piping machine for cherries Type "UniMasz"
New!!! Not used!!!
The machine is available in Ukraine!!!
• The equipment is designed to separate pits from cherries using needles.
• The maximum productivity of the net machine ................ 800÷1200 kg/h - depending on the type of product, the size of the caliber and also
degrees of filling holes in the plates
• The efficiency of the equipment is standard .............1 stone per 3 kg of pitted cherries
• The efficiency of the equipment is maximum ..........1 stone per 10 kg of pitted cherries - subject to proper operation
and due supervision of the operation of the equipment.
• Overall dimensions: height 1690 mm, length 2780 mm, width 1272 mm
• Net weight 1600 kg(//tractor-service.com)
• Max. Productivity 1500 kg/h
• Main gear motor 2.2 KW
• Brush motor-reducer 0.37 KW
• Shaker motor-reducer 0.75 KW
• Replaceable plates for stone removal with holes strictly dependent on the size of the cherry from which the stone is removed.
• In the standard package, a set of equipment for removing pits from cherries with a diameter of Ø 20÷23.5 mm:
• The diameter of the holes in the plate is Ø 24/14 mm, the number of holes in the plate is 108; Number of plates .....................40 pcs. • Ejecting needles with a diameter of Ø 7 mm; Number of needles................108 pcs.
• Strip brushes for cleaning needles together with a base for fastening; Number of brushes ...............108 pcs.
• Ejector plate Ø 7 mm
• Tightening plate Ø 9 mm
• Cutting plate
