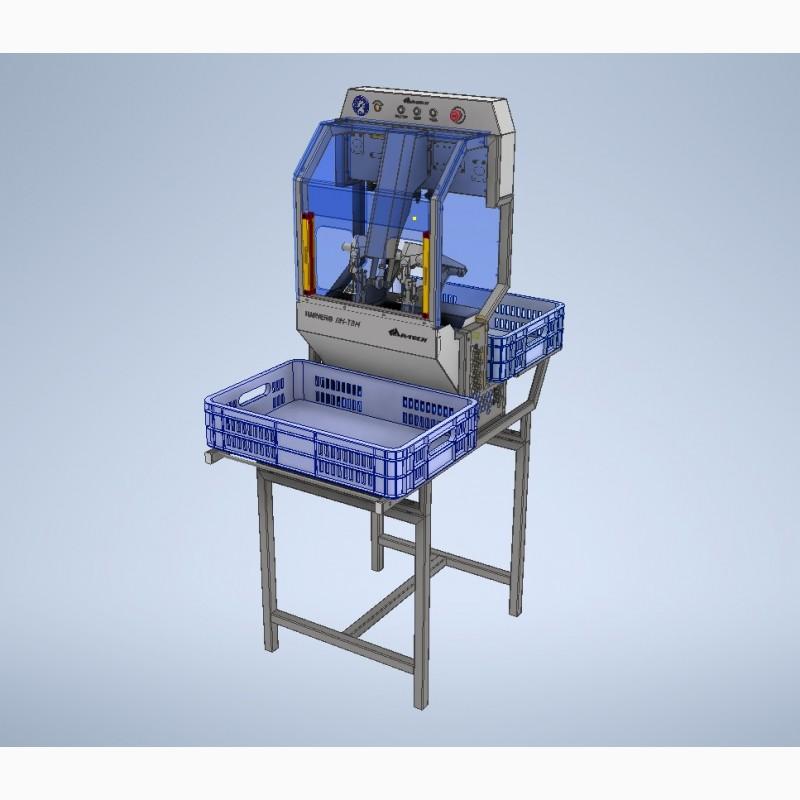

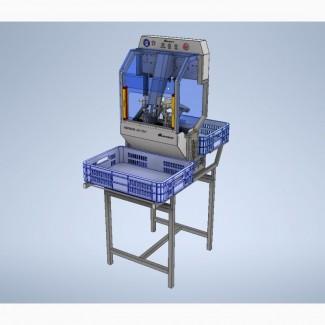

Apparatus for removing pits from plum, apricot DM-Tandem, Transcarpathian region.

The device is a lever mechanism with a pneumatic drive, intended for removing pits from pitted fruits of round or elliptical shape with manual placement of raw materials in cells (2 pieces each).
The start of the lever pneumatic drive occurs automatically thanks to photoelectric sensors. Knife plungers on the lever, cutting into the fruit, remove the stone. Stones and pitted fruits are stored in appropriate plastic boxes. Recommended plastic boxes with a size of 600x400x120 mm.
An air compressor is required for the operation of the machine for removing bones.
Important: the bones should be easily separated from the pulp of the fruit. Fruits are installed vertically in cells.
Features: The pitting machine divides the fruit into halves or opens the fruit, depending on the installed knife.

Technical characteristics:
Maximum productivity (estimated): up to 2500 fruits/hour
Installed power: 20 W
Network parameters: 220V/50Hz(//tractor-service.com)
Power of electric power supply. circuits: 24 V
Working pressure of compressed air: 0.6 MPa
Cell size: 33 mm
Number of cells: 2 pcs.
Dimensions (L x W x H): 760 x 610 x 790 mm
Weight approx.: 25.00 kg
