Vibrating press for the production of pavement tiles SUMAB R-500 Start (800-1000 m2/shift) Sweden, Kyiv

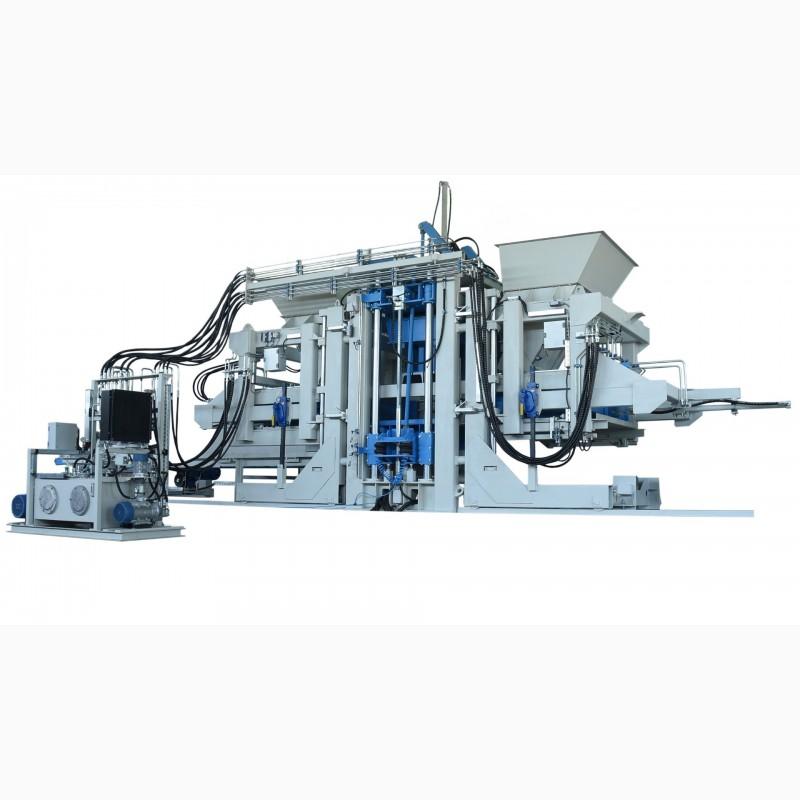

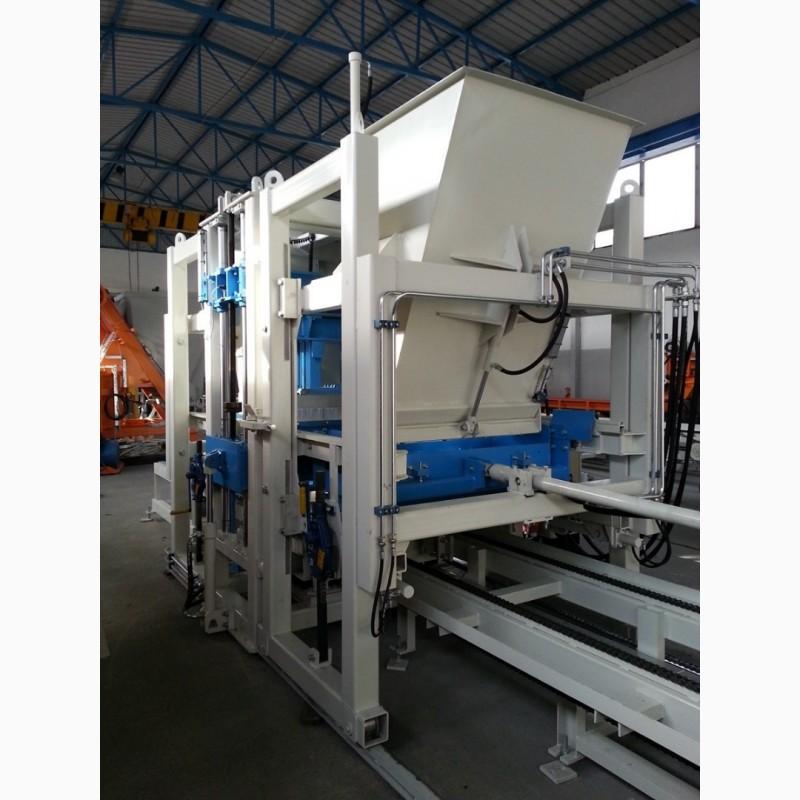

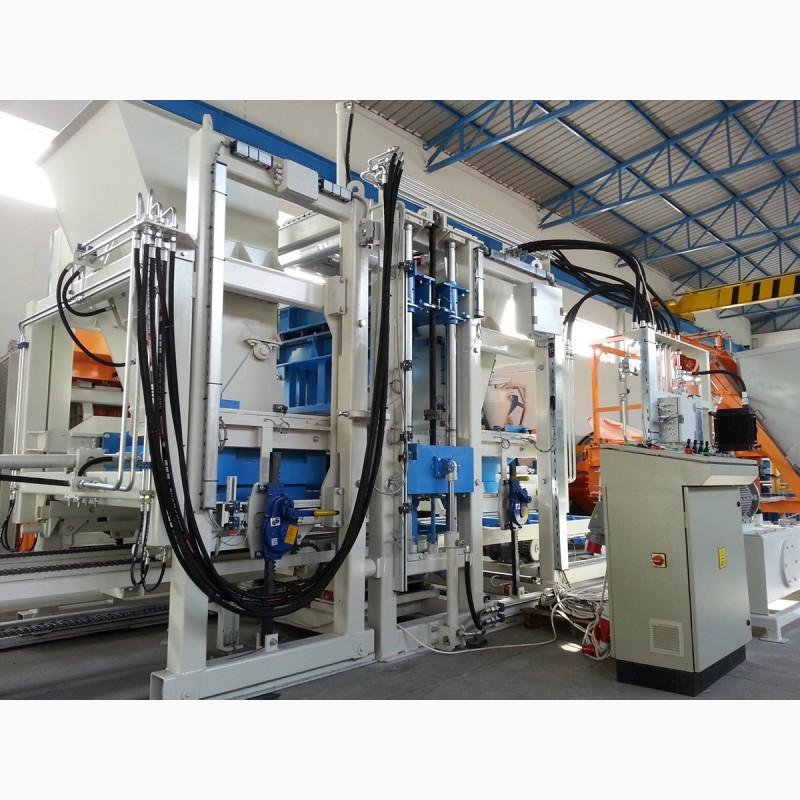

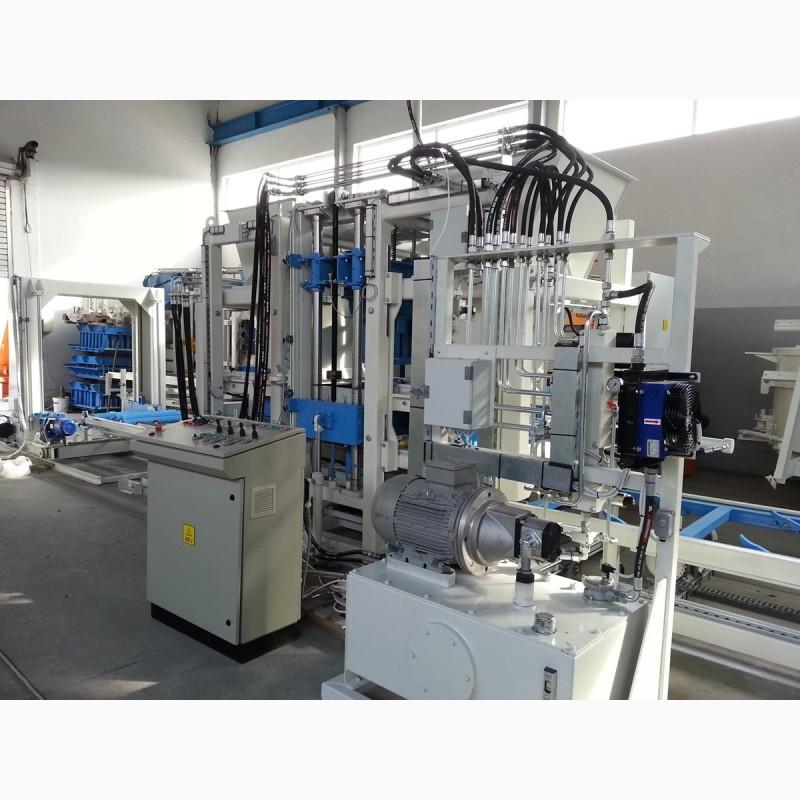

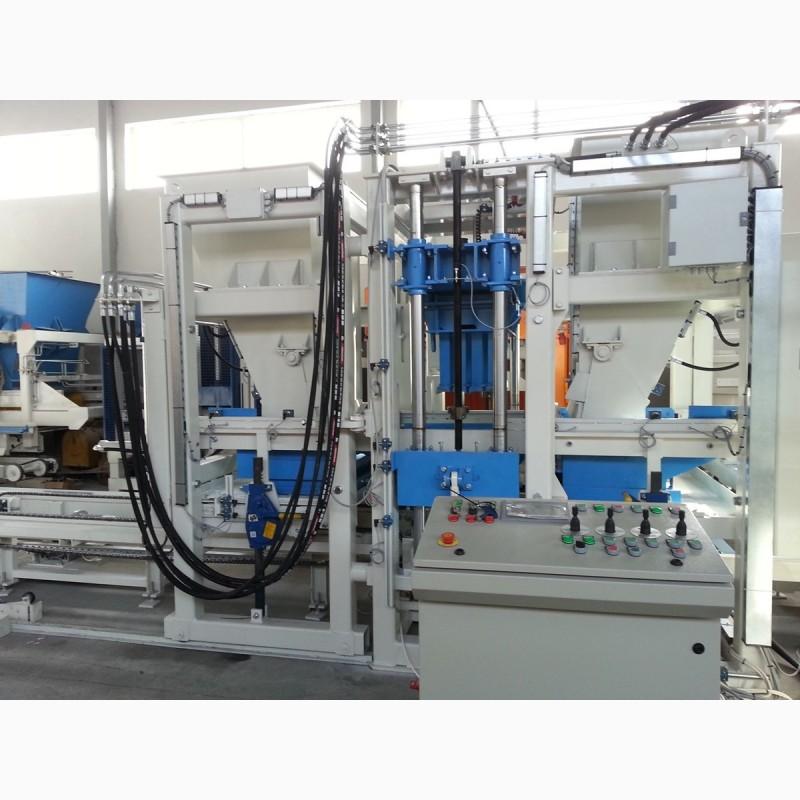

Stationary block-vibropress machine for the production of pavement tiles
and other products Sumab R-500 (Start option). Sweden

Vibration system with frequency regulation Knauer, Germany.

Pallet dimensions: 1400x600 mm.
Usable area (working area of the press) max.: 1250x620 mm.

Productivity per shift (8 h):

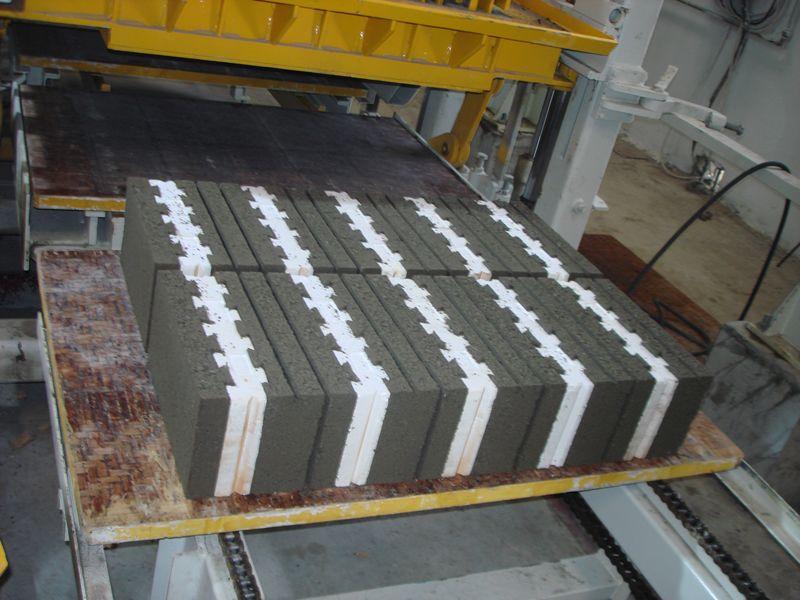

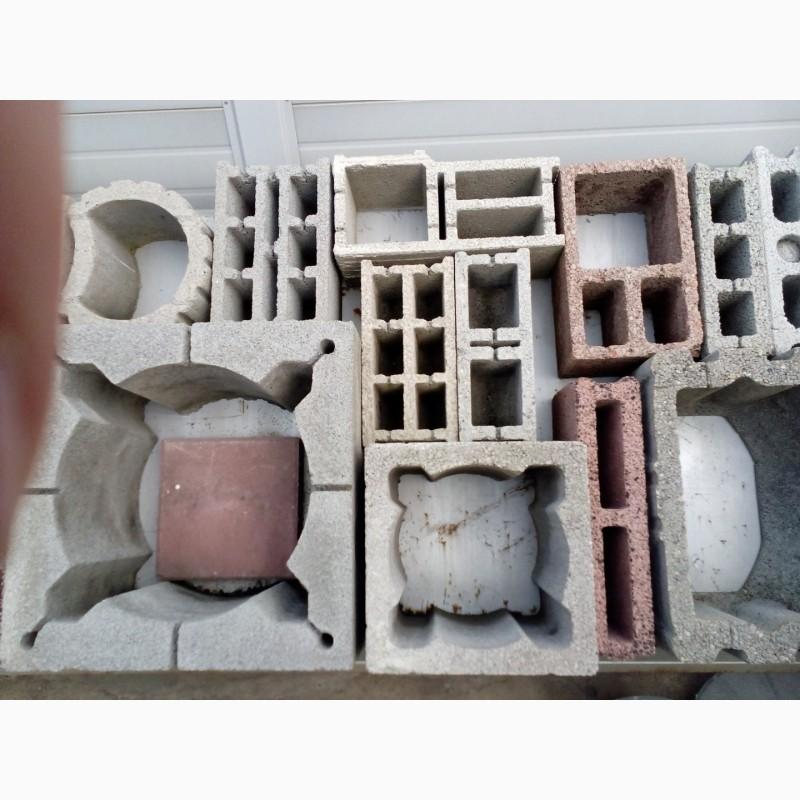

12,960 pcs. hollow blocks (20x20x40 cm)

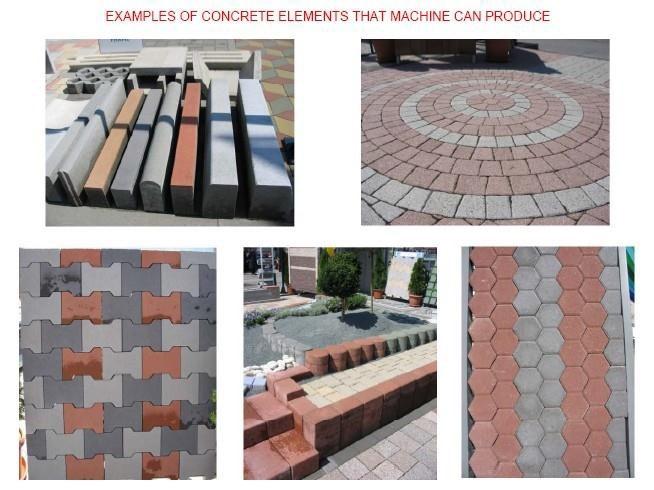

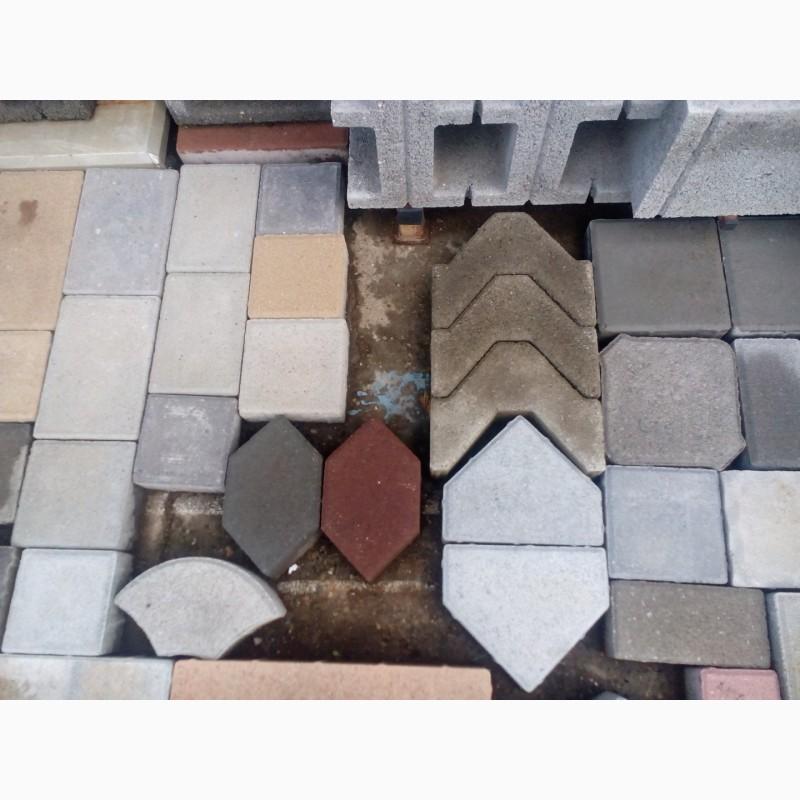

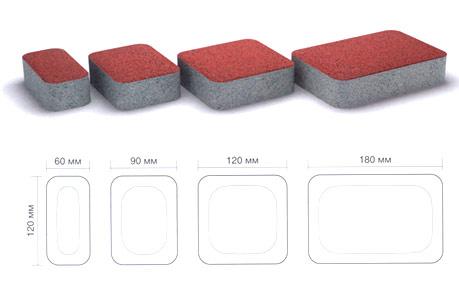

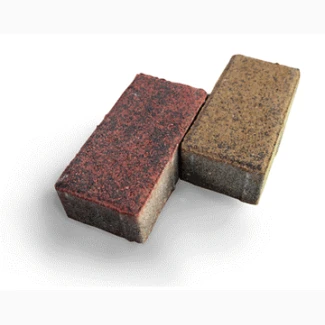

864-1016 m2 of paving stones (10x20x6 cm) color/without color.

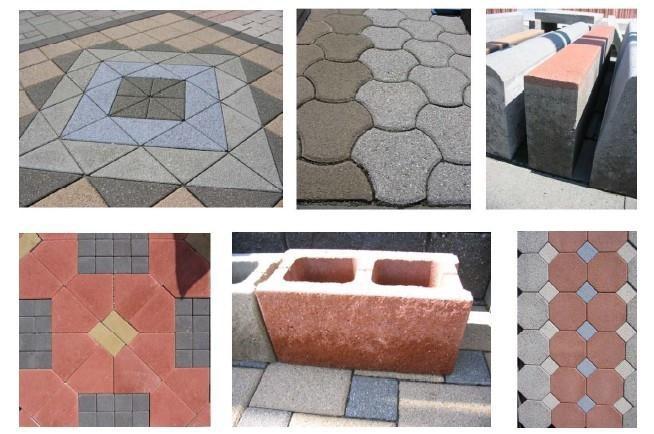

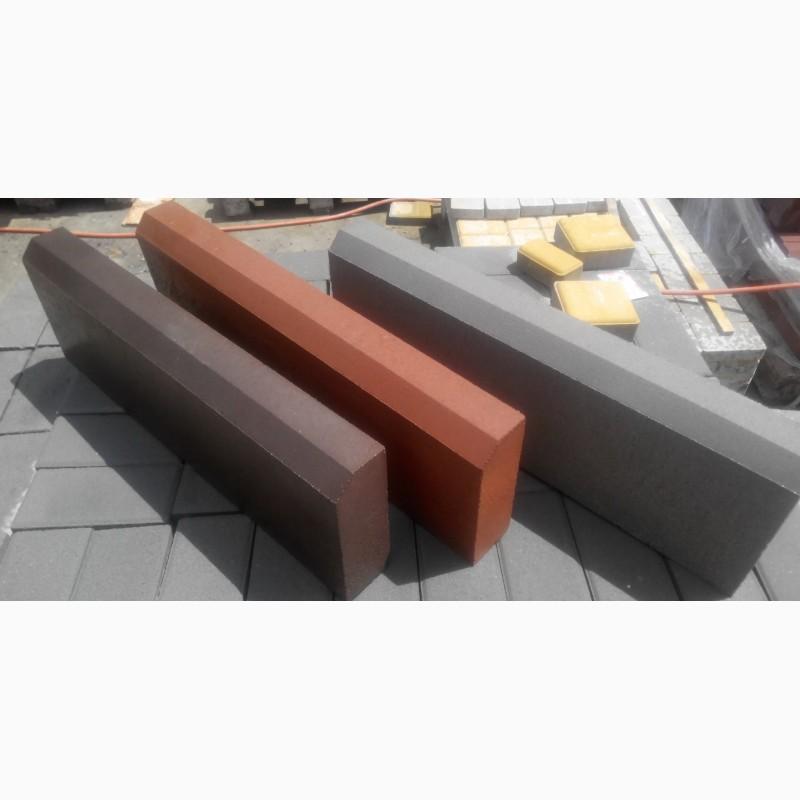

2000-2500 pcs. of curbs depending on the size of the curbs, the presence of an additional front layer.

Technical data of the Sumab R-500 machine
The maximum height of the product: 330 mm
Minimum product height: 25 mm.

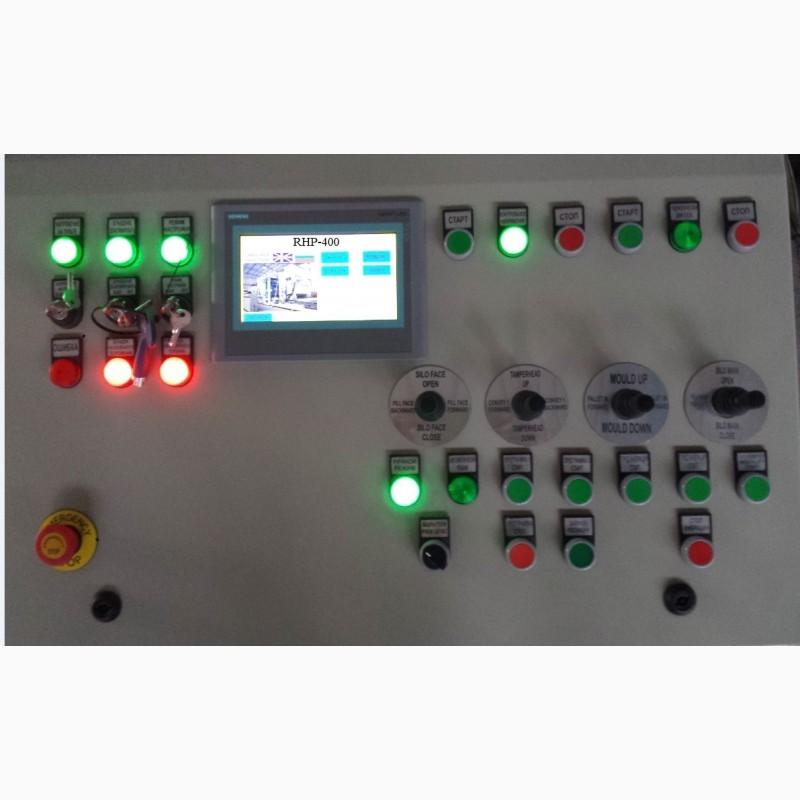

Stationary block machine SUMAB R-500 with automatic control (equipment for automatic operation is included in the package, including PLC, sensors, hydraulic valves for switching from manual to electric drive).

Vibration system with frequency regulation Knauer, Germany.

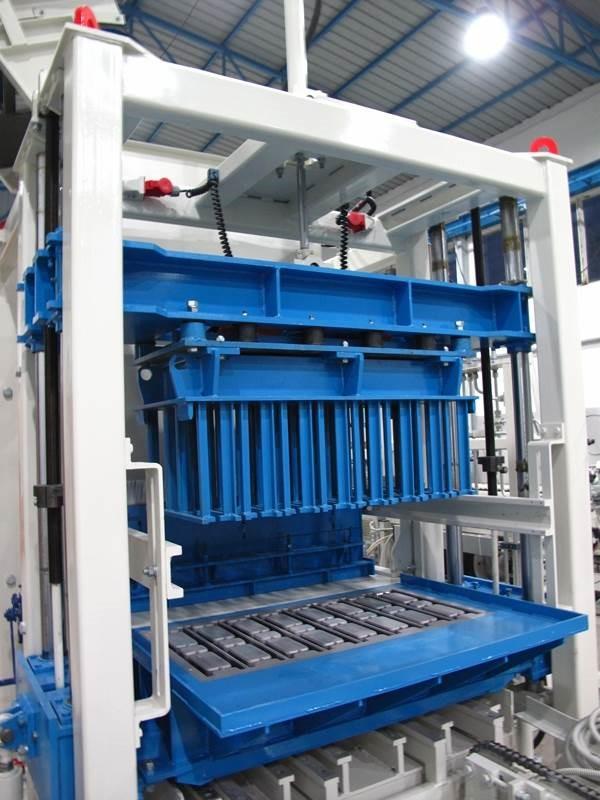

Press form for vibration pressing.

A separate mold is required for each type of production.

Equipment for the face layer (color and solid surface) of concrete products (hopper for face mix, frame and filler hopper).(//tractor-service.com)

Conveyor belt for moving fresh ready-made concrete products from block machines with smooth start/stop and speed control, length 7 m.

Pallet insertion device with pallet storage for Sumab R-500 with smooth start/stop and speed adjustment.

Pneumatic clamp of molds for Sumab R-500.

Safety equipment for the Sumab R-500 machine - fences and switching equipment.

Additional vibration in the main part of the punch.

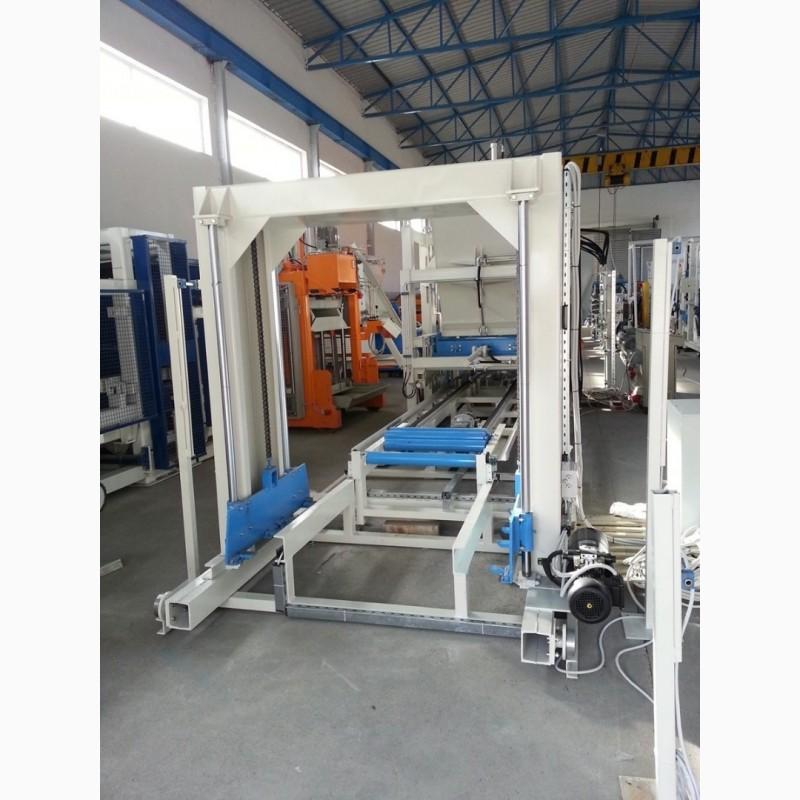

Device for receiving and lifting pallets with fresh products, with 2x6 pallets for paving stones - Stracer robot (robot stacker/stacker) (2x6 pallets = 12 pallets in total),
(1200-1400) x550 mm pallet size, 1200 mm max. stacking height.

Warranty: 24 months for the supplied equipment.

Thanks to the use of European technologies, the equipment has a high durability and reliability indicator.
Delivery of the equipment is carried out exactly on time.
More than 25 years of reliable partnership.

The equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.
Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with different capacities and equipment were delivered.

To receive a commercial offer, please send an application to our email address.

The company provides a full range of services - delivery, start-up and adjustment works, service maintenance.
