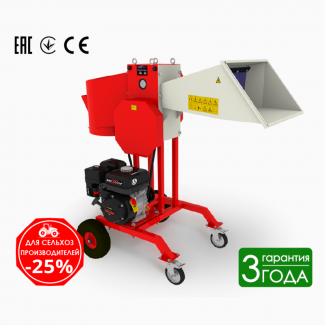

Arpal AM-80BD branch chopper, crusher, branch shredder, Vinnytsia region.

The AM-80BD branch shredder is intended for processing and utilization by cutting branches, rails, boards, slats and other wood waste. The branch shredder turns the raw material into pieces 6...12 cm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-80BD branch chopper is capable of cutting branches with a diameter of up to 8 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The productivity of the AM-80BD branch shredder is a maximum of 4 cubic meters of finished product during operation. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The AM-80BD branch chopper is equipped with a WEIMA gasoline engine with a capacity of 7 hp. the fuel consumption of which is only 400 g/hour. This engine is one of the highest quality on the territory of Ukraine, service centers are located in each region. The engine is protected from overloads by a special friction clutch developed by us. The engine has a separate warranty from the manufacturer for 12 months.

Knives are the working element of the branch chopper. There are 6 knives installed on the AM-80BD branch chopper, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the branch chopper are inserted into the milled groove of the working shaft, this technology allows you to significantly reduce the load on the fastening bolts of the knives.

The AM-80BD branch chopper is mounted on a rigid frame made of a profile pipe, which is equipped withwith wheels for the convenience of moving the branch chopper around the territory. Two pneumaticwheels and two swivel wheels with brakes are installed on the frame for the convenience of maneuvering and fixing the shredder in place.(//tractor-service.com)

The AM-80BD branch chopper is equipped with an unloading hopper capable of packing ready-made products into nets. The unloading hopper has one mesh attachment. Standard grids with a size of 50x80 cm are suitable for the AM-80BD branch chopper.

The entrance hopper of the wood chipper is equipped with a transparent PVC curtain to protect the operator from chips during work.

The branch shredder AM-80BD is completely produced at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The grinder is covered with powder paint, which significantly extends the service life of the structures.

We are confident in our products, so we provide a 36-month warranty for the AM-80BD branch chopper. In addition, we, as a manufacturer, provide both warranty and post-warranty maintenance of the AM-80BD branch shredder.

Private shredder branches from us you get a reliable assistant on the way to your energy independence!
