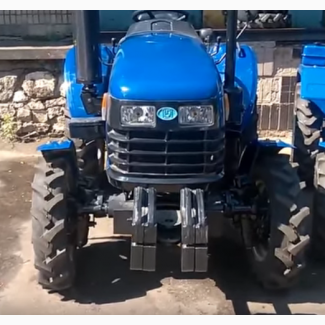

DTZ 244.5 wheeled all-wheel drive mini tractor is designed to perform any agricultural, communal, construction work, depending on the additional equipment used with it. DTZ tractors are specially designed for work in the geographical and climatic conditions of Ukraine.
Engine power, hp (kW) 24 (17.65)
Wheel formula 4x4
Engine type Vertical, 3-cylinder 4-stroke diesel with forced water cooling and direct injection.
Engine start electric starter with safe start
Engine volume, 1908 cm3
Cylinder diameter / piston stroke 90x100
Nominal engine fuel consumption, 250 g / kW * h
Type
fuel pump plunger, row
Nominal engine crankshaft speed, 2350 rpm
Nominal traction force, 6.5 kN
The type of engine oil is mineral or semi-synthetic for diesel engines.
Nominal oil consumption in the engine, 2.04 g / kW * h
Gearbox (gearbox) (3 + 1) x3
The type of oil in the gearbox, the rear axle is transmission.
The type of oil in the front axle is transmission.
Rear differential lock +
Dry, single-disc clutch
Power steering +
Fan drive of the V-belt transmission cooling system
Drum-type brake mechanism
(//tractor-service.com)
Power take-off shaft revolutions, 540 (GDP)
Type
hydraulic pump gear system
pump
The maximum load capacity of the hinged mechanism, 520 kg
Minimum clearance, 400 mm
Wheel base, 1670 mm
Ground clearance, 1150-1350 m rear.
Front 1170 m
Rear size 9.5-24
Front 6.00-16
Minimum turning radius, m with one-way brake 2.6
without brakes 2.8
Theoretical speed of movement, km / h forward 2.63-27.78
back 2.63-10.92
The volume of the fuel tank, 25 l
Engine crankcase volume, 5.5 l
The volume of the gearbox and rear axle crankcase is 18 l.
The volume of the crankcase of the front axle, 4.5 l
Volume of the engine cooling system, 7 l
Hoist body volume, 9 l
Overall dimensions (LxWxH), 3300x1600x2030 m
Design mass, 1260 kg
