The simple design and economical engine ensure reliability in operation, the tractor is easy to operate. The belt drive, made of 4 V-belts, protects the transmission from breakdowns and extends its service life in the event of overloads.

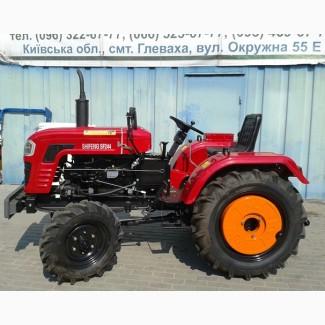

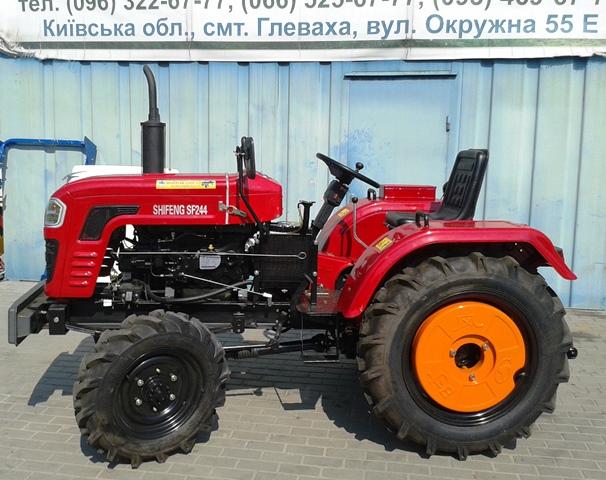

Shifeng - All-wheel drive mini tractor (the front drive is connected mechanically) with a horizontally arranged single-cylinder water-cooled diesel engine, a working volume of 1344 cm3, a semi-frame construction and front springs.
Front
wheels 6-16, rear 9.5-24. Front cargo 25 kg, rear cargo 30 kg.

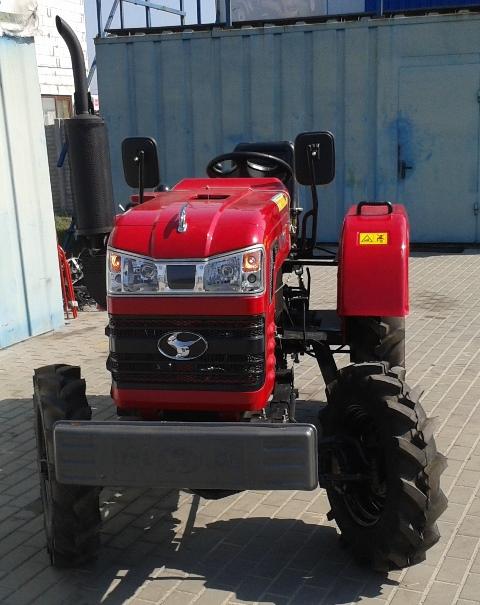

The hood opens forward. Battery with a capacity of 100 A/hour. The air filter is placed under the hood. There is a knob for turning off the mass.
The radiator is protected by a metal mesh and cooled by an impeller mounted on the generator shaft.
The flat floor of the working area, a wide passage and handrails allow you to easily and quickly enter the workplace and leave the tractor. A seat on springs, adjustable according to the height of the operator, ensures the comfort of the driver during work. Water temperature, oil pressure and ammeter indicators are installed on the instrument panel. Convenient steering wheel turn and light switch. Two spherical rear-view mirrors ensure safety at work.
A handle for rotation is installed on the steering wheel. Control of the "gas" is possible both with a manual lever and with the help of a pedal.
The gear shift lever is on the side. The gearbox has 8 forward and 2 reverse gears. Speed range from 3 to 31 km/h. Brake with parking function.
Tool box. Additional lighting is provided by the rear working light.
Rear PTO. Powerful hitch with a load capacity of 280 kg. To work with a trailer, a towing device is installed.
The rear lights are equipped with LED lamps.
There is a socket for a trailer.
Advantages of belt tractors Shifeng:
low cost, this tractor has one hp. costs $150, and in a 3-cylinder tractor with a gear transmission $250;
they work very well, assembled qualitatively and thoughtfully, in full compliance with strict standards;
low fuel consumption, respectively, and fuel consumption is minimal;
unpretentiousness, such a simple and practical technique does not require special care and frequent preventive maintenance;
multifunctionality. The mini-tractor can perform a number of functions, from traditional field work to firewood harvesting and snow removal in the cold season. A large set of additional attachments turns it into a universal household machine.
Power, hp, (kW) 24 (17.6)
Wheel formula 4x4, plug-in front axle
Diesel engine, SF138-2
Number of cylinders 1
Working volume, l 1.344
Specific fuel consumption, g/kW*h 252
(//tractor-service.com)
Liquid cooling
There is no heating of the power supply system.
Gearbox (4+1)x2, mechanical
Belt transmission (4 belts)
Mechanical steering control
One-disc clutch
The rear differential is non-locking.
Rear drum brakes
There is a parking brake
Dimensions L/W/H, mm 2990/1435/1400
Wheelbase, mm 1585
Front/rear axle width, mm 1160, 1220/1170, 1230
Ground clearance, mm 230
Weight, kg 1120
Speed, km/h 3.0-31.2
Tire size 6.00-16.00/9.5-24
Tank volume, l 17
Power take-off shaft, rpm. rear, 540
Traction force on the hook, kN 7.4
Lifting capacity, kg 280
There is a hydraulic outlet.
Loads, kg front - 25; rear - 60
There is no cabin.
Additional equipment rear light, front springs
