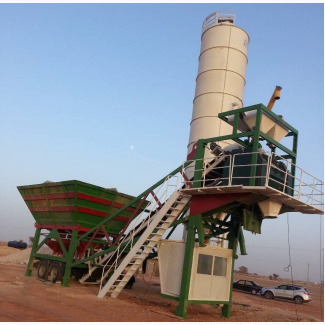

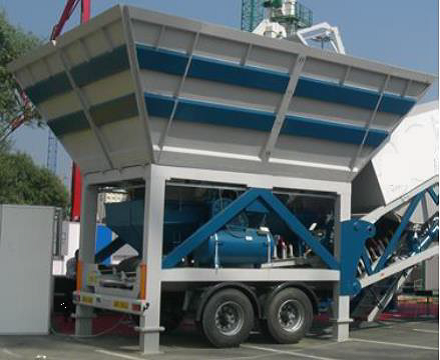

Mobile concrete plant Polygonmach Mobile 30 (20-30 m3/hour), Kyiv

Mobile concrete plant Polygonmach Mobile 30 (20-30 m3/hour) Turkey.

1. Bunkers of inert materials - 4 x 10 m3

2. Weighing hopper – 0.5 m3

3. Material supply conveyor – 600 x 12,000 mm

4. Single-shaft mixer with lubrication system - 0.5 m3

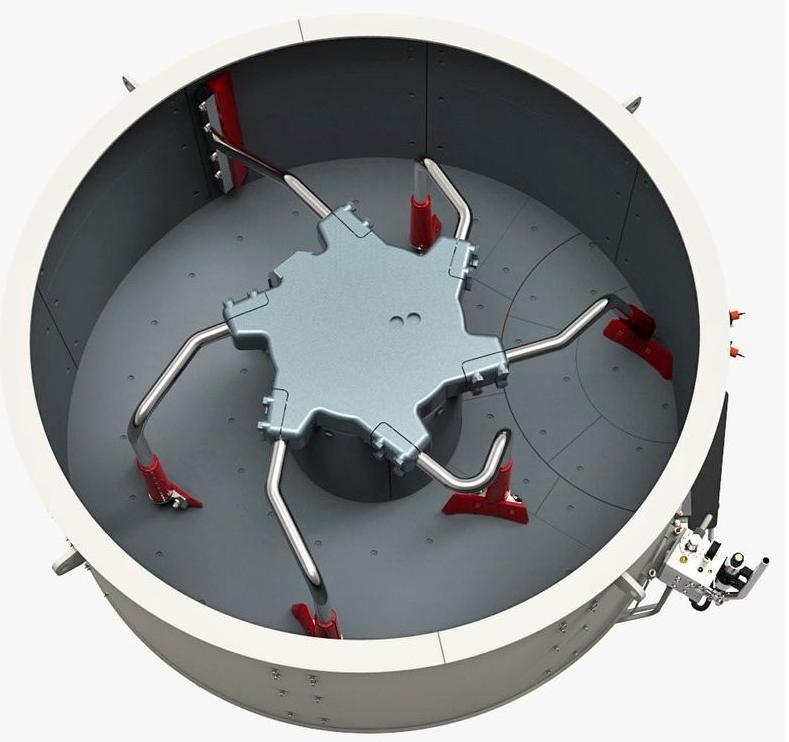

OPTION: 2-shaft mixer or Planetary mixer

5. Hopper for weighing cement - 300 kg

6. Water supply system - 200 l.

7. Chemical supply system.additives - 15 l.

8. Pneumatic system.

9. Control room, air conditioner.

10. Industrial computer, printer

11. Mobile chassis, platform.

12.Cement silo

13. Cement auger

14. Silo filter - 24.5 m2 filtration area and accessories

15. Sensors, level control, other systems.

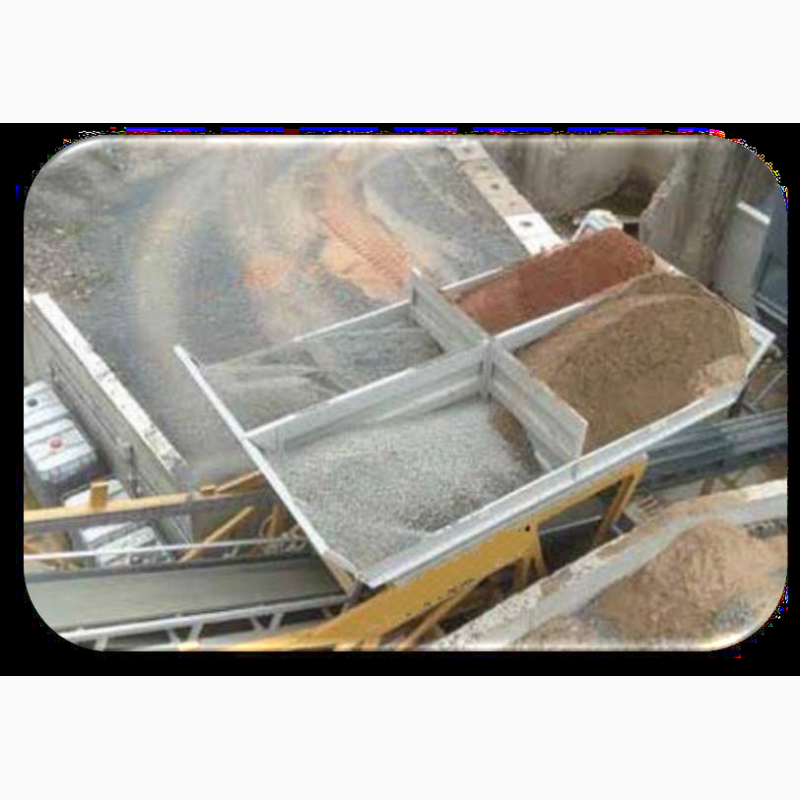

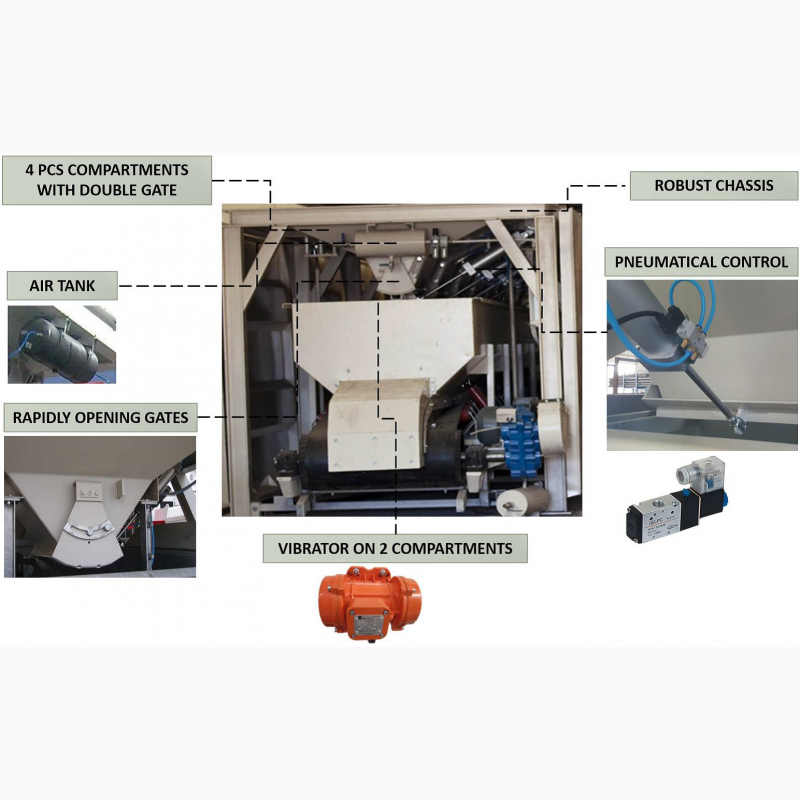

1 – Bunkers of inert materials :

Total volume: 40 m3

Quantity: 4 x 10 m3

Selector: 2 pcs., 0.37 kW

Selector Brand: Oli (Italy)

3 – Conveyor for supplying material :

Size: 600 x 12,000 mm

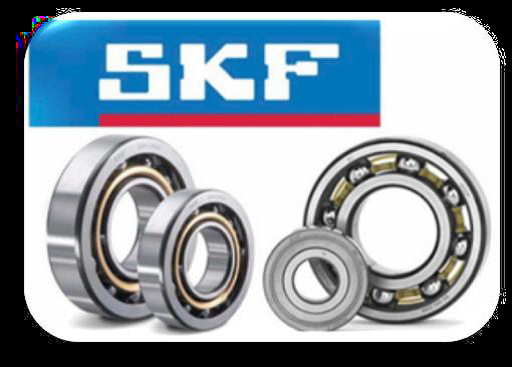

Bearings: FAG or SKF Brand

Reinforced housing for heavy-duty conditions.

Tape: Sloev: 4,

Thickness: 10 mm

Manufacturer: Derby

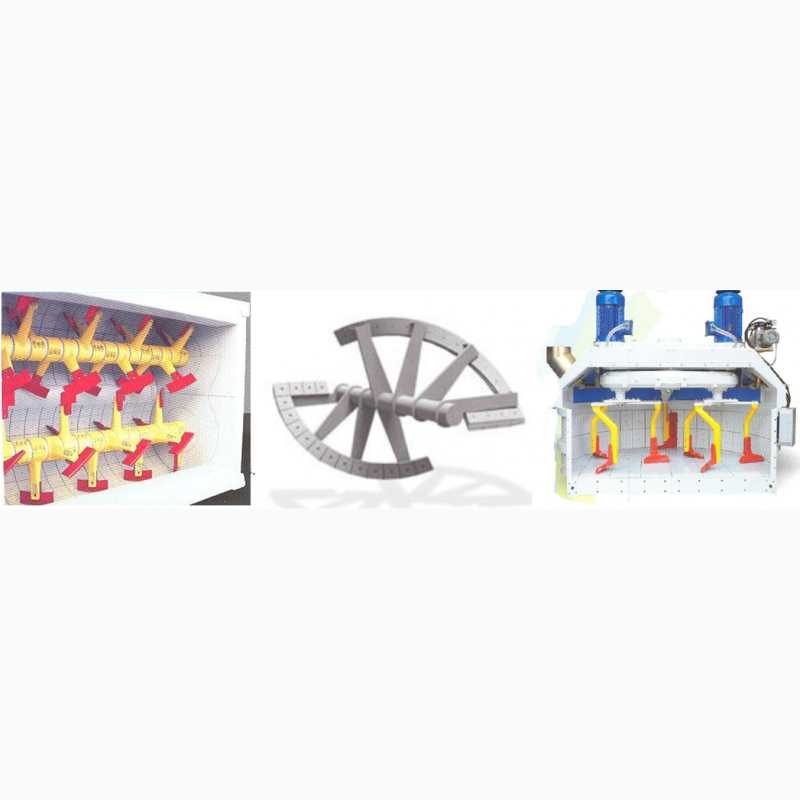

4. Mixer: Single-roll type (OPTION: 2-roll mixer or Planetary)

Loading volume: 0.750 m3

Unloading volume: 0.500 m3

Engine: 22 kW, 1450 rpm

Gearbox: Reinforced type,

The plate of the bottom and side walls - anti-slip coating Hardox 450 sheet (SSAB – Sweden), thickness 12 mm, strength more than 450 HBW;

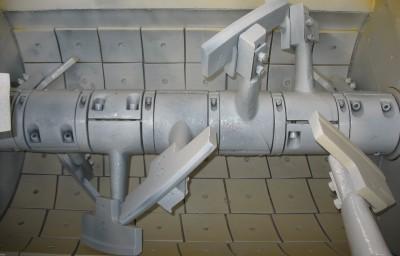

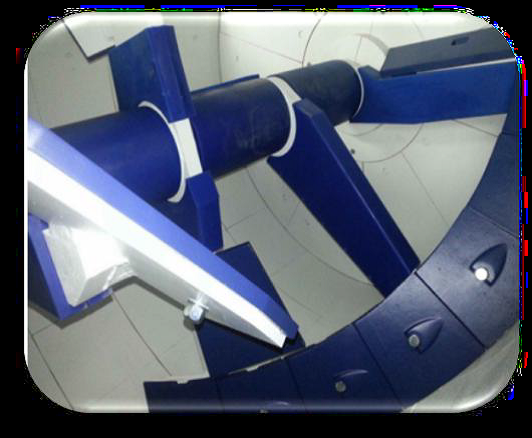

Spiral (screw) type mixing blades, wear-resistant metal

Mixing and scraping blades Ni-Hard Cast Iron, hardness: 700 HBW

Hydraulic block with hand pump for emergency opening of unloading door;

All moving parts of gearboxes and bearings are constantly lubricated with an oil bath;

Bearings: FAG or SKF Brand - Germany

The inner surface of the unloading bucket is covered with wear-resistant sheet metal Hardox 450 - 12 mm.

5 – Cement tankемкость – Rock.

Volume: 300 kg(//tractor-service.com)

with strain gauges, 3 pcs., (Pulse)

Selector: 1 pc., 0.18 kW, (OLI - Italy)

6 - Water supply system.

Capacity: 200 l.

Strain gauges, 3 pcs., 1000 kg/each. (Pulse)

7 - Chemical capacity. supplements

Volume: 15 l.

Steel: 4 mm

Strain gauge, 1 pc., 100 kg. (Pulse)

8 – Pneumatic system:

Compressed air cylinder: 300 l.

Brand: Mark (Atlas – Copco) USA

Type: Piston compressor with belt drive

Power: 5.5 kW

Pressure: 10 Bar

9- Control room:

The walls are made of sandwich panels with a thickness of 40 mm. 9000 BTU.

Air conditioner.

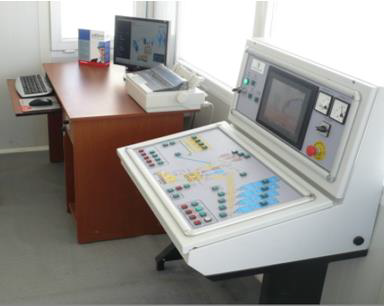

10- Computer control:

The automation system includes:

* Power panel and switches

* Dosing control terminals

*Automatic control unit

* Software

* Control panel

* Computer, screen and plotter (HP brand)

* PLC panel (Siemens brand)

Electronic components are Siemens.

- The factory is fully automated and the system is controlled on a PC.
- The system is equipped with electrical installation devices and Siemens sensors.

11 – Mobile chassis and construction frame:

Working height: 4.2 m

Observation platform, railing.

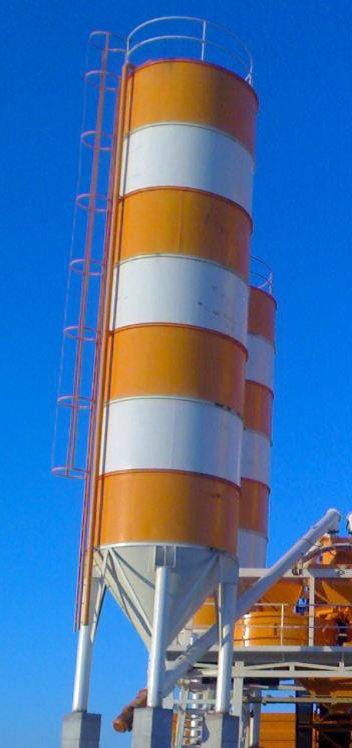

12 - Cement silo (Option 1)

Type External and vertical, bolted or welded at the request of the client

Capacity: 50 tons (other options)

13- Auger (Option)

Size: Ø 193 x 8,000 mm

Motor: 9 kW

WAM Italy

14- Aggregate feeding conveyor (Option)

Our mobile aggregate feed conveyors can only be moved with the help of a vehicle, like our mobile concrete plants.

Warranty 24 months.
