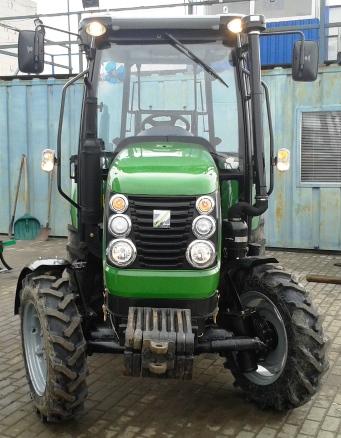

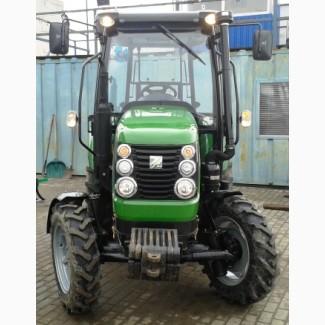

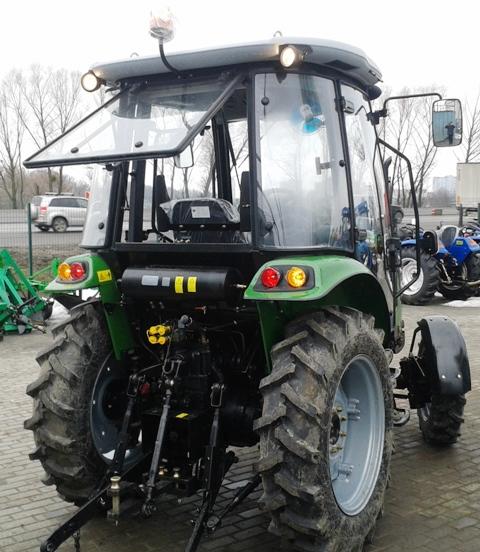

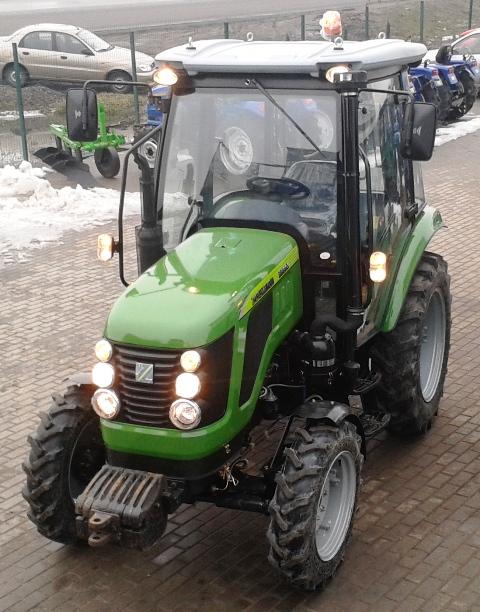

Modern design. Stylish rear lights. Front and rear working lights. Rear reflectors. The front axle is swinging portal type, fenders on the front
wheels. Front loads. Front hitch. 4x4 drive, connected front axle, power steering with independent hydraulic circuit, pump and tank.

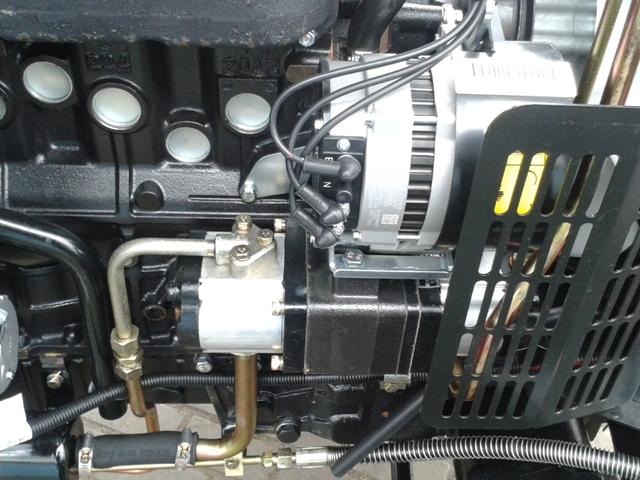

Four-cylinder engine - 50 hp, antifreeze is poured into the cooling system, glow plugs in each cylinder. Compressor, pneumatic brake booster, receiver with pressure up to 8 atm, pneumatic outlet. Two hydraulic pumps. Air cleaner of the inertia-oil type. Battery 100 A/h. Metal mesh in front of the radiator. 1000 W generator. Muffler with protective mesh. Two-disc clutch.
Reversible gearbox (4 forward + 4 reverse)x3. Rear axle differential lock. Disc brakes in an oil bath. 2 fuel tanks located below.

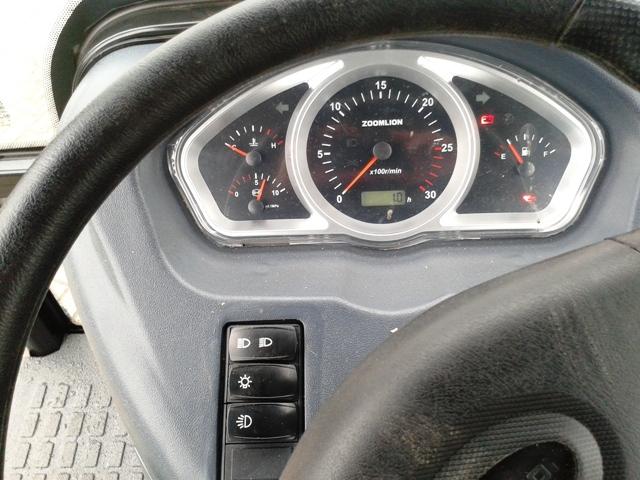

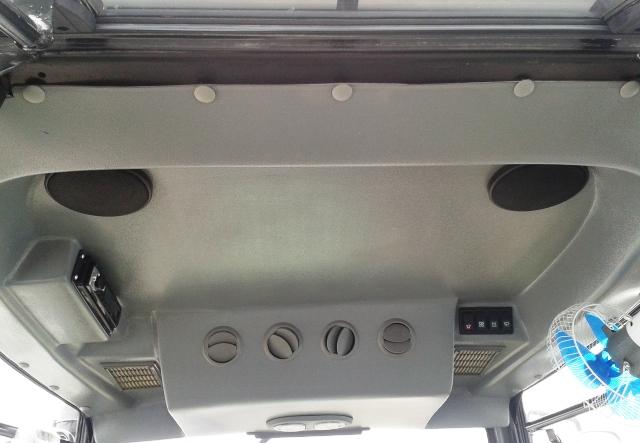

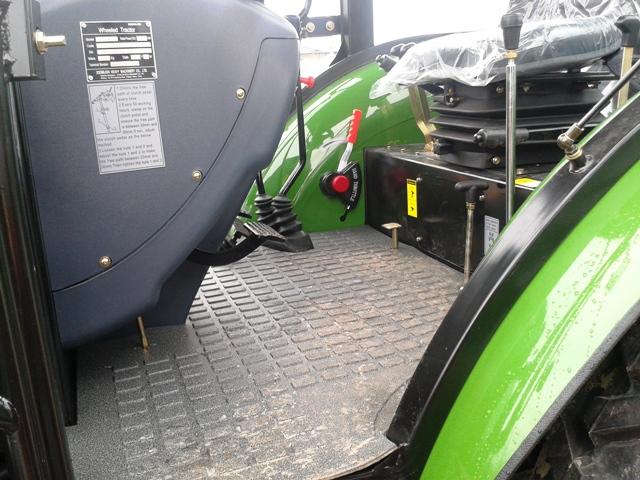

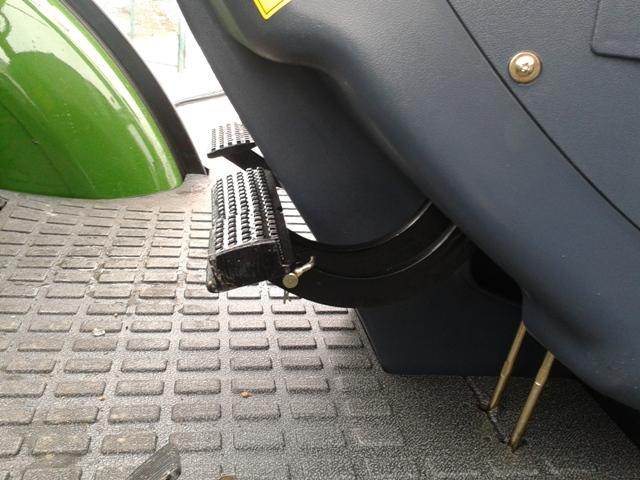

6-support, non-removable, spacious, sound- and heat-insulated, hermetic cabin on shock absorbers with rollover safety frame (ROPS). Rear view mirrors. Front stack wiper. Rear-view mirrors, running boards, handrails on the cabin pillars, fenders and doors, a flat floor of the working area with a rubber mat. Suspension pedals reduce pressure and improve operator comfort. Brake and clutch pedals have stops. Heating and ventilation system with cabin filter. 2 salon lamps. Radio receiver with USB port and speakers. Combined electronic instrument panel, emergency alarm, sound signal. Manual gas. Separate brake pedals. Convenient location of control bodies. Suspended seat with a safety belt, with the possibility of individual adjustment of the operator's weight and height.
Wheels: front 8.3–20, rear 12.4-28, collapsible discs of front and rear wheels.
Separate oil baths of transmissions and hydraulic systems. Power take-off shaft independent two-speed 540/1000 rpm. Electrical outlet for a trailer.

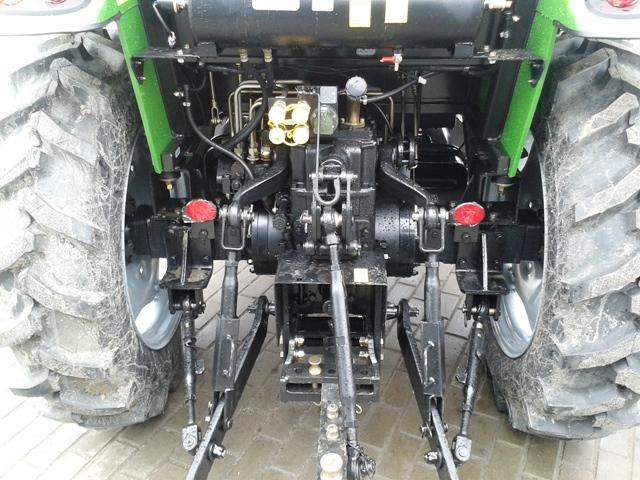

Two hydrocouples with quick-release couplings. Pendulum-type rear trailer hitch with length and height adjustment. Central screw with hook. Mechanical rear wheel loader with three fastening positions and a spring shock absorber, with the help of which the copying of the local terrain by the working bodies of agricultural equipment is significantly improved and shock loads are reduced. Tool box. A flashing yellow beacon warns other drivers about the movement of the tractor.
Power, hp, (kW) 50 (36.8)
Wheel formula 4x4, plug-in front axle

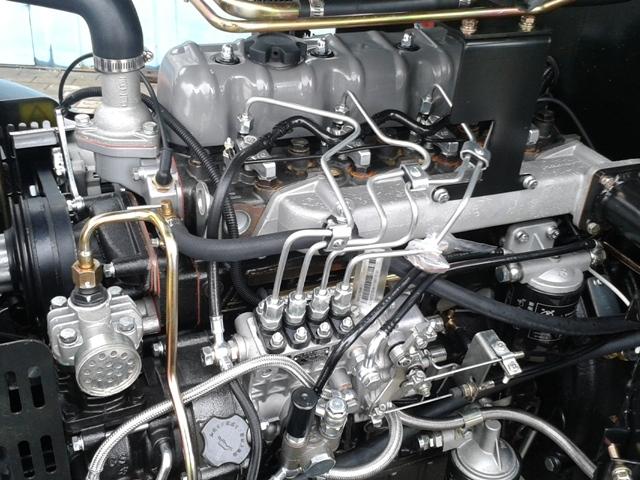

Diesel engine, A498BT
Number of cylinders 4
Working volume, l 3,168
Specific fuel consumption, g/kW*h 248
Liquid cooling
Power supply system heating, glow plug on each cylinder
Gear box (4+4)x3, reverse.
Gear transmission
Power steering
(//tractor-service.com)
Two-disc clutch
Rear differential lockable
Rear pneumatic brakes
There is a parking brake
Dimensions L/W/H, mm 4030/1650/2230
Wheelbase, mm 2020
Front/rear axle width, mm 1250-1350/1200-1500
Ground clearance, mm 325
Weight, kg 2505/2715
Speed, km/h -
Tire size 8.3-20/12.4-28
Tank volume, l 77
Power take-off shaft, rpm. 540/1000
Traction force on the hook, kN 12
Lifting capacity, kg 880
Number of pairs of hydraulic valves 2
Minimum turning radius, m 3.5
Loads, kg 144
