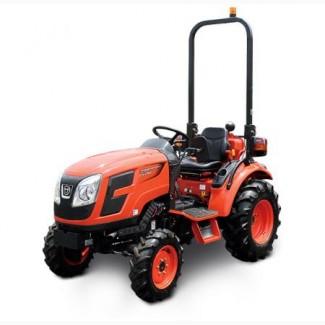

Tractor Kioti CK35 H CAB, new, from the exhibition, Korea, 2013, Kirovohrad region.

ENGINE
Model 3A165LWM
Working volume (cm3) 1647
Engine power (kW / hp) 25.4/34
Nominal rotation frequency (rpm) 2600
Engine type four-stroke
Number of cylinders 3
Type of fuel diesel
The type of cooling system is water.
The type of arrangement of the cylinders is vertical.
Direct fuel injection type
Specific fuel consumption (g / kW h) ≤264
Dry air filter type
"Cold start" system yes
TRANSMISSION
Gearbox type synchronized hydrostatic (3 forward +3 reverse)*2
The type of clutch is single-disc.
GENERAL TECHNICAL PARAMETERS
Wheel formula 4 x 4
Structural weight (kg) 890
Front counterweights (kg) no
Rear counterweights (kg) no
Maximum speed (km/h) 1.10 ~ 16.24
Maximum speed in reverse (km/h) 6.31
Length including rear suspension (mm) 2,684
Width (mm) 1 121
Height (mm) 1970
Wheelbase (mm) 1,470
Front wheel track (mm) 910
Rear wheel track (mm) 890 ~ 935
Agricultural clearance (mm) 310
Nominal voltage of the electrical system (in) 12V
RUNNING SYSTEM
Drive type is direct
Rear differential lock yes
The size of the fronttires 6.0 -12(//tractor-service.com)
The size of the rear tires is 9.5 - 16
Power steering yes
Working disc brake in the oil bath
Parking brake with a mechanical drive
HYDRAULIC SYSTEM
Number of hydraulic pumps 1
The rear suspension is three-point.
The number of hydraulic valves is 1 pair
Hydraulic outlet under the trailer yes
Additional distributor no
Maximum lifting force (kN) 503
Diameter of the upper suspension point (mm) 19.3
Diameter of the lower suspension point (mm) 22.4
REAR PTO SHAFT
Type dependent
Standard size of shaft with splines (six teeth Ø 35 (mm)
Rotational frequency (rpm) 540/1000
REFILL VOLUMES
Fuel tank (l) 30
Radiator (l) 7.4
Engine oil sump (l) 5.8
Gearbox (l) 27
Front axle (l) 4.5
PACKAGE|200
Лічильник мотогодин так
Spring-loaded seat yes
Compressor no
Rear-view mirrors yes
Front wings no
Mass switch no
Socket for the trailer yes
Accidental launch protection yes
Safety arc no
Cabin yes
No tape recorder
No air conditioner
