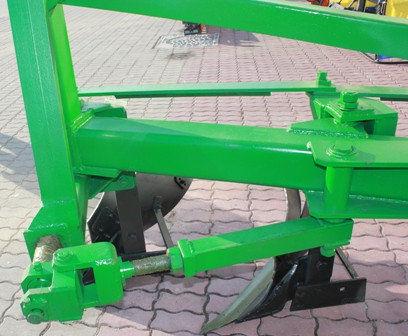

Plug pyatikorpusny p-5-35/50 hinged with adjustable working width, Kirovohrad region.

The five-body hinged plow is intended for plowing soils undergrains and technical crops to a depth of up to 30 cm, not clogged with stones, slate and other obstacles, with a specific resistance to 0.09 MPa and hardness up to 4.0 MPa.

   The plow is aggregated with tractors of class 3.0.

   Advantages:

- The system of adjustment of the grip width allows to optimize plowing parameters depending on the soil conditions and traction capabilities of the tractor.tractor.

- High-quality plowing (good turnover of the layer, compaction of plant residues and soil crumbling, uniformity in depth).

- High productivity, lack of technological downtime due to reduced clogging (due to increased clearance under the frame, absence of plows and arrangement of plow bodies on the side of the frame).
(//tractor-service.com)
- Fuel economy (compared to plows with a constant working width - 5 liters/ha).

Technical characteristics

Productivity for 1 hour of the main time, ha/h.  1.6-1.9
Width of capture, m 1.75-2.5
Cover width, mm 350-500
Plowing depth, cm 18-30
Clearance under the frame, mm 750
Distance between bodies, mm 850
Plow mass, kg 900
The type of cases are half-screw with angled and springs.
Tractor power, hp  130-180
