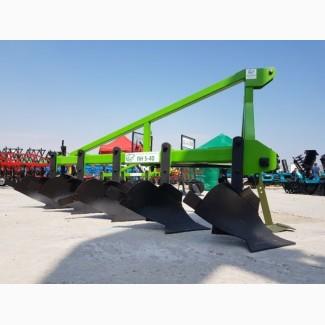

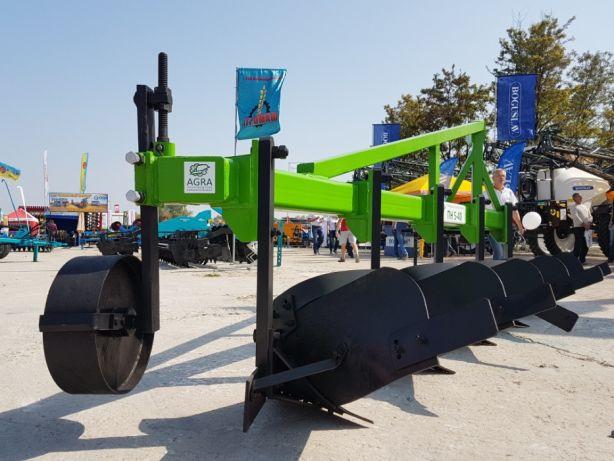

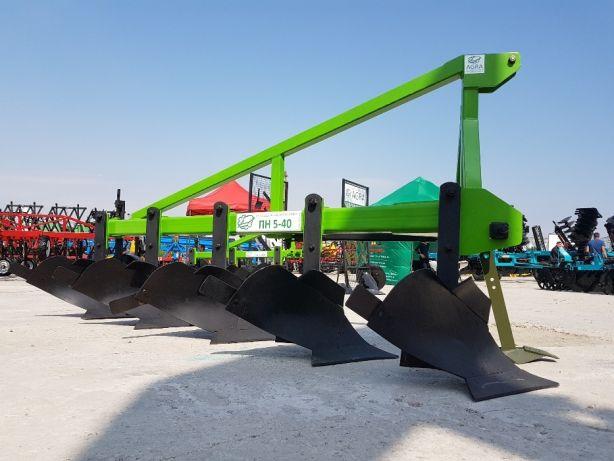

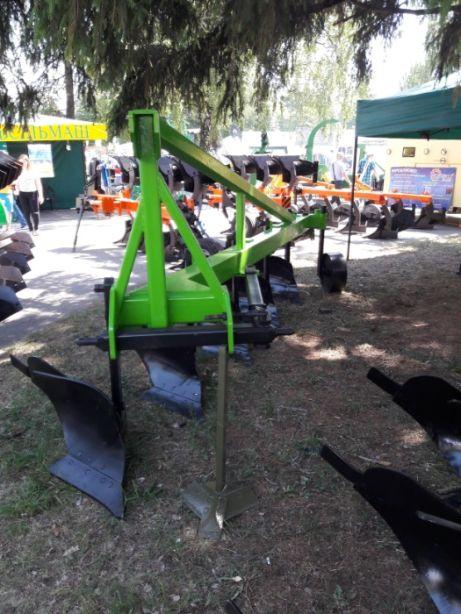

Plow NAUKA PN 5-40 grip 2.0 m, Kirovohrad region.

Performance in 1 hour
of the main time, ha/h 1.4-1.5
Width of capture, m. 2.0
Cover width, mm 400
Plowing depth, see 18-30
Clearance under the frame, mm 750
Distance between bodies, mm 850
Plow mass, kg. 800
Type of cases - semi-screw with angled and feathers.
Powertractor, hp 140-180
Aggregability with tractors (T-150, T-150K, KhTZ 17021)(//tractor-service.com)

The five-body spring plow is intended for plowing soils undergrains and technical crops to a depth of up to 30 cm, not clogged with stones, slate and other obstacles, with a specific resistance of up to 0.09 MPa and a hardness of up to 4.0 MPa.

The plow is aggregated with tractors of class 3.0.

Advantages:

- High-quality plowing (good soil turnover, compaction of plant residues and soil crumbling, uniformity in depth).

- High productivity, absence of technological downtime due to reduced clogging (due to increased clearance under the frame, absence of plows and arrangement of plow bodies on the side of the frame).

- Fuel economy of 5 liters/ha.
