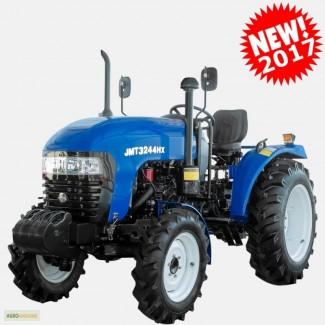

JINMA JMT 3244HH mini-tractor Warranty and service from DTZ factory, Dnipropetrovsk region.

Technical characteristics of JINMA JMT 3244ХХ

3 cylinders
GUR
Gearbox (4+1)x2 + stroke reducer
2-disc clutch
Tire size 7.50-16/11.2-24

Constructive features:

reliable 3-cylinder engine;
gearbox (4+1)x2 + stroke reducer;
hydraulic power steering;
new design;
4×4 all-wheel drive.;
2-speed PTO 540/1000 rpm;
separate oil baths;
convenient location of control systems;
manual gas;
hydraulic outlet with 2 breakaway couplings;
parking brake;
a spacious place for the operator;
reinforced hydraulic suspension mechanism with stepless adjustment of the height of the lower rods;
adjustable front and rear track;
rear axle differential lock;
wide pedals with a long stroke.

Complete set:

compressor with a belt drive;
comfortable adjustable seat with armrests and a headrest on shock absorbers;
electronic instrument panel (hour meter, oil pressure gauge, fuel level gauge, tachometer, water temperature gauge, battery charge indicator, ammeter, etc.);
mass switch;
electrical outlet for the trailer;
rear additional headlight;
rear view mirrors;
hydraulic inlet/outlet with quick-release couplings;
front wingswheels;
front suspension loads 4x12 kg;
loads of rear wheels 2x35 kg;
electric cigarette lighter 12 volts;
coupling device for a trailer.

Tractor power, hp (kW) 24 (17.6)
Wheel formula 4x4(//tractor-service.com)
The engine type is a vertical, 3-cylinder 4-stroke diesel with liquid forced cooling and direct injection.
Engine start electric starter with safe start
Engine volume, cm3 1532
Cylinder diameter/piston stroke 85x90
Nominal fuel consumption, g/kW*h 248
Typefuel pump plunger, in-line
Nominal revolutions of the crankshaft of the engine, rpm 2350
Nominal traction force, kN 6.6
The type of engine oil is mineral or semi-synthetic for diesel engines.
Nominal oil consumption in the engine, g/kW*h 2.04
Gear box (PPC) (4+1)x2 + stroke reducer
The type of oil in the gearbox, the rear axle is transmission.
The type of oil in the front axle is transmission.
Rear differential lock +
Dry, two-disc clutch
Power steering +
Cooling system fan drive V-belt transmission
Drum-type brake mechanism
Revolutions of the power take-off shaft (PTO), rpm 540/1000
The pump type of the hydraulic system is a gear pump
The maximum load capacity of the hinged mechanism, kg 420
Minimum clearance, mm 295
Wheel base, mm 1645
Wheel track, rear mm 1050-1310
front 1080-1280
Sizerear tires 11.2-24
front 7.50-16
Minimum turning radius, m with one-way brake 2.8±0.2
without brake 3.0±0.2
Theoretical speed of movement, km/h forward 1.75-26.4
back 2.28-11.02
Fuel tank volume, l 18.0
Engine crankcase volume, l 6.6
The volume of the gear case and rear axle, l 14.0
The volume of the front axle crankcase, l 6.0
Engine cooling system volume, l 10.0
Hoist body volume, l 9.0
Overall dimensions (LxWxH), mm 3080x1280x1930
Curb mass, kg 1275
$5400

Our DTZ plant has been operating on the Ukrainian market for more than 15 years. Over these almost two decades, our company has won the trust of consumers and the respect of competitors thanks to comfortable price levels, short delivery times and high quality products that easily compete with imported counterparts. We are a reliable supplier of agricultural machinery, motorcycle machinery, garden and park machinery.

The products of our factory comply with the most modern industry standards and regulations, meet the requirements of rapidly developing technologies and have an attractive modern design.

For example, mini tractors under the DTZ, DONGFENG, JINMA, DW, XINGTAI brand can be found in almost every farm.
