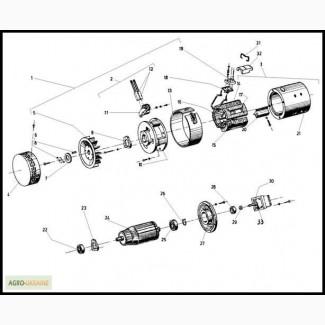

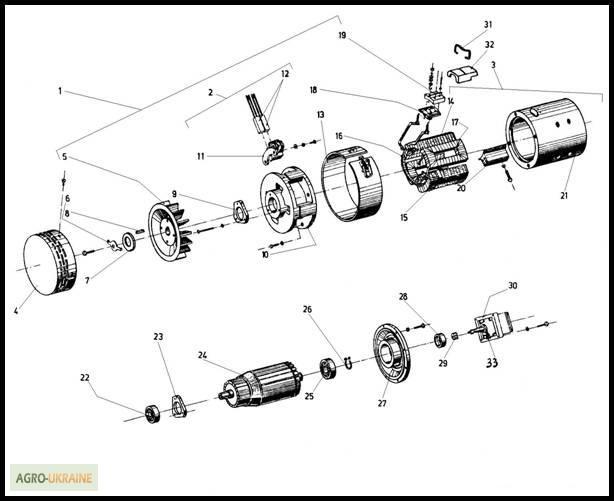

A14-Х and A18-Х pumps with electric motor EC 6, 5/7, 5/28 ЕВ 687, Kharkiv region.

Position no.
Catalog No.
Name
Pieces
HYDRAULIC SYSTEMPump with electric motor

_1
_ 7021 29.00.00-07
Pump with electric motor A14X-3 EC 6.5/7.5/28
1
_2
_ 7021 29.00.00-7
Pump with electric motor A18X-3 EC 6.5/7.5/28
1
1
_ 263009 00.00.3
Pump electric motor ES 6.5/7.5/28-3
1
2
_ 263009 01.00.00
Shield with brush holders
1
3
_ 263009 50.00
Stator
1
4
_ 620129.409131.002.77
Casing
1
5
_ 620129.408834.012.79
Fan
1
6
_ 620129.409898.003.77
Safety washer
1
7
_ 621029.409891.006.77
Washer
1
8
_ 620129.560821.001.77
Key
1
9
_ 620129.403144.003.77
Bearing cover
1
10
_ 620129.403544.002.77
Rear shield
1
11
_ 2983 10.05
Brush holder
3
12
_ 263006 10.01
Brush EZ 10x20x32
8
13
_ 298 10.13
Protective belt
1
14
_ 263009 51.00
Serious coil I
1
15
_ 263009 51.00
Serious coil II
1
16(//tractor-service.com)
_ 263009 56.00
Shunt coil
1
17
_ 263009 58.00
Shunt coil II
1
18
_ 620129.506122.011.77
Sealing
1
19
_ 620129.506388.005.79
The basis
1
20
_ 29830 10.18
Pole
4
21
_ 620129.403162.007.77
Body
1
22
_ BDS 4884-78
Ball bearing 6305-2Z Pf
1
23
_ 620129.403144.004.77
Bearing cover
1
24
_ 263009.30.00
Rotor
1
25
_ BDS 4884-78
Ball bearing 6207 2Z Pf
1
26
_ BDS 2170-75
Safety ring B35
1
27
_ 620129.403548.001.77
Front shield
1
28
_ 735.33.1014.01.01
Bushing
1
29
104212 2830 00.04
Toothed sleeve
1
30 1
260015 4508 00.00
Gear pump A14X
1
30 2
265506 4509 00.00.00
Gear pump A18X
1
31
_ 620129.508725.011.79
Bracket
1
32
_ 620129.502426.001.78
Terminal cover
1
33
ON-04 73438-81
Seal B 17.4x29x6.7-1
1
