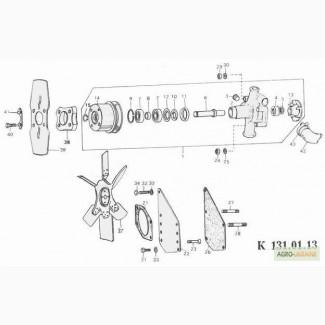

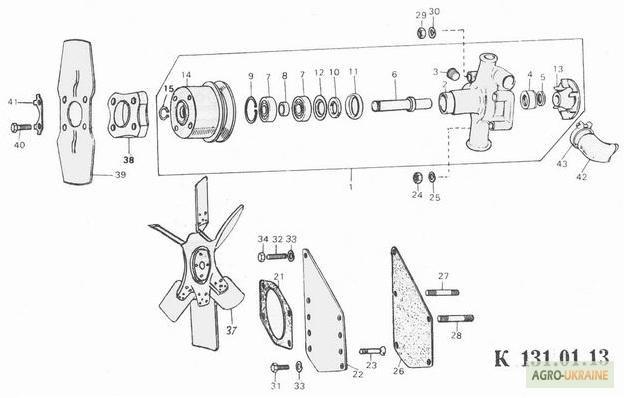

Water pump for the D2500k engine on the Balkankar loader, Kharkiv region.

Position No.
Catalog No.
positional number
Name
1
7 459682
В41312434
Pump water
2
6 403460 4566692871
В37711226
Body of waterpump
3
6 236557

Plug I con. 3/8" 2527-71/Zn
4
6 416357 4566692582
В2415273
Sealing 1201-1307013-VAZ
5
6 233994

Ring I A36 GOST 13941-61
6
6 459726 4566692113
В32715134
Water pump shaft
7
6 231814

Ball bearing 6302 RS DIN 625
8
6 437031 4566692160
33142115
Spacer bushing
9
6 235656

Ring A42x1.6 BDS 2170-77
10
6 459711 4566692953
В33813105
Sealing
11
6 459697 4566693006
В33157057
Fastener
12
6 459705 4566694232
В33157054
Washer
13
6 459732 4566692425
В37841126
Wheel working
14
6 404737
В31145431
Belt skiff
15
6 231553

Ring B15x1 BDS 2170-77
21
6 432401 4566692940
36861721
Sealing
22
6 431536 456669
36236108
The back plate of the water pump
23
6 233551

Screw 2A M8x50/30-8.8 BDS 1359-83/fos.
24
6 224106

Nut M8-8 BDS 744-83/fos.(//tractor-service.com)
25
6 205035

Washer 2-8L BDS 833-71/Zn
26
6 432387 4566692895
В36861105
Sealing
27
6 239414

Pin A M8x60-8.8 BDS 5926-87/Zn
28
6 23483

Pin A M8x50-8.8 BDS 5926-87/Zn
29
6 224106

Nut M8-8 BDS 744-83/fos.
30
6 205035

Washer 2-8L BDS 833-82/Zn
31
6 235100

Bolt A1 M8x16-8.8 BDS 1232-86/fos.
32
6 237675

Pin A M8x28-8.8 BDS 5926-87/Zn
32
6 239414

Pin A M8x60-8.8 BDS 1238-87/Zn
33
6 205035

Washer 2-8L BDS 833-83/Zn
34
6 224106

Nut M8-8 BDS 744-83/fos.
37
8 481093 4566693386
31257034
Fan
37
8 464177 4566693914
31257408
Fan
38
6 446627 4566694047
В31841011
Extension cord
39
6 430190 4566692132
В31253158
Fan
40
6 224611

Bolt A1 M8x30-8.8 BDS 1232-86/Zn
40
6 239560

Bolt A1 M8x40-8.8 BDS 1232-86/Zn
41
6 431682 4566692569
31734104
Safety plate
42
6 458305 4566692731
В34828455
Rubber connection
43
8 449250 4566693790
2481818
Skoba 41 ЗН-ВК 222-68
