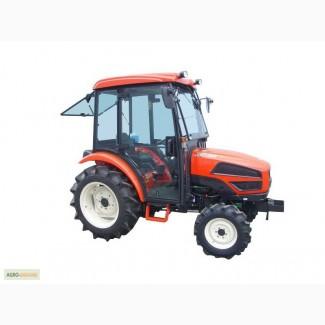

Mini tractor Kioti-CK35C with heated cabin, Sumy region.

Description and characteristics:

Technical characteristics of the tractorKIOTI-CK35 (Korea)

Diesel engine, 3-cylinder, with liquid cooling.

Power 34 hp. (25.4 kW)

Engine volume 1650 cm3

Glow plug heating system

The drive is complete, connected mechanically.

Blockable differential

Disc brakes, in an oil bath

Two-disc clutch

Gearbox mechanical, synchronized, 8+8, reverse

Speed 1.5 - 22.9 km/h

Rear PTO 540/1000 rpm

Front PTO as revolutions of the engine(//tractor-service.com)

Productivity of the hydraulic pump is 48 l/min.

Hydraulic equipment, one double-acting valve with a quick-release connection for connecting attachments, a double valve with a joystick for controlling the loader, power steering, a system for positional control of the levers of the rear 3-point coupling with the following depth mode.

Control sensors tachometer, temperature sensor, engine hours counter, fuel level sensor, oil pressure sensor

The load capacity of the rear hydraulic lift is 800 kg.

Fuel tank 30 l

Weight 1475 kg

Length 3190 mm

Width 1385 mm

Height 2390 mm

Ground clearance 352 mm

The minimum turning radius is 2900 mm.

Front/rear track width 1125/985, 1050, 1100, 1170, 1300

Tires front/rear 7-14/11,2-24

Additional equipment: power steering, adjustable steering wheel, bow and safety belt, suspension device with adjustable length vertical pull and cassette mechanism, sprung seat with weight adjustment.
