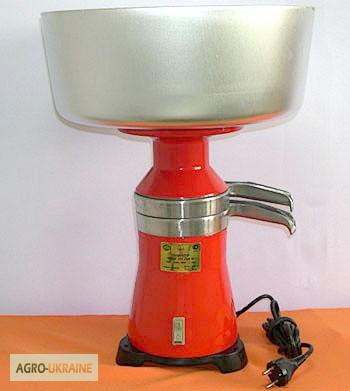

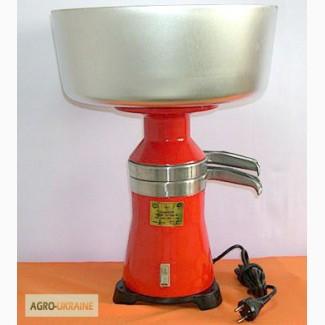

Separator-cream separator "Motor Sych SCM-100-18" (body-metal), Poltavskaya region.

Milk is a perishable product that needs to be processed quickly. And with the help of a separator, you can easily separate cream from milk, cottage cheese fromwhey, butter from cream, etc.

The advantages of separators over the usual method of making cream and butter are obvious. Previously, it was necessary to pour strained milk into a shallow, wide dish made of tin and clay, after which the product was left overnight. In the morning, the cream separated from the milk, collecting on top. They collected the cream with a skimmer, trying as hard as possible to guess the line between the cream and the milk. Then the cream was left for 48 hours to ripen.

Or you can put the milk in the refrigerator, do not touch the container for several days and get a good layer of fat cream. The process is long and also a little risky, since the milk can turn sour after a long standing time, and you still won't be able to separate all the fat.

The main advantage of separators is speed and convenience. It is only necessary to pour milk and press the button - the process of separation and collection will be performed by the machine. The operator only needs to take care of the device and keep it perfectly clean, which is a guarantee of quality.

Motor Sych SCM-100-18 cream separator (metal) is intended for separating whole milk into cream and skimmed milk with cleaning.

The Motor Sich SCM-100-18 cream separator is designed for separating whole milk at a temperature of 35-40 degrees and is intended for separating up to 100 l/hour of whole milk into cream and vice versa. The ratio of volumes of cream to extract is regulated in the range of 1:4 - 1:10, the content of fat in extract does not exceed 0.05%.

This is the best choice for household use and small farms containinglarge horned cattle. It not only separates milk and cream, but also cleans the products from impurities remaining after filtering milk.

Separator Motor Sich SCM 100-18 is very convenient both in the household and in production, when it is not always possible to completely clean milk. But you always want to get quality products, no matter whether for sale or for yourself. Of course, you can strain the milk through gauze, but this does not always give an ideal result. Motor Sich electric separators solve this problem.

All parts of the Motor Sich SCM 100-18 milk separator are made of absolutely harmless food-grade aluminum alloys. The body of the 60-watt electric motor is made of high-strength practical plastic, the motor works from a 220V network with a frequency of 50 Hz.

Recommendations for use:
• It is best to separate the milk immediately after milking or you can heat it up to 35°-40°С (at this temperature the milk is defatted much better).
• You can adjust the fat content of the cream to your liking. The adjustment is made by a screw with a square hole located in the upper part of the separating plate of the separator. If you want to get thick cream, then you need to turn the adjusting screw clockwise, and if you want liquid, then just turn the adjusting screw counterclockwise. As a rule, only 1 turn in one direction or another is enough for the necessary adjustment.
• The time of continuous operation of the milk separator should not exceed 1 hour, then it is necessary to take a break in the operation of the milk separator to cool it down - at least 30 minutes.
(//tractor-service.com)
Technical characteristics
Mass, kg 6
Bowl diameter, mm 365
Height, mm 520
Milk productivity, l/h, more than 100
Drum rotation frequency, min 10500
The number of plates in the drum, 10-12 pcs.
Capacity of the bowl of the milk receiver, l 12
Fat content in the extract,% 0.05
The range of adjustment of volume ratios of cream to reverse 1:4 ― 1:10
Electricity consumption, kWh 0.120
Temperature of separated milk, °C 35-40
Power consumption, W 60
Nominal voltage, V 220

Detail/Material
body: metal
float chamber: metal
receiver of cream and extract: aluminium
milk receiver: aluminum
plates: aluminum
