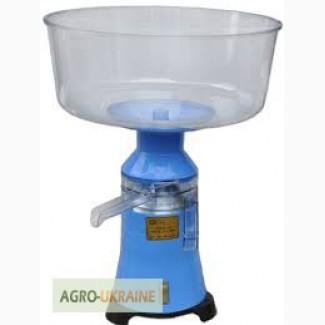

Cream separator "Motor Sich SCM-80-19", household separator, Poltava region.

Cream separator "Motor Sich SCM-100-19" is used to separate whole milk intocream and skimmed milk, also simultaneously cleans from mechanical impurities and pollution.

The parts of the separator include impact-resistant polycarbonate.

The separator has a number of advantages:
· does not undergo corrosion;
· the color does not change over time and does not require touch-up;
· dampens the vibration of high frequencies;
· does not deform due to careless handling;
· it is much easier to clean from milk products and contaminated;
· increases electrical safety several times;

To achieve the best result, milk is heated to a temperature of 35-40 degrees. Milk is poured in while the bowl of the separator is rotating, and the process of separating cream from milk takes place inside the cream separator.

There are 2 tubes in the separator: cream comes out through one, skim milk through the second. They can be easily distinguished by their volume - the stream of cream is much thinner.

The principle of operation of the separator consists in the rapid rotation of the drum, thanks to which the centrifugal force acts on the milk and as a result the milk is separated.

In household separators, the drum works at a speed of more than 10,000 rpm. Due to this speed, the milk is quite quickly divided into 2 parts - fat and non-fat. The speed is not gained instantly, but in a minute.

Technical characteristics:

Country of manufacture Ukraine
Manufacturer Motor Sych
Weight, kg 6(//tractor-service.com)
Bowl diameter, mm 365
Height, mm 520
Milk productivity, l/h, more than 100
Drum rotation frequency, min 10500
The number of plates in the drum, pcs. 10-12. Fat content in the extract, % 0.05
Емкость чаши молокоприемника, л 12
Содержание жира в обрате, % 0,05
The range of adjustment of volume ratios of cream to reverse
1:4 ― 1:10
Electricity consumption, kWh 0.120
The temperature of separated milk, °C from 35 to 40

Detail/Material

body: polypropylene
float chamber: polypropylene
receiver of cream and extract: polycarbonate
milk container: polycarbonate
plates: polycarbonate

Watch a short video on the model "Motor Sych SCM-100-19" at the link: https://www.youtube.com/watch?v=i595lLcZpVE

And also see a video overview of the comparison of 2 models of separators: "Motor Sich SCM-100-19" and "Motor Sich SCM-100-18" - at the link: https://www.youtube.com/watch?v=usOzpU1Fgf0&ebc=ANyPxKpnjjwINU6oF2LZuSbWkNURljMN4-51UshRH64F8X7G5W1bS8jcA9GqrQn6vQl6Nx3ea-f8l_j-LnT1FvNviDEABalhBQ

Make your choice. Now you know everything about separators.
