Line for separating grape pits from cake, Transcarpathian region.

The line is intended for separating pits from grape pomace, crushed rose hips and other similar products. The product is processed in dry form, humidity up to 50%. The main operations performed by the line: loosening the pomace, separating the seeds (seeds), cleaning the seeds from impurities.
Description of the work of the line:

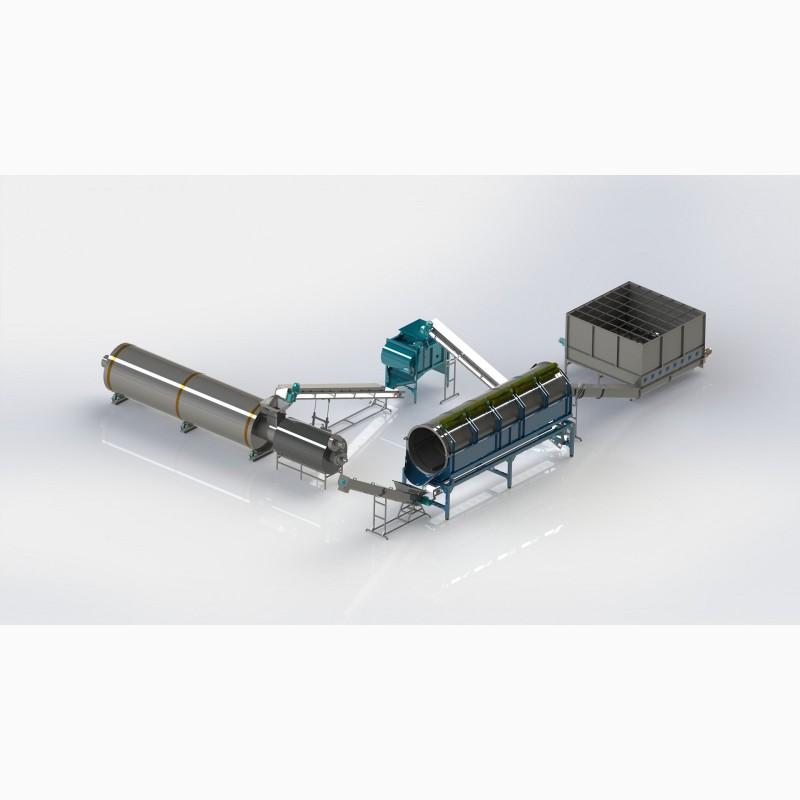

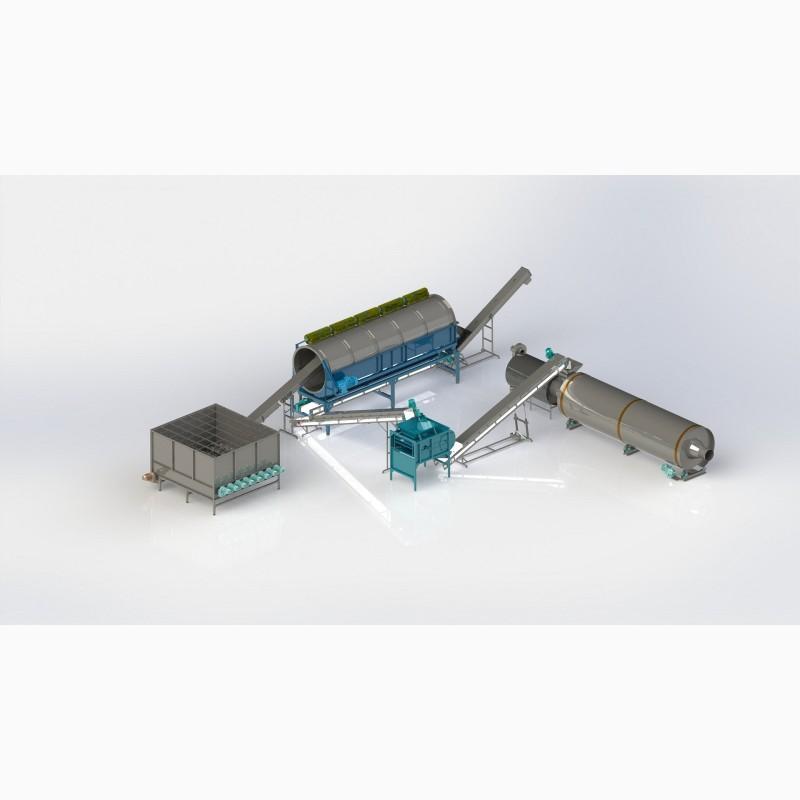

The product (grape pomace or crushed rose hips) is fed into the receiving hopper, furtherby a screw conveyor, where partial loosening occurs, the product is fed to the machine for separating the pits. On the machine, large particles of skin and pieces of stems are selected, and bones (seeds) and small particles are sifted through the holes of the drum and enter the conveyor installed in the lower part of the machine. Further, the separated bones are fed on a belt conveyor to a machine for cleaning the bones from small impurities. Cleaned pits are fed with the help of abelt conveyor into the receiving hopper of the finished product.
Possible sale of individual parts of the line.

Composition of the line:
1. Screw conveyor
Description:
Productivity: up to 2000 kg of cake/hour
The machine is made of carbon steel and painted.
Installed power: 2.2 kW 380V 50Hz
Overall dimensions: 4000x500x500 mm;
Weight: 190 kg.

2. Machine for separating grape seeds from the cake (dry and wet).
Description:
Productivity: up to 2000 kg of cake/hour
A drum rotation speed regulator is installed.
The angle of inclination of the drum is regulated.
The car is made of carbon steel and painted.
Installed power: 3 kW 380V 50Hz
Overall dimensions: 4500x1800x2500 mm;
Weight: 800 kg.

3. Machine for cleaning pits(//tractor-service.com)
Description:
Productivity: 300 kg of seeds/hour
The car is made of carbon steel and painted.
Installed power: 1.5 kW 380V 50Hz
Overall dimensions: 1500x100x1500 mm;
Weight: 180 kg.

4. Belt conveyor (for separated bones)
Description:
Productivity: 1000 kg of seeds/hour
A speed regulator is installed.
The car is made of carbon steel and painted.
Installed power: 2.2 kW 220V 50Hz
Overall dimensions: 6500x300 mm;
Weight: 300 kg.

5. A machine for crushing and breaking lumps of cake.
Description:
Productivity: 2000 kg of cake/hour
The car is made of carbon steel and painted.
Installed power: 1.5 kW 380 V, 50 Hz
Overall dimensions: 600x800x800 mm;
Weight: 58 kg.

Also available to orderadditional equipment for grape processing.
