Conveyor and grinding table. Turntable, Poltava region.

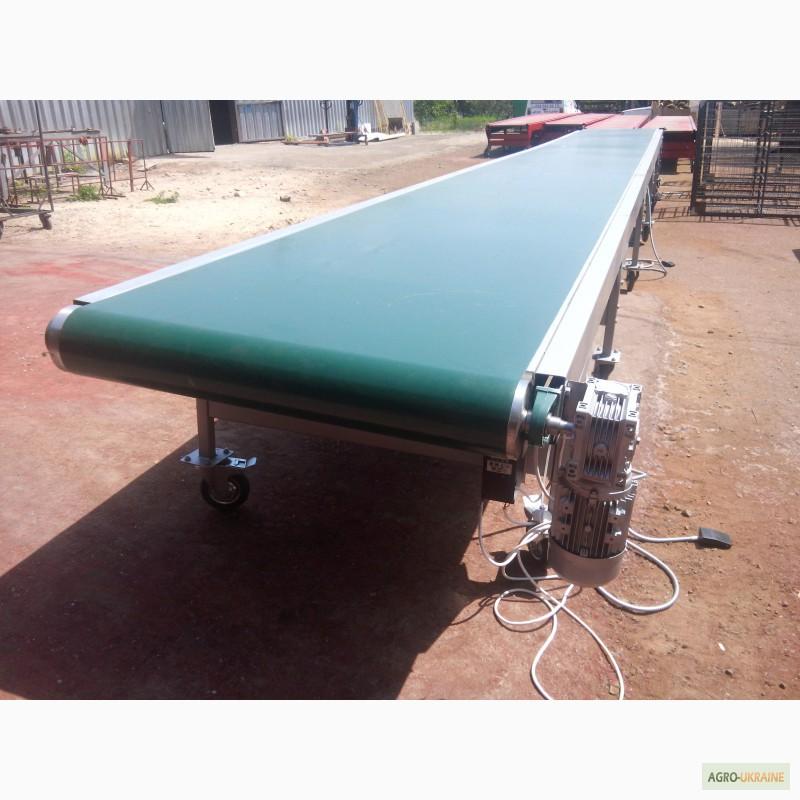

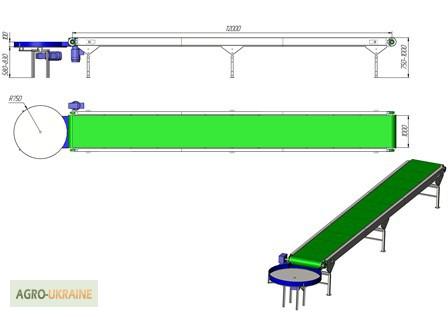

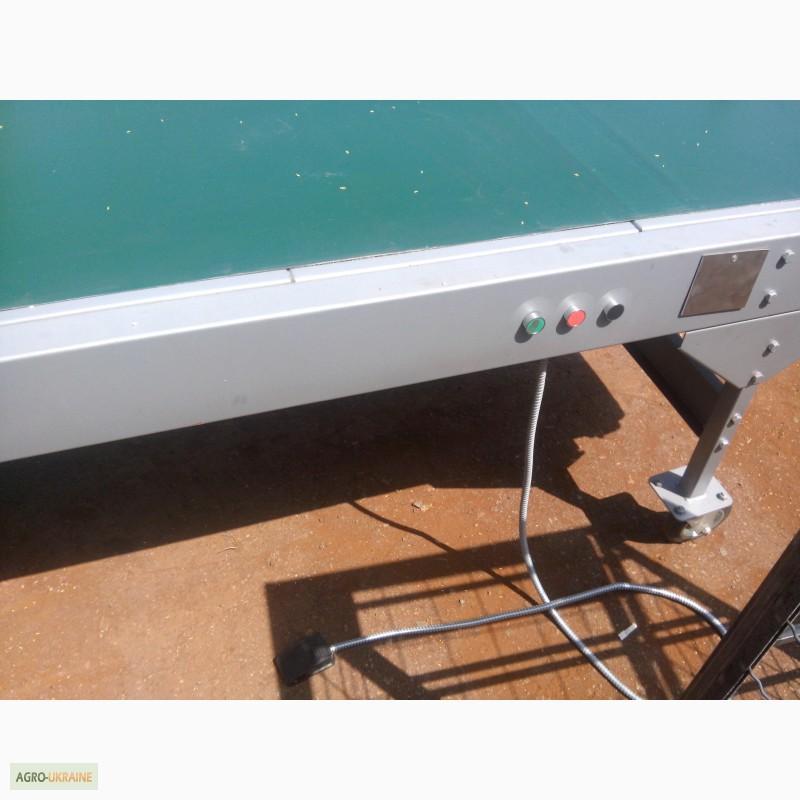

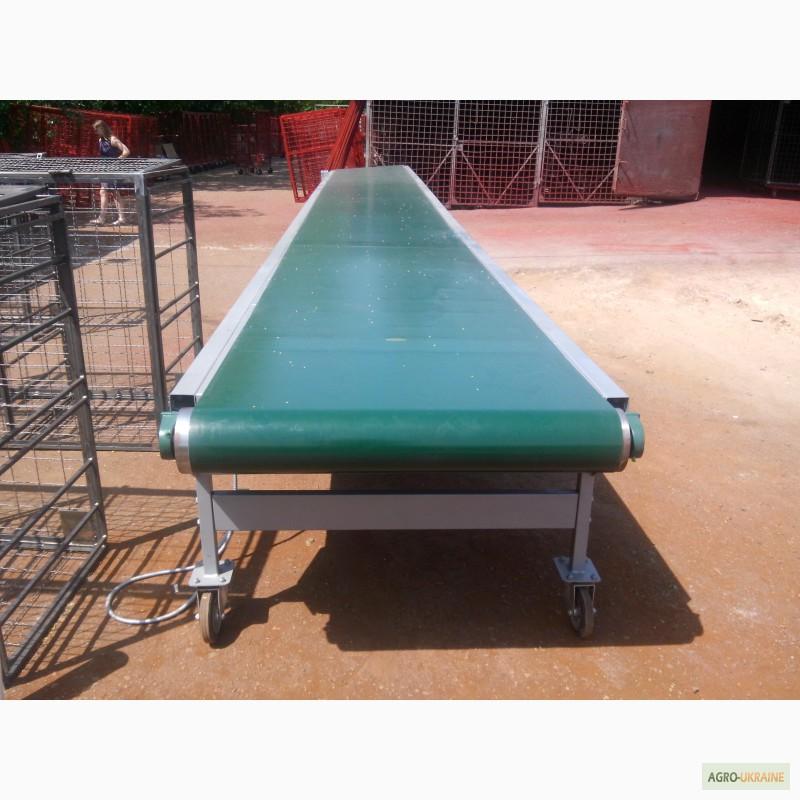

Conveyor with a length of 12000mm and a belt width 1000mm with the following characteristics:
• Conveyor type: horizontal, stationary, bent structure.
• Tape type: PVC, 2mm thick.
• The tape moves along the floor of the frame. To adjust the tension of the tape, tensioning mechanisms are provided.
• The height of the conveyor is adjustable from 750mm to 1000mm.
• The material for making the conveyor frame is a bent sheet of structural steel with a thickness of 2 mm, the supports are made of a steel profile pipe 40 * 40 * 2 mm and a bent metal sheet of 2 mm. and 4 mm.
• The drive consists of a motor-reducer made in Italy with a capacity of 1.5 kW and a frequency converter that allows you to adjust the speed of the tape.
• Adjust the speed of the tape from 0.1 m/s to 0.5 m/s.(//tractor-service.com)

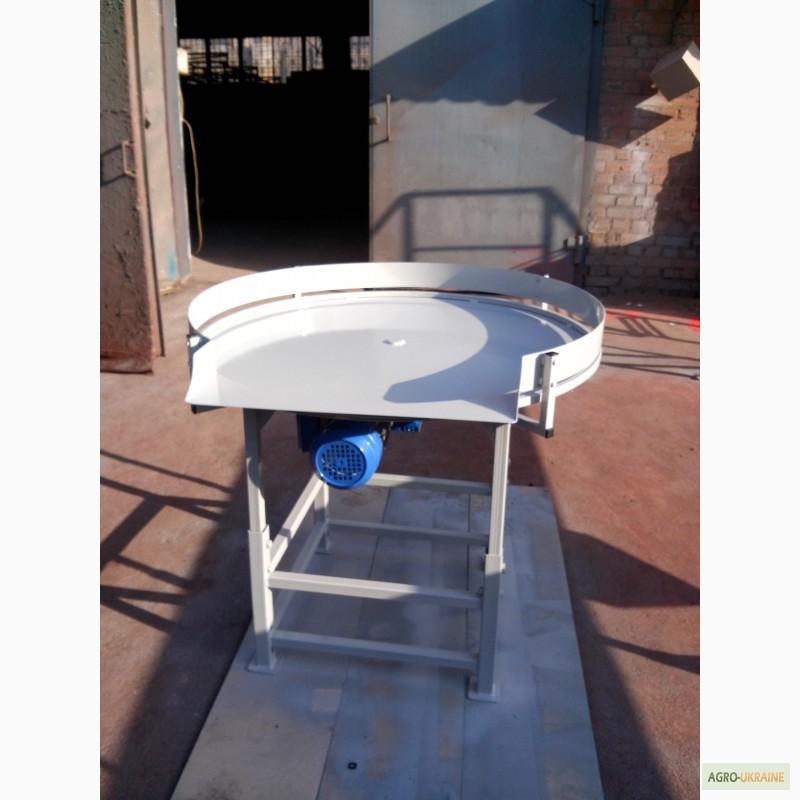

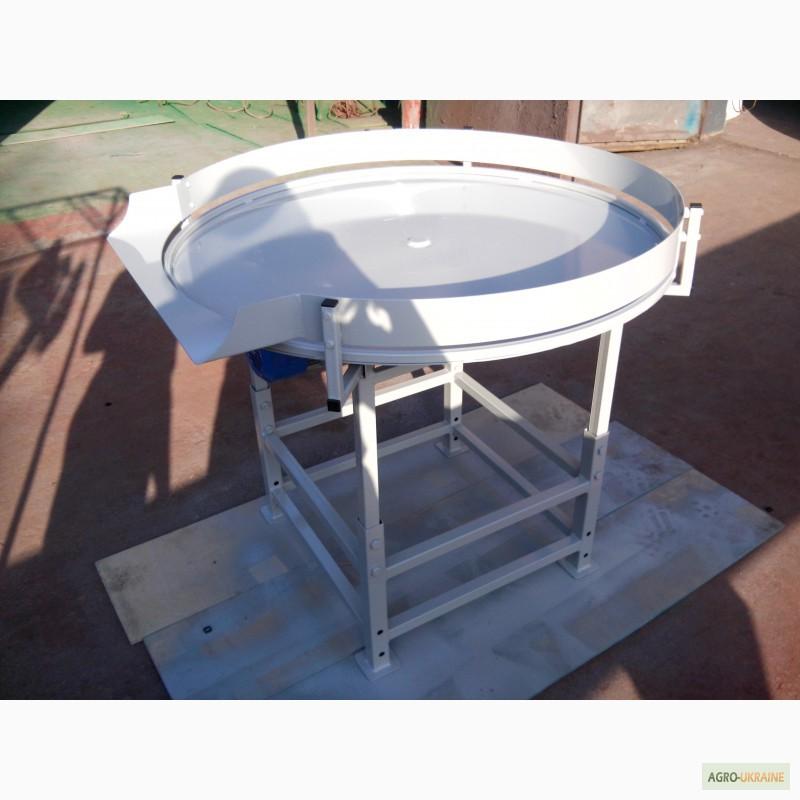

At the end of the conveyor, there is an accumulation table with the following characteristics:
• Table diameter: 1500 mm.
• The height of the legs is adjustable from 750mm to 1000mm.
• The height of the sides is 100 mm.
• Motor-reducer made in Italy with a capacity of 0.55 kW without a frequency converter.

We will make equipment of any modification to order
