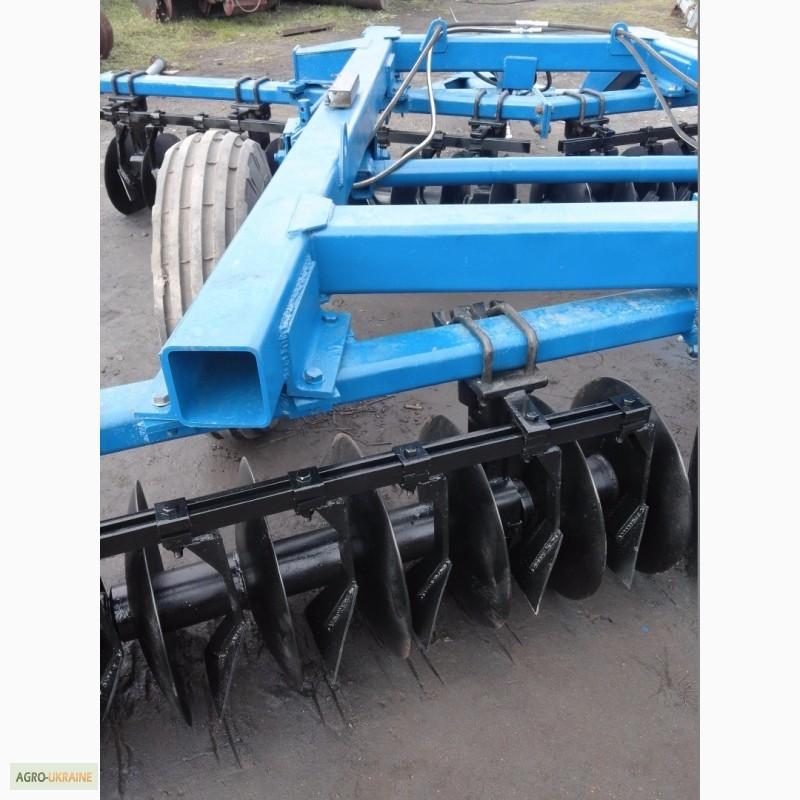

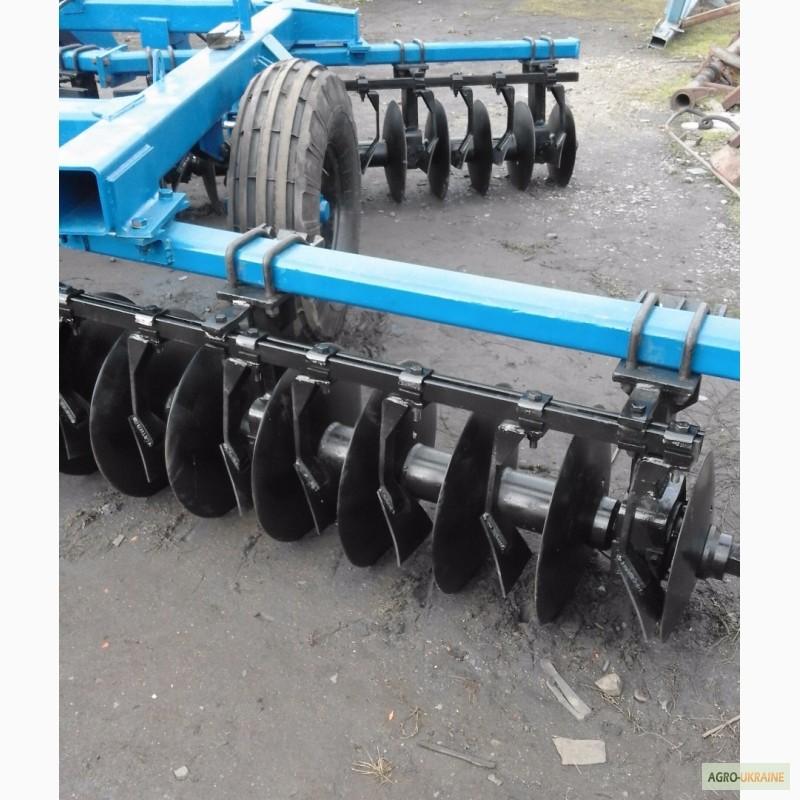

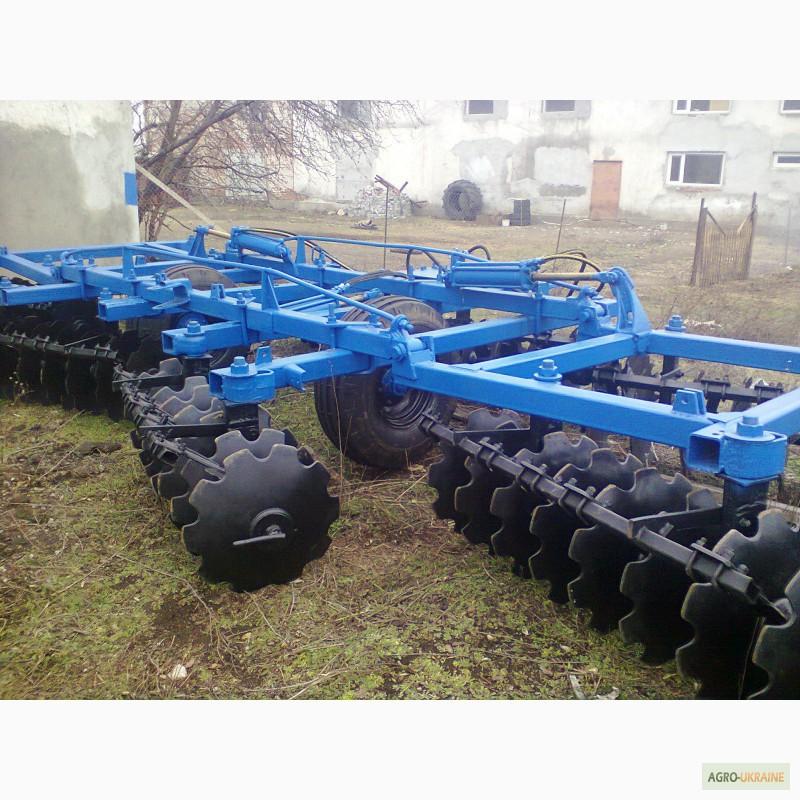

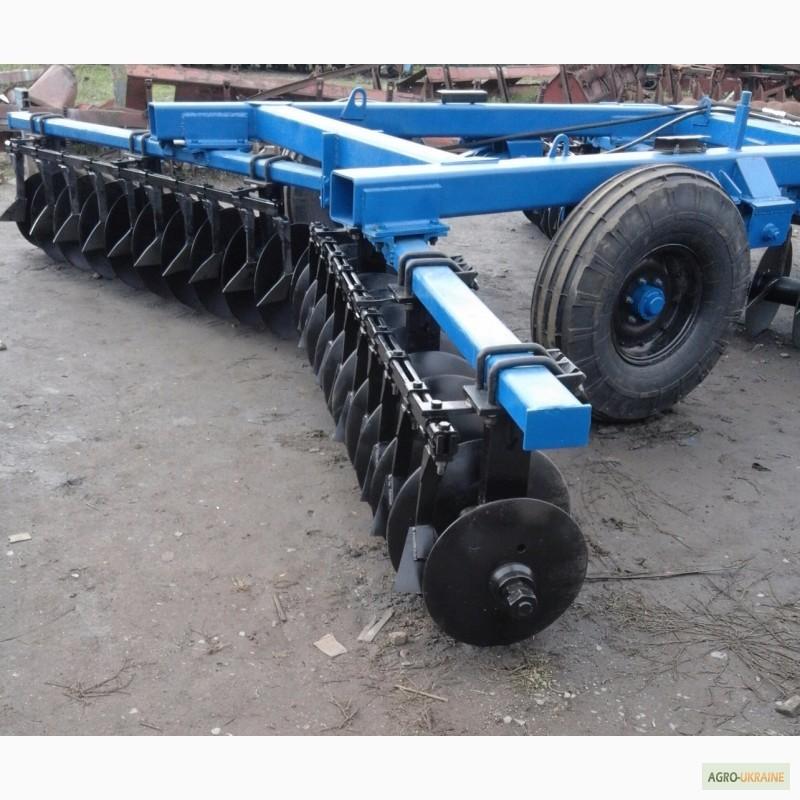

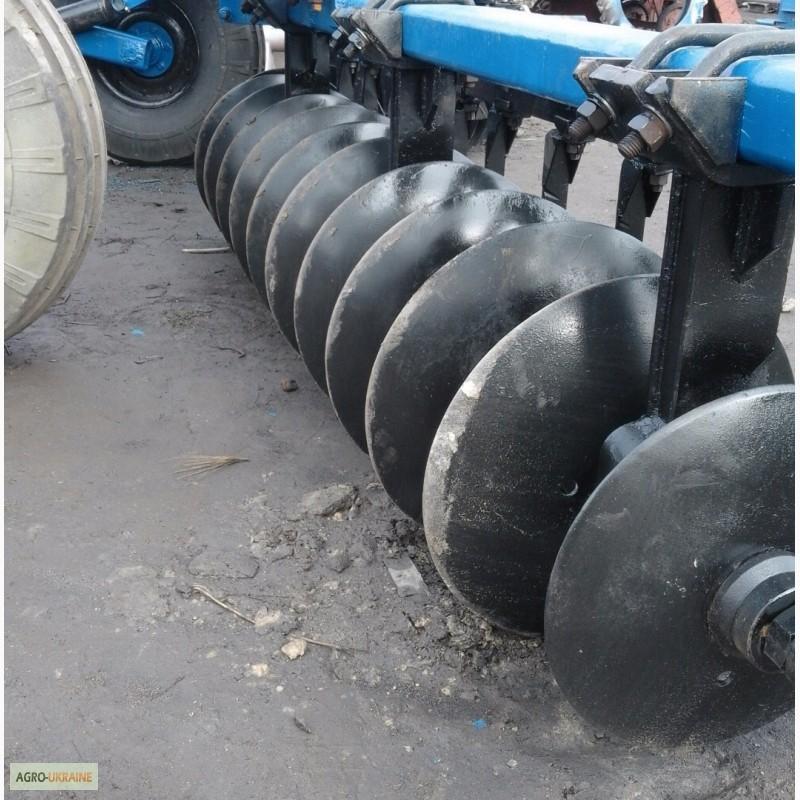

BDT-7 disk harrow, heavy, I offer to buy inexpensively, excellent condition, Nikolaev region.

Heavy disk harrow BDT - 7 is intended for the following works:
- peeling of stubble;
- cutting a layer of perennial grasses before and after plowing;
- soil preparation after harvesting plowed crops;
- mulching
- early spring harrowing - closing of moisture;
- pre-sowing soil treatment.
BDT-7 harrow is aggregated with K-700, K-701, T-150 tractors.
Description:
The main components: frames - middle and two side, trailing axle withsupport wheels, disk batteries, comb cutter, mechanism for adjusting the attack of disk batteries, hydraulic system and mechanism for lifting side frames. The harrow is transported on two pneumatic wheels with raised side frames. Four disk batteries (two front and two rear) are attached to the side frames from below. Battery disks - spherical with cutouts. The processing depth is regulated by changing the angle of attack of disk batteries.

Technical characteristics:
(//tractor-service.com)
Productivity, ha/time 6...7.5
Working speed, km/h, up to 6...12
Gripping width, m 7
Diameter of disks, mm. 680
Processing depth, cm
(for 2-3 passes) 20
Number of disks, pcs. 66
The distance between the disks, mm 220
Angle of attack of disk batteries, ° 12, 15, 18
Overall dimensions, mm 4380 × 5200 × 3000
Mass, kg: 3500
