Ring and spur rink KKSH-9.2G, Dnipropetrovsk region.

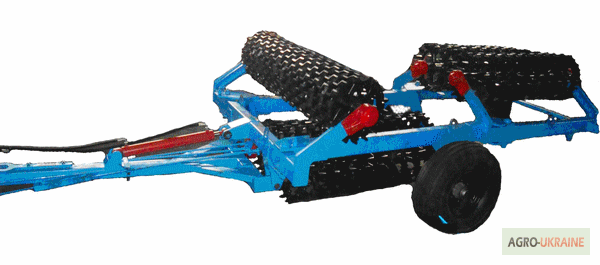

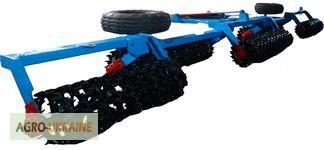

Ring-spur skating rink KKSH-9.2G
The rinks are equipped with working bodies: KKSH-9.2G Disc F520, steel, podsh.3609; KKSH-9,2G-01 Disk F460, cast iron, subsh. 3609; KKSH-9,2G-02 Disc F520, cast iron, podsh. 3609 Semi-trailer, in transport position on pneumatic tires, hydraulic, interchangeable nodes.
The use of a roller improves the uniformity of seedlings, protects crops from being blown away by the wind and from being destroyed by birds, which allows you to increase the yield by up to 30%.
KKSH-9.2G Technical characteristics: 9.2G 9.2G-01 9.2G-02
Productivity, ha/h 13 13 13
Working speed, km/h 15 15 15(//tractor-service.com)
Transport speed, km/h 20 20 20
Gripping width, mm 9200 9200 9200
Diameter of the working disk, mm 520 460 520
Material steel cast iron cast iron
Shaft diameter, mm 60 60 60
Overall dimensions: 3580x9370x1010 980 1010
Weight, kg 2900 2950 3450
