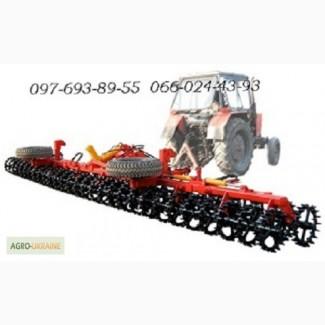

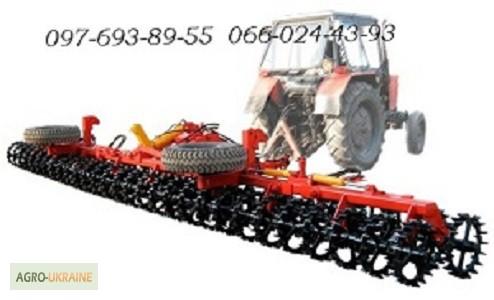

Hydrofied ring-spur rink 5-ККШ-10Г, Dnepropetrovsk region.

Five-sectionring rollers-spur 5-KKSH-10G
intended for:

• pre-sowing soil rolling to level the field surface;
• destruction of blocks;
• compaction of unseeded, late-cultivated soil;
• soil rolling to reduce moisture loss;
• post-sowing rolling to compact the top layer of the soil;
• rolling greensfertilized (siderates) before their flavoring;
• rolling snow.(//tractor-service.com)

The roller section consists of a welded frame, two disc batteries. The hinged connection of the sections and the tracking mechanism ensure good copying of the soil relief, and the staggered arrangement of the roller's working bodies ensures their self-cleaning. Triple protection of the bearing unit against dust ingress is applied. Steel working bodies 520 mm. ensure the reliability and durability of the rink.
Roller 5-KKSH-10G is aggregated with tractors of traction class 14 - 20 kN.
Technical characteristics:
Productivity, ha/time 6.7-11.5
Gripping width, m 9.6
Working speed, km/h 7-12
Overall dimensions, m:
in working position 3.5x9.7x1.2
in transport position 4.4x3.35x1.8
Weight, kg 3240
