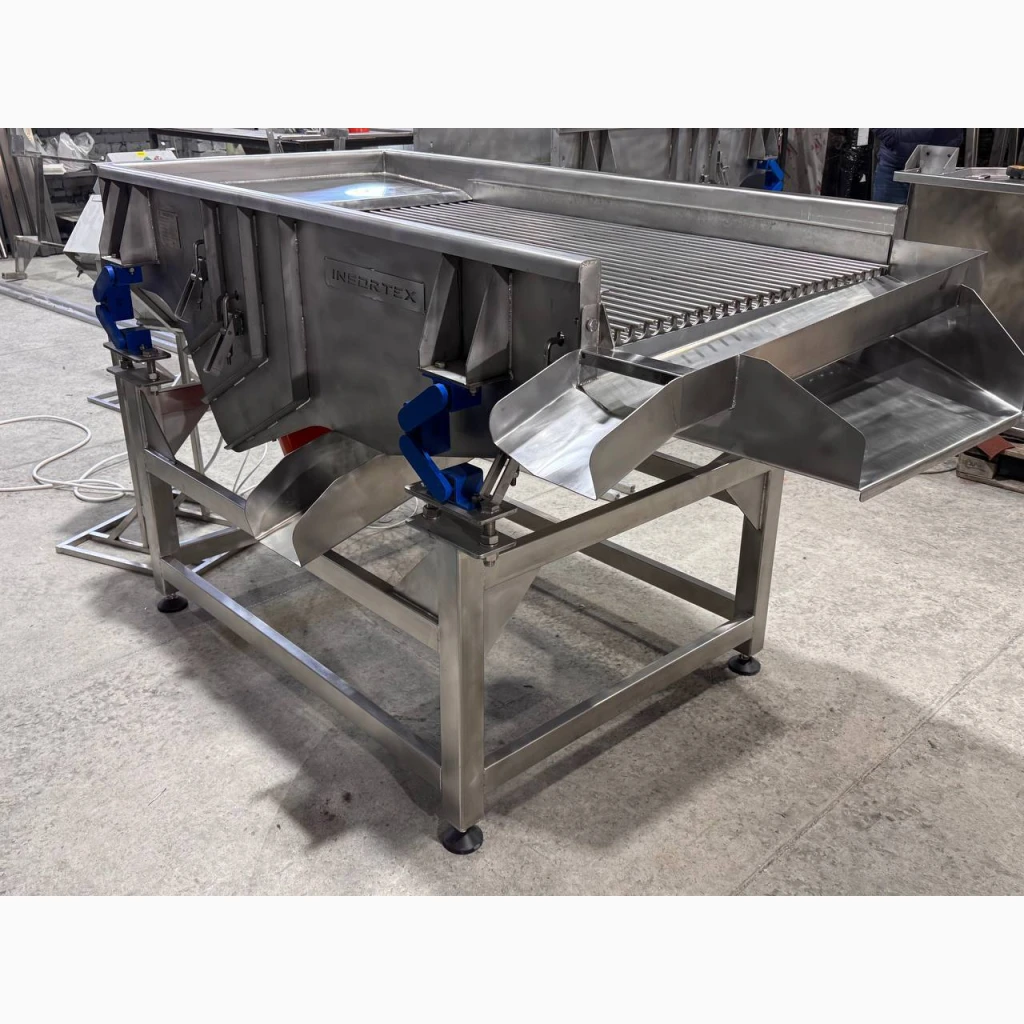

Two-level vibrating screen for frozen raspberries, Poltava region.

Used for sifting raspberries. Sieves are interchangeable. The upper sieve with a distance between the bars of 24 mm separates lumps of raspberriesraspberries, the lower sieve (8-14 mm) separates whole raspberries from scraps and semolina. The semolina falls under the vibrating sieve, and the main fraction passes further to the inspection conveyor.
All materials are made of food grade AISI stainless steel
Made of 4mm thick sheet metal
Length 2100 mm
Width 1124 mm(//tractor-service.com)
The size of the sieves is 1235*796 mm.
Two levels of sieves are installed one below the other.
Lower sieve with a distance between bars of 8-14 mm.
Upper sieve with a distance between the bars of 24 mm.
Productivity 2.5 t/h
