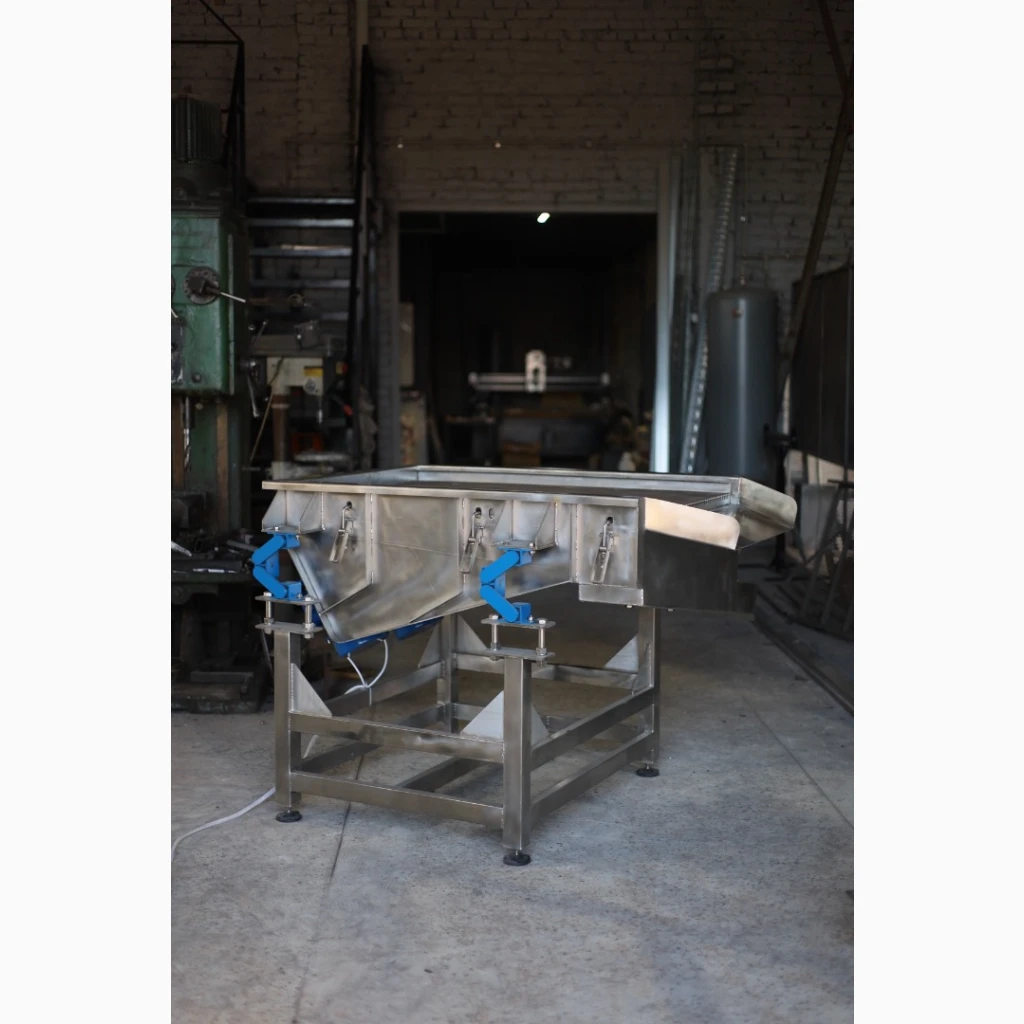

Single-level vibrating screen for frozen berries, Poltava region.

Used for sifting raspberries. A sieve with a distance between bars (8 - 14 mm) separates wholeraspberries from semolina. The lump and the whole fraction remain on the sieve and pass on the inspection conveyor, the semolina falls through the sieve and exits through a special eastern tray.
One of the main advantages is compactness.
Made of food-grade AISI 304 stainless steel, 4 mm thick sheet metal
Length 1553 mm(//tractor-service.com)
Width 1149 mm
The customer chooses the mesh sieve (from a round bar) the distance between the bars.
The sieve is easily replaceable.
Two site vibrators (0.75 kW each) with vibration adjustment using a frequency converter were installed.
ROSTA oscillating supports are installed for soft vibration.
