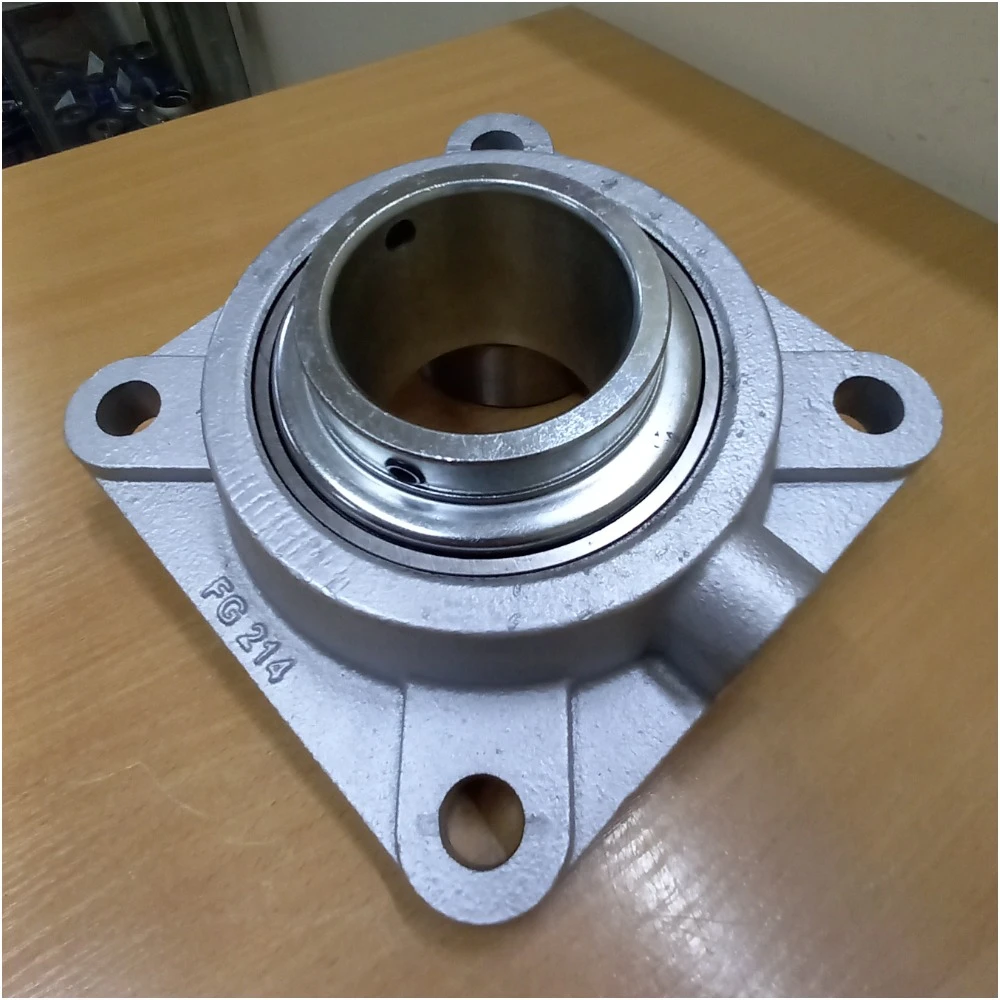

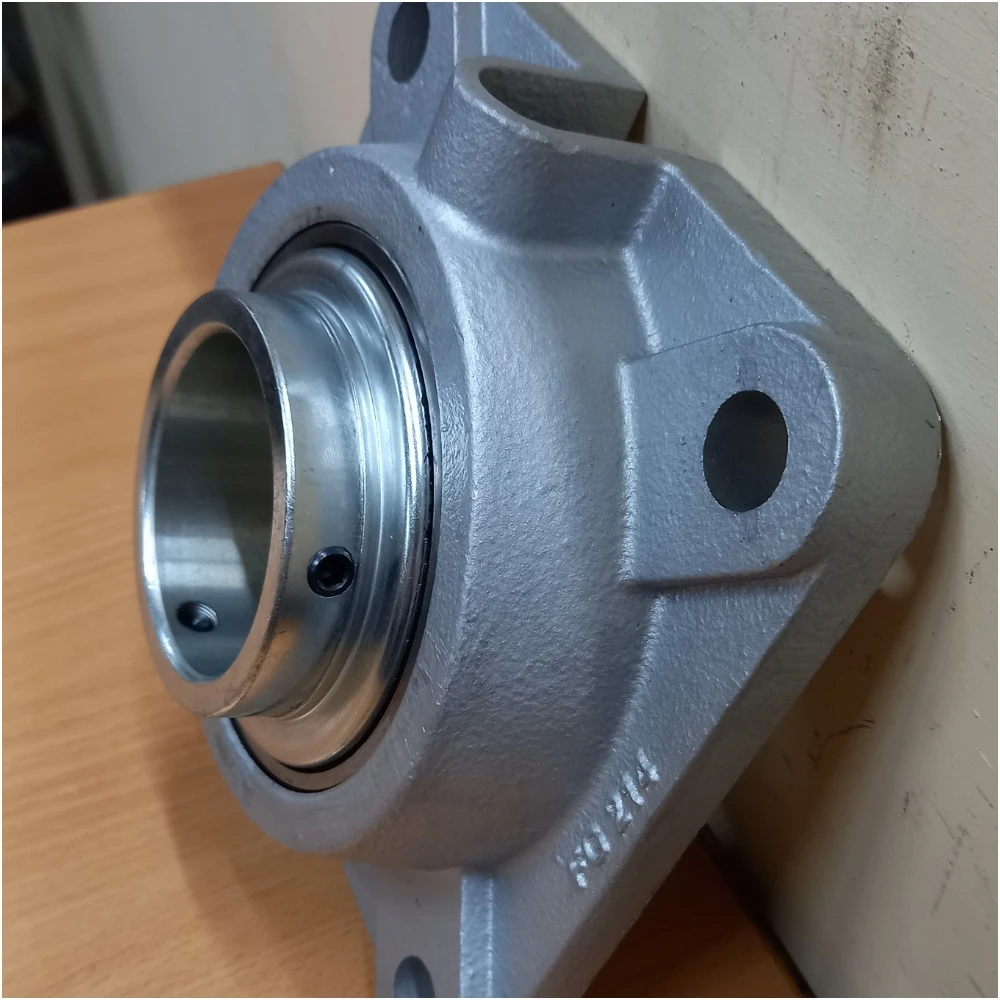

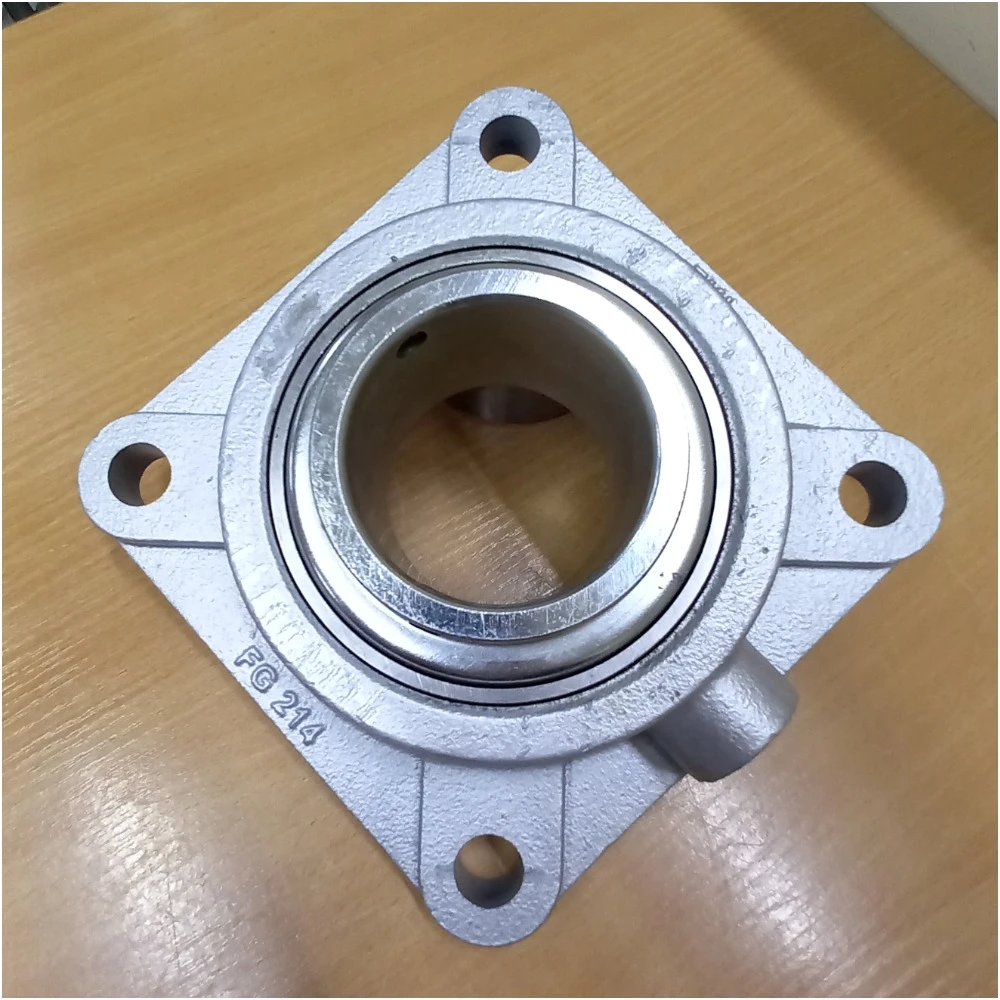

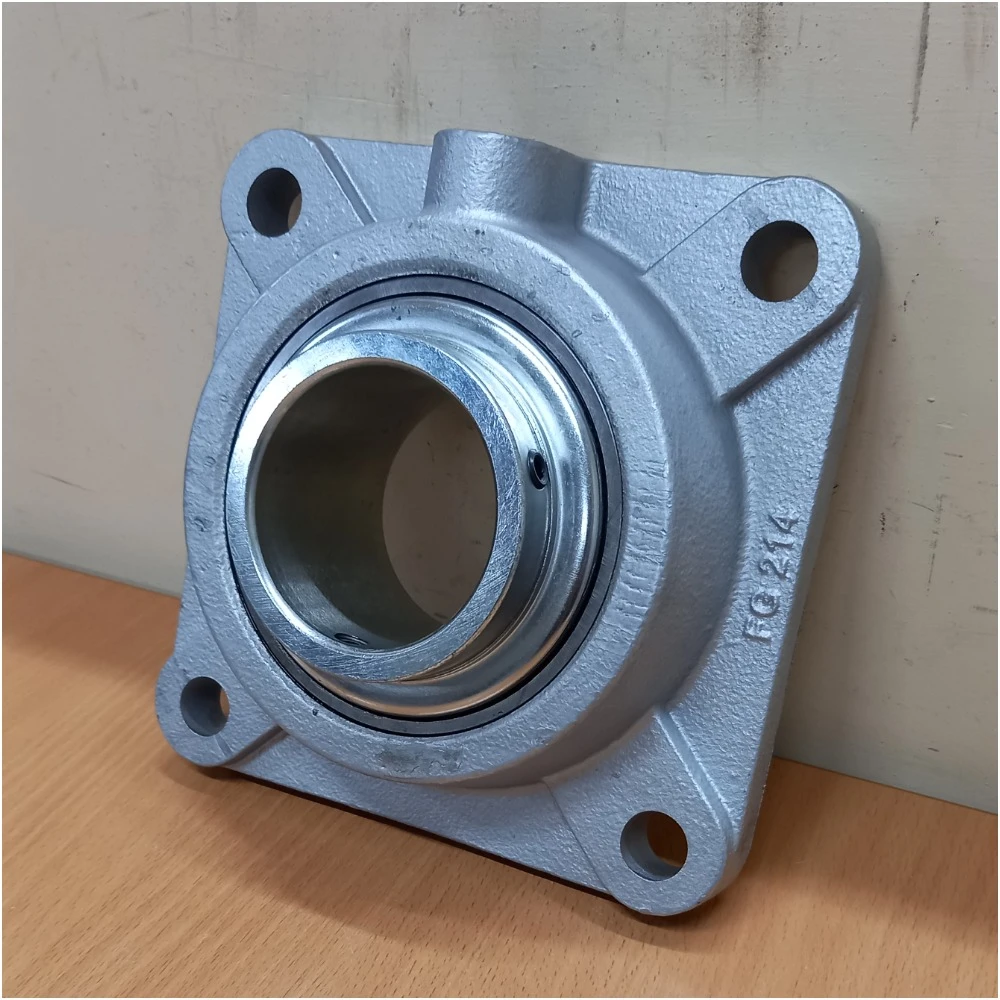

Bearing assembly ARMOR LEFG 214 TDT FKL, UCF 214 NSK, LE 214 TDT FKL, Dnepropetrovsk region.

We offer ARMOR LEFG bearing assembly 214 TDT FKL (Serbia).
Field of application - heavyshredders,chopping rollers, gear-ring rollers.
Analogue: UCF 214 NSK.

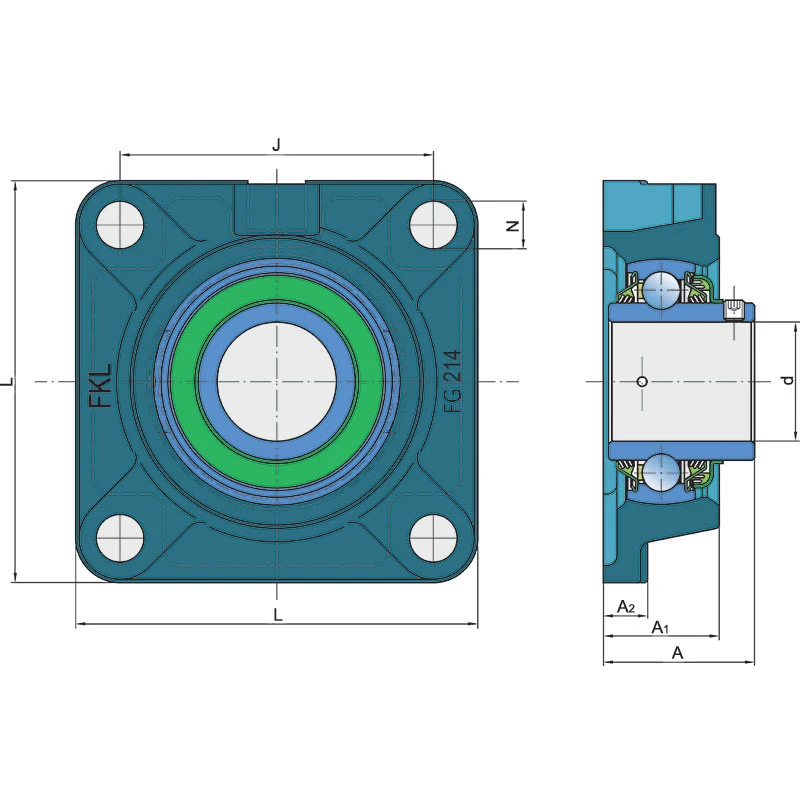

Bore Diameter - 70, Overall Body Width - 50.3, Body Flange Thickness - 21.3, Hole Center Distance - 152, Overall Length - 193, Bore Diameter - 19, Overall Width - 70.7, Body Type - FG, Weight - 6.2, Dynamic Load - 62.4, Static Load - 44. Seal Type - 6-edged.(//tractor-service.com)

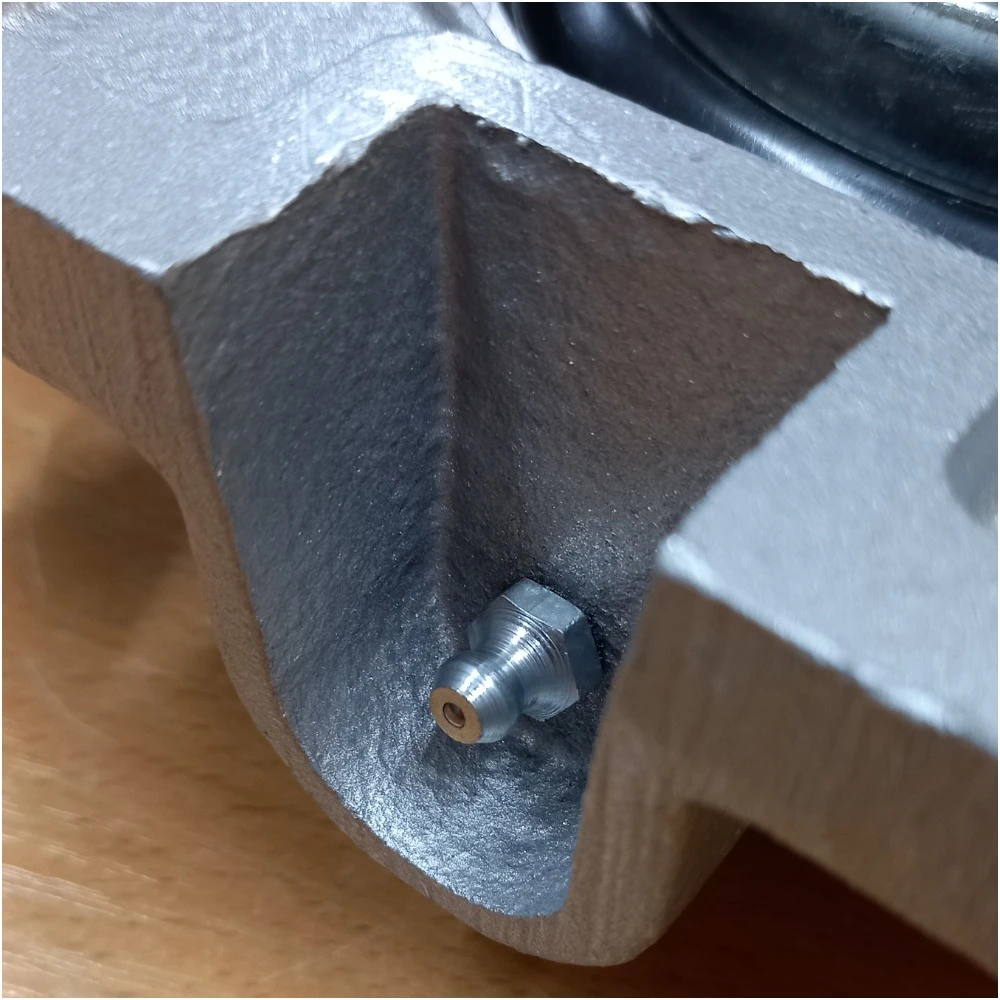

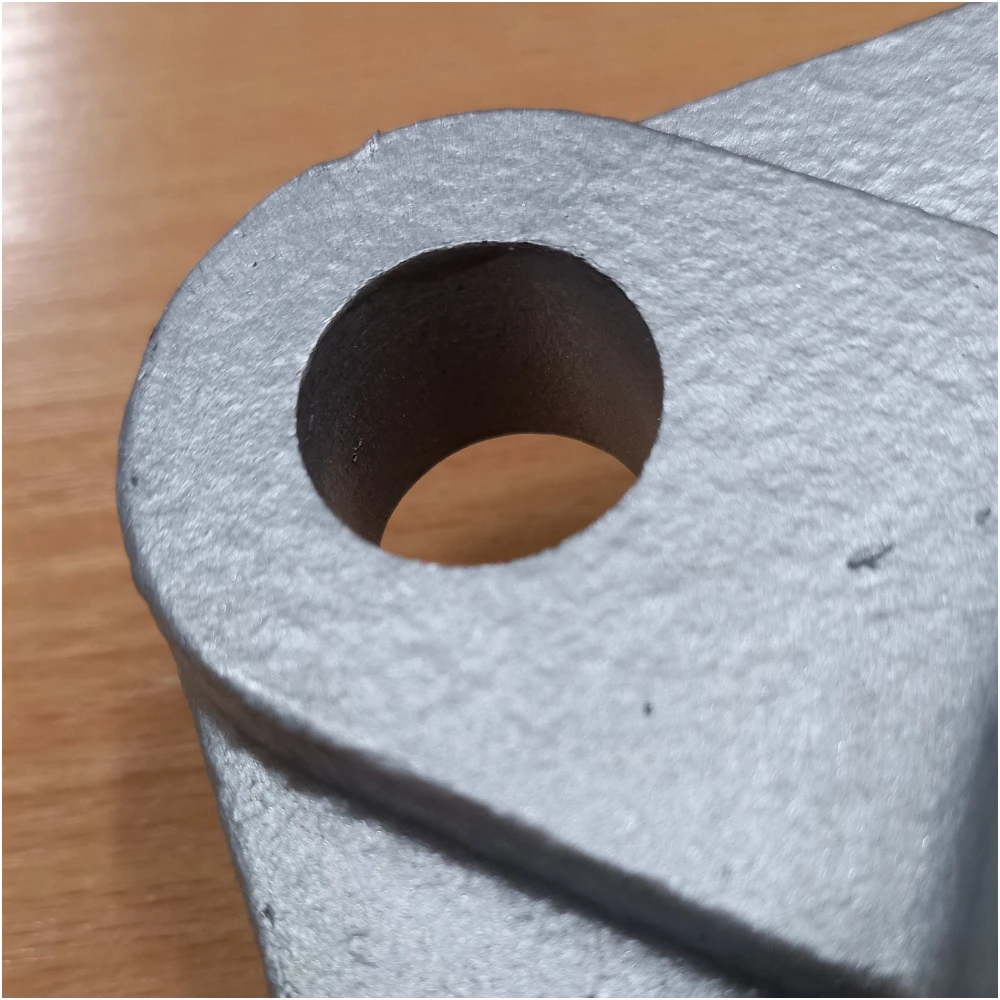

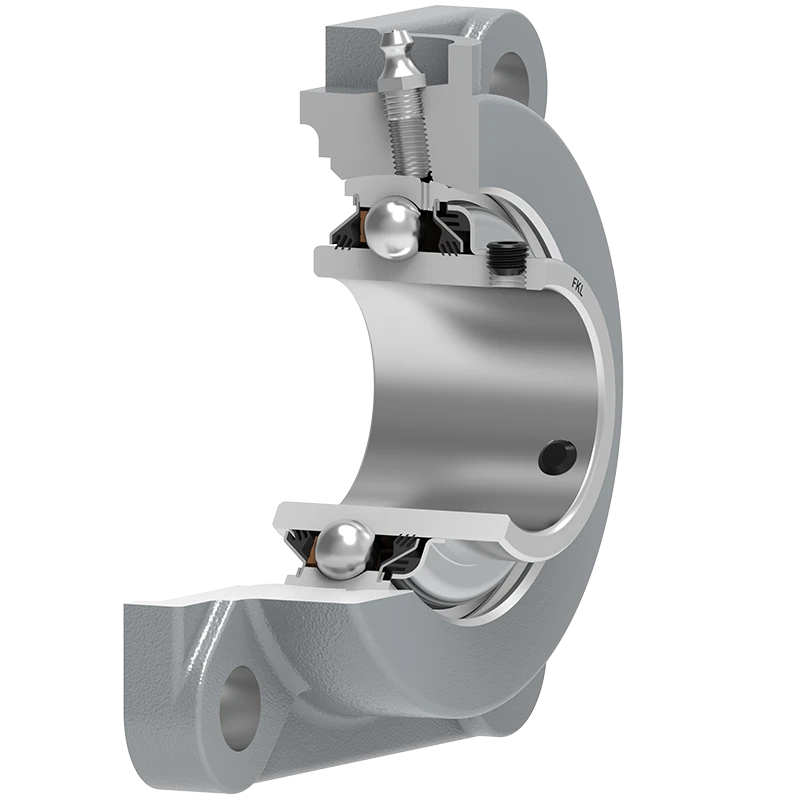

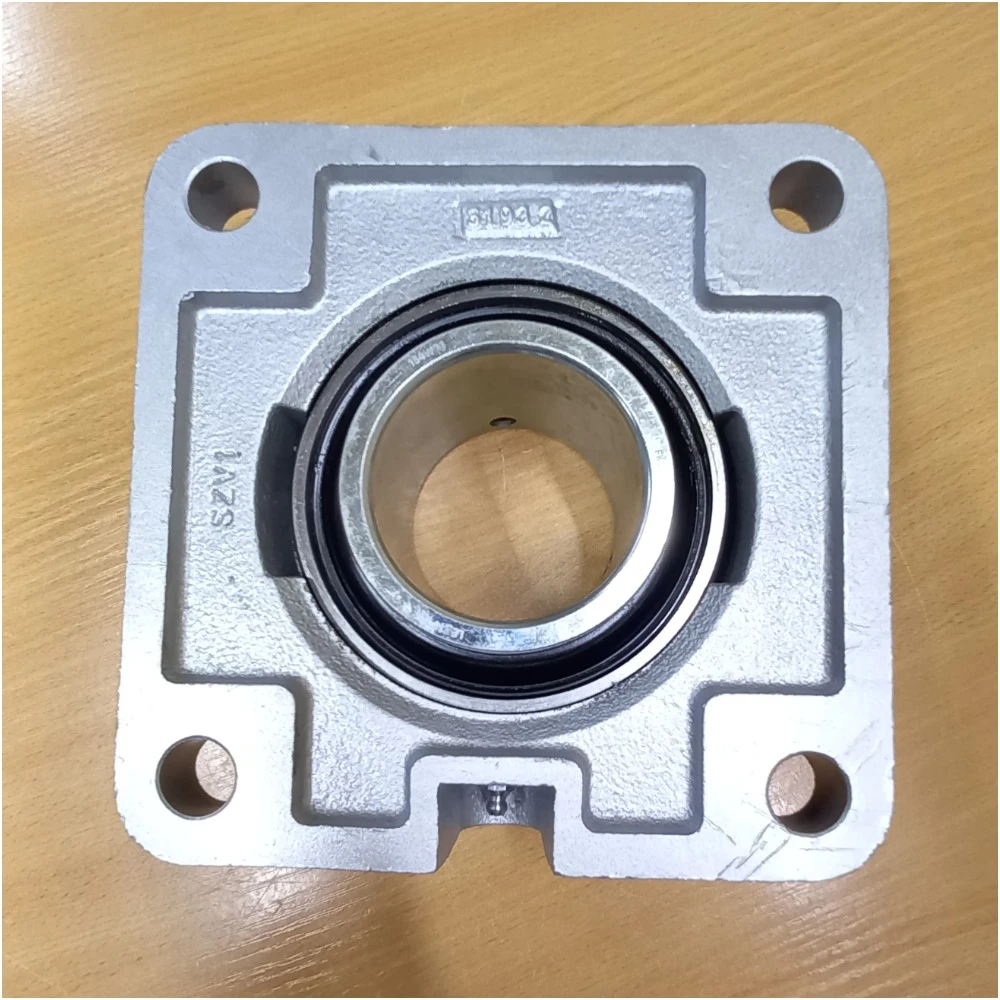

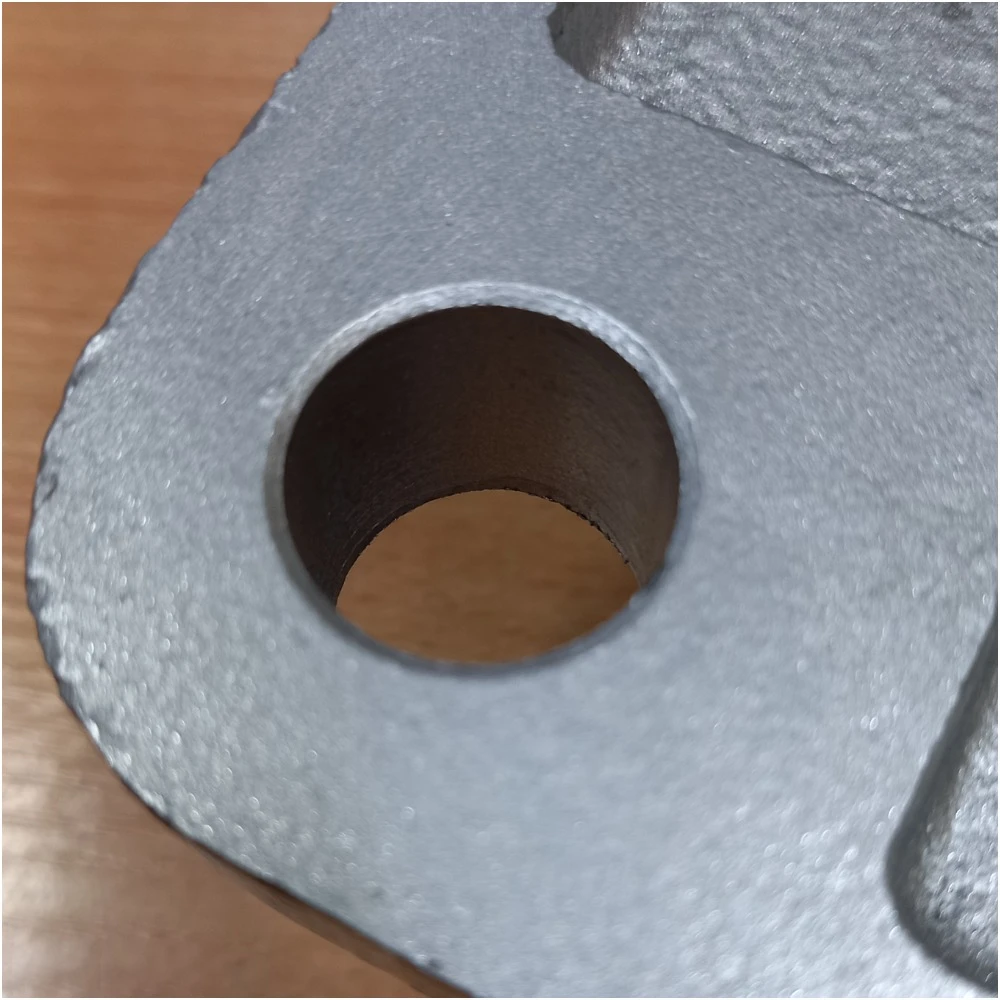

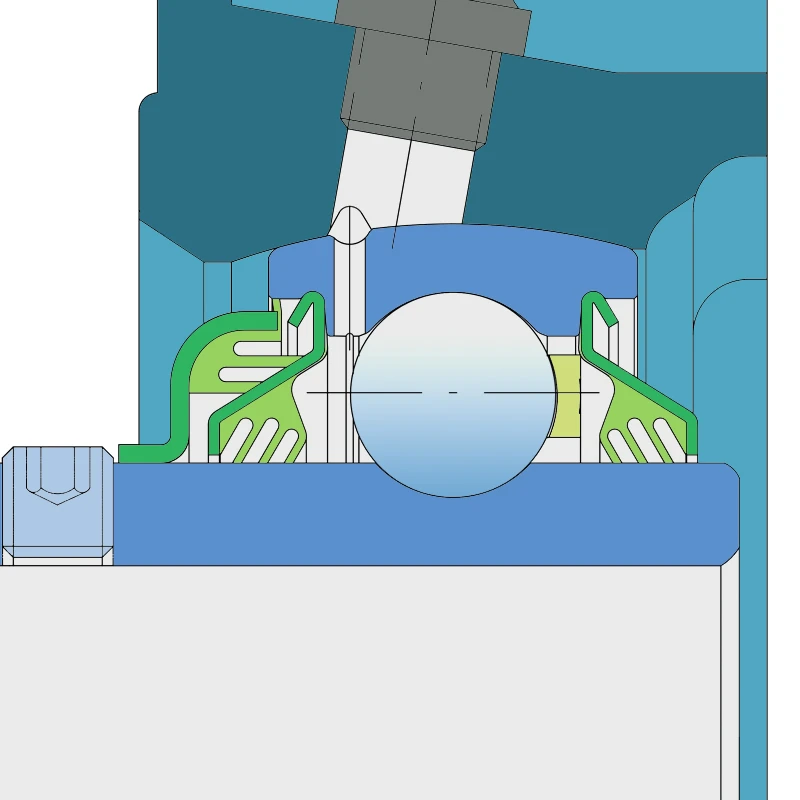

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects againstdust getting into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing — the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the locking pin of the outer ring prevents the bearing from rotating.

LEFG 214 TDT FKL bearing units are equipped with LE 214 TDT FKL bearings.

"Krasnianske JV Agromash" LLC is a business partner of "TVK "FKL Ukraine", which equips its own agricultural machinery with ARMOR LEFG 214 TDT FKL bearing units.
