Bearing assembly LEFG 206 TDT FKL, FYJ 30 TF SKF, UCF 206 NSK, LE 206 TDT FKL, Dnepropetrovsk region.

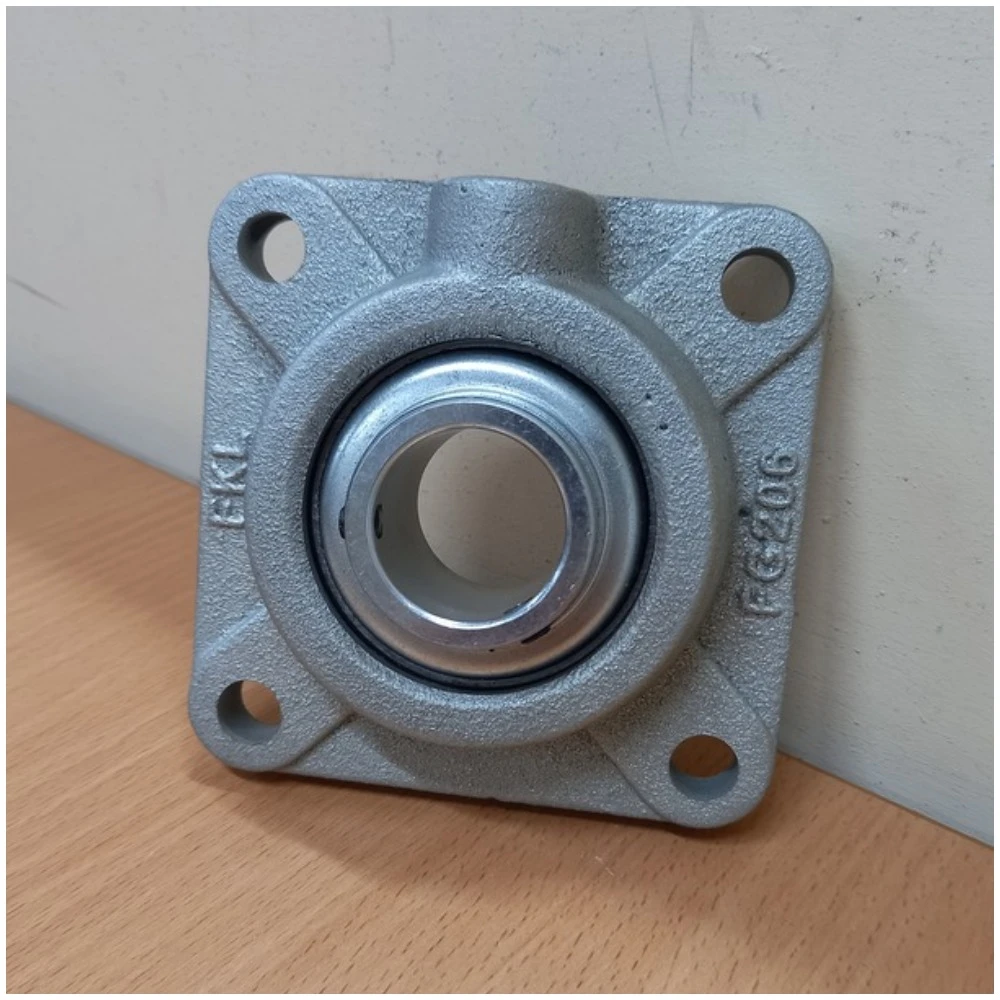

Offer bearing unit ARMOR LEFG 206 TDT FKL (Serbia).
Field of application — tillage equipment, rollingcats.

Bearing ID - 30, Overall Width - 40.2, Overall Housing Width - 31, Overall Length - 108, Hole Center Distance - 83, Weight - 1.2, Housing Edge Width - 13, Bore Diameter - 16, Dynamic Load - 19.5, Static Load - 11.3. Case type - FG. Sealing type – 6-edge.

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects against ingress ofdust into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the outer ring locking pin prevents the bearing from rotating.(//tractor-service.com)

Analogues: FYJ 30 TF SKF, UCF 206 NSK.

LEFG 206 TDT FKL bearing units are equipped with LE 206 TDT FKL bearings.

NVP "Bilotserkivmaz" LLC is a business partner of "TVK "FKL Ukraine", which equips its own agricultural machinery with bearing units LEFG 206 TDT FKL.
